Valve Category

DIAPHRAGM VALVE

PVDF Flange Type Diaphragm Valve

Features:: Excellent resistance to strong corrosion and suitability for high-purity media.

Applications:: Semiconductor and fine chemical industries.

Medium temperature℃:: 40℃~+150℃

View Technical Details

DIAPHRAGM VALVE

PVC-U Flange Type Diaphragm Valve

Features:: Cost-effective corrosion resistance.

Applications:: Water supply, environmental engineering, and chlor-alkali industry.

Medium temperature℃:: -5℃~+45℃

View Technical Details

DIAPHRAGM VALVE

PVC-C Flange Type Diaphragm Valve

Features:: Higher temperature resistance.

Applications:: Chemical industry, electrolysis, and chlor-alkali processes.

Medium temperature℃:: -20℃~+95℃

View Technical Details

DIAPHRAGM VALVE

PPH Flange Type Diaphragm Valve

Features:: Excellent resistance to acids and alkalis, and good temperature resistance.

Applications:: Chemical industry and water treatment.

Medium temperature℃:: -20℃~+110℃

View Technical Details

DIAPHRAGM VALVE

FRPP Flange Type Diaphragm Valve

Features:: High strength and corrosion resistance.

Applications:: Ultra-pure water, electronics, and pharmaceutical industries.

Medium temperature℃:: -20℃~+120℃

View Technical Details

DIAPHRAGM VALVE

Pneumatic Diaphragm Valve With Position Indicator

FACE to FACE length：: BS5156,DIN

Connection：: Flange/Thread

Structure：: Weir Type/Straight Through Type

View Technical Details

DIAPHRAGM VALVE

Pneumatic UPVC Diaphragm Valve With Limit Switch Box

Connection：: Flange/True Union/Socket

Structure：: Weir Type

Air Supply:: 6 bar

View Technical Details

DIAPHRAGM VALVE

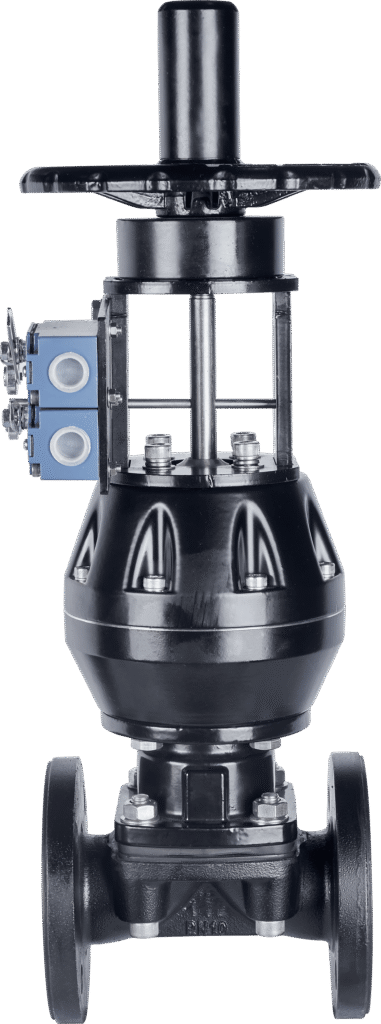

Pneumatic Diaphragm Valve With Handwheel

Structure：: Weri Type/Straight Through Type

Body Material：: Ductile Iron,Cast Iron,WCB,etc

Lining Material：: EDPM Rubber,Butyl Rubber,Hard Rubber,unlined,PFA/FEP

View Technical Details

DIAPHRAGM VALVE

Screwed Manual Diaphragm Valve Unlined

Applications:: Water and waste water,Organic sludge, Effluent treatment, Lime solutions, Gases (e.g. compressed air) Lubricating oil

ST Type Nominal Size:: DN25/40/50

WT Type Nominal Size:: DN15-DN80

View Technical Details

DIAPHRAGM VALVE

WCB Manual ST Diaphragm Valve Unlined

Suitable media:: Water and wastewater, organic sludge, wastewater treatment, lime solutions, and lubricating oil.

Nominal Size:: DN15-DN250

Face to Face:: BS, DIN

View Technical Details

DIAPHRAGM VALVE

WCB Manual ST Diaphragm Valve NBR Lined

The Features & Benefits of NBR Lined：: Excellent oil resistance, good abrasion resistance, good mechanical strength, and moderate corrosion resistance.

Suitable media:: Oily wastewater, industrial cooling water, dilute acids, dilute alkalis, and neutral salt solutions.

Nominal Size:: DN15-DN300

View Technical Details

DIAPHRAGM VALVE

WCB Manual ST Diaphragm Valve SR Lined

The Features & Benefits of SR Lined：: Excellent sealing performance, good elasticity, able to accommodate slight pipeline deformation, provides cushioning against particle impact, and is suitable for low-pressure systems.

Suitable media:: Media such as powders, abrasive slurries, clay, pulverized coal, dry fertilizers, and gypsum.

Nominal Size:: DN15-DN300

View Technical Details

Need Custom DIAPHRAGM VALVE Solutions?

Our engineering team specializes in OEM/ODM manufacturing for global B2B partners. Get customized valve solutions tailored to your specific industrial requirements.

Request Technical Catalog Contact Engineering Team
