Product Specifications

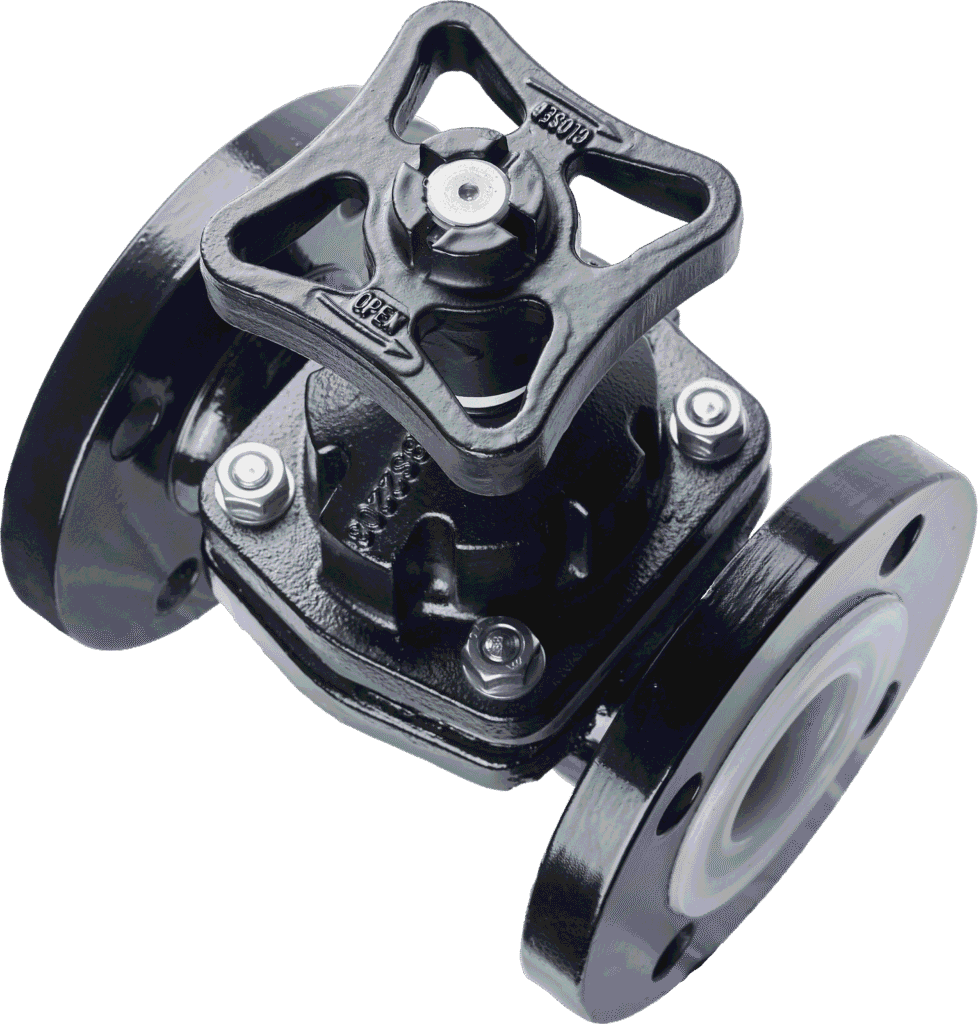

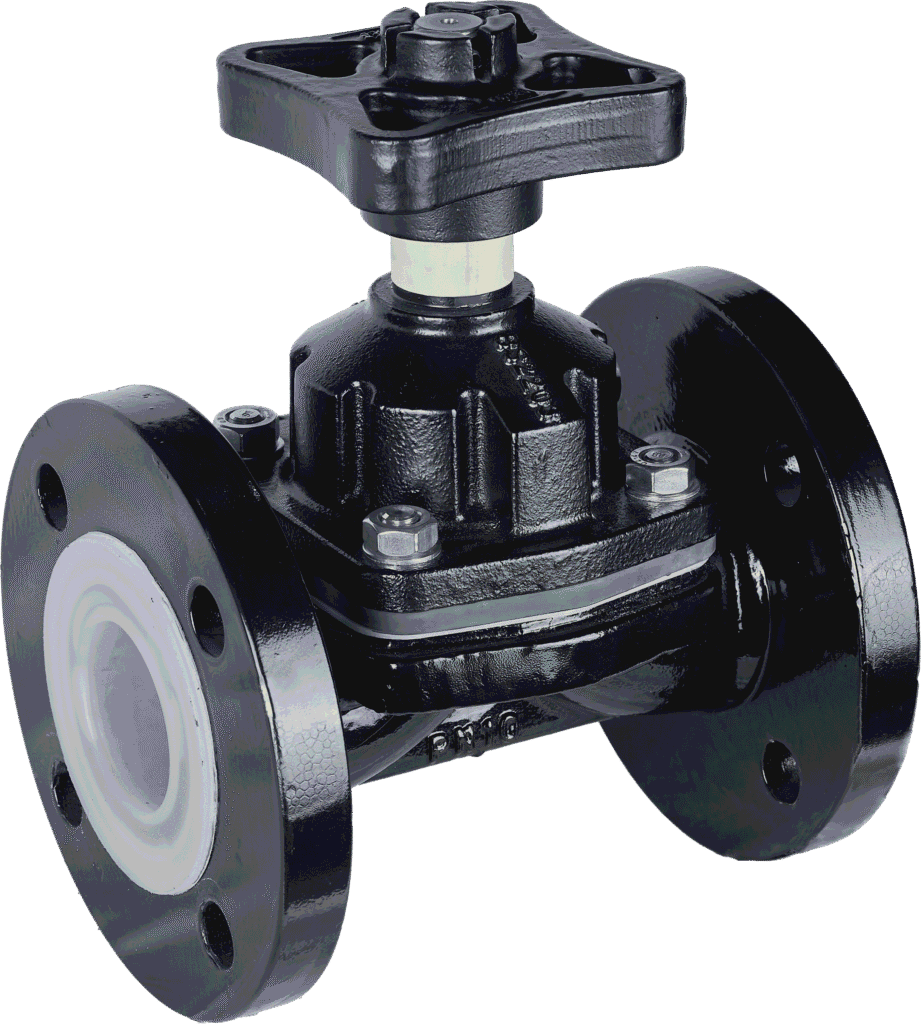

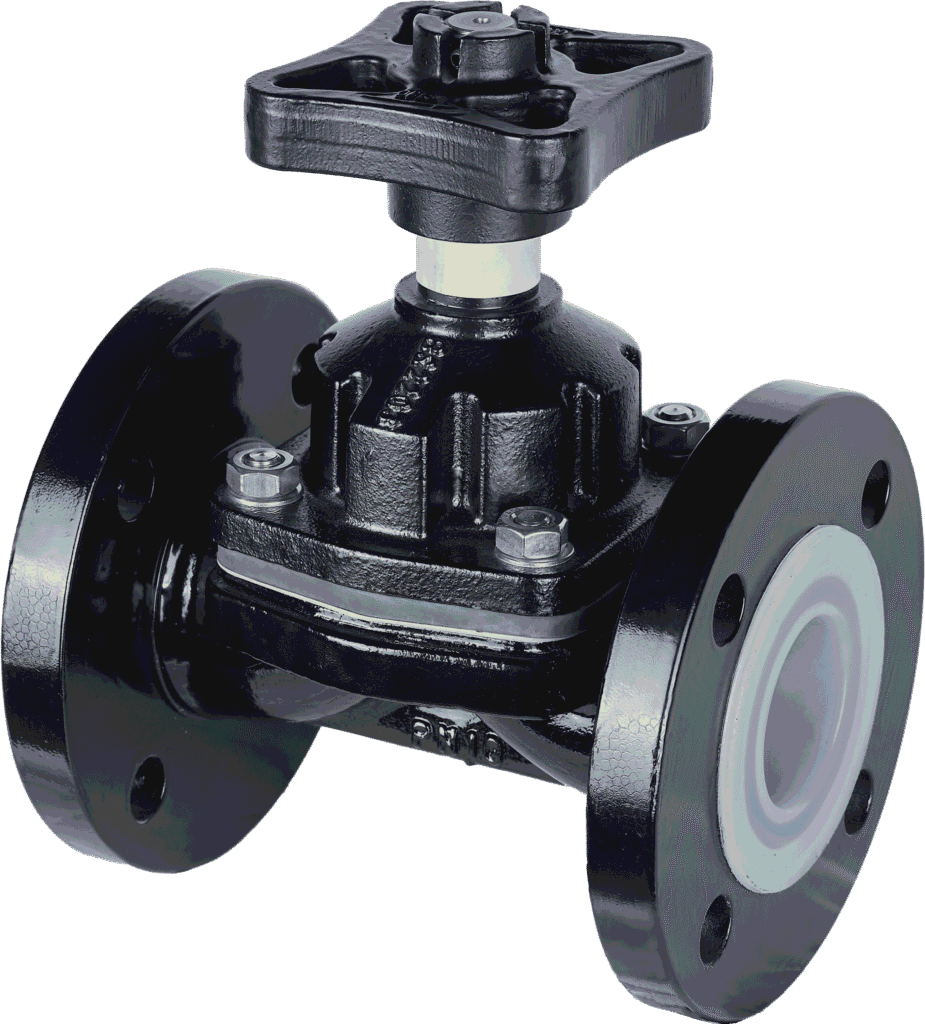

WCB Manual Weir Type Diaphragm Valve PFA Lined

Valve Type DIAPHRAGM VALVE

Operation Manual

Body WCB

Lining PFA Lined

Shape Weir Type

Request Technical Catalog

Product Overview

Weir Type Diaphragm Valves offer exceptional durability, reliability and control. The clean design completely isolates line media from the mechanical components of the valve.

The Features & Benefits of diaphragm valve design：
Bubble-tight shutoff (Class VI)
Cavity free design
Easy/low maintenance
In-line serviceable (top entry)
No stem seal leakage
Standard Position indicator

Technical Parameters

The Features & Benefits of PFA Lined： Excellent chemical corrosion resistance, outstanding high-temperature resistance, and superior permeability resistance.

Suitable media: Concentrated mineral acids, aromatic hydrocarbons, aliphatic hydrocarbons, and chlorinated solvents under high-temperature conditions.

Nominal Size: DN15-DN250

Face to Face: BS, DIN

Flange Drilling: ANSI#125/150, PN10/16, Table D/E, JIS

Pressure: Up to 16 Bar (Elastomer Diaphragm) *Max pressure varies across size range

Testing Standards： EN12266-1 2002(BS6755 Part 1)

Why Choose Our Valves?

ISO Certified Process
Mechanical Lining Technology
35-45 Day Delivery Cycle

Contact Engineering Team

For custom sizing and material options
