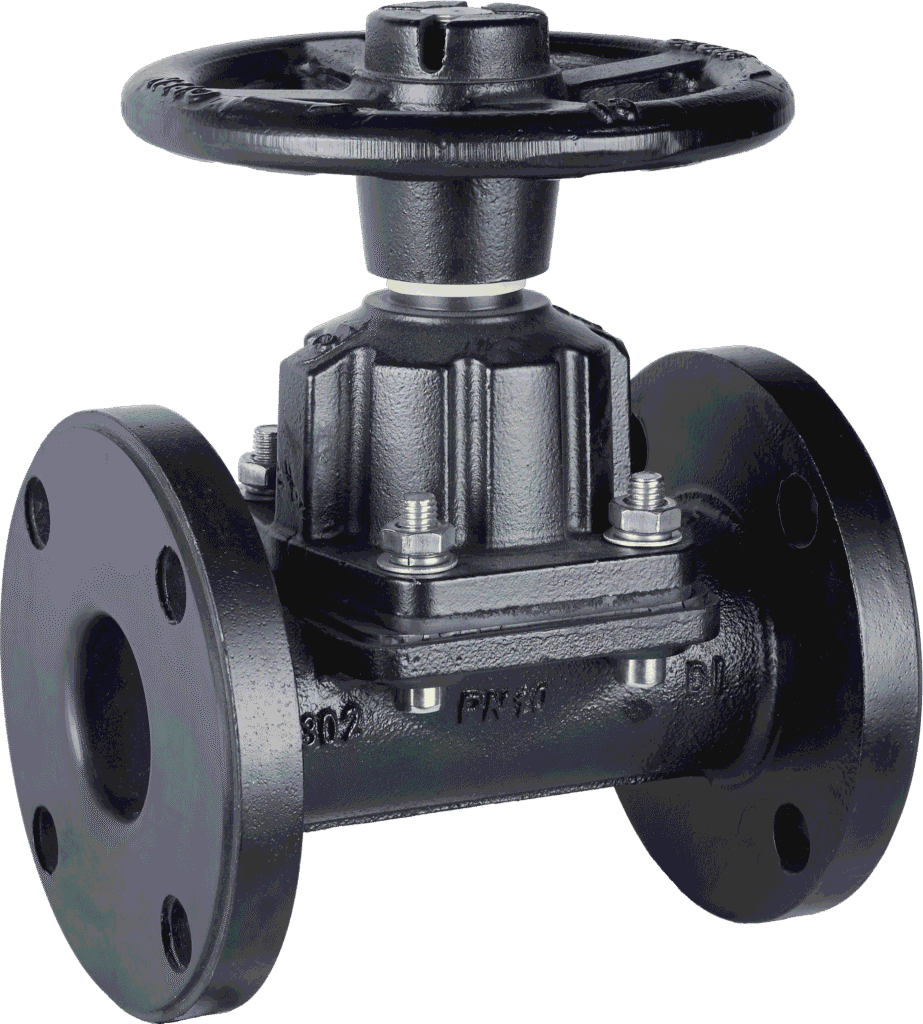

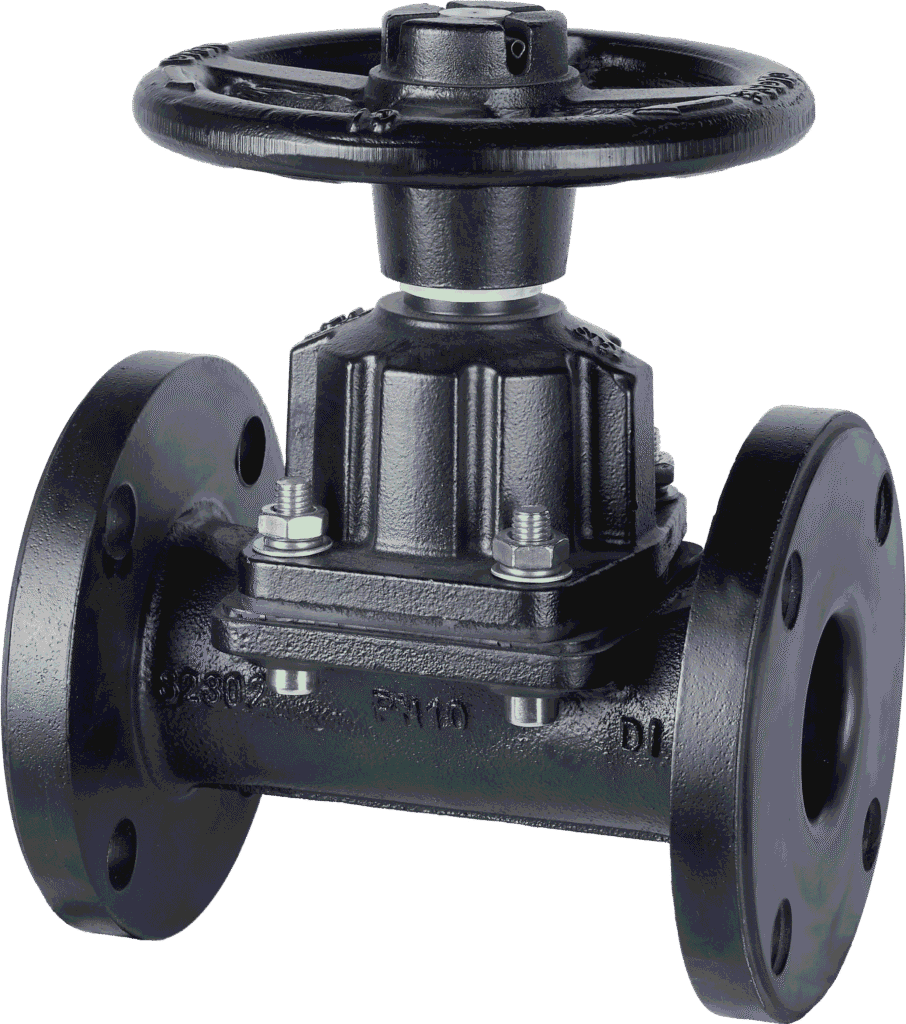

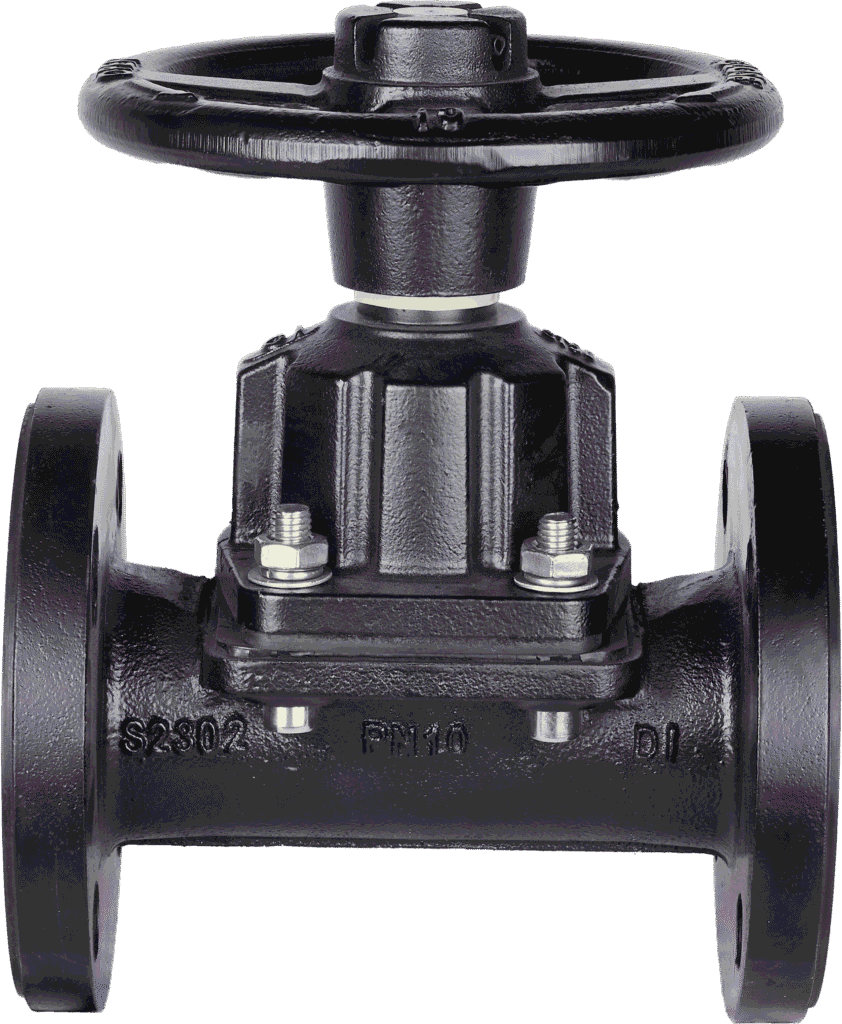

WCB Manual ST Diaphragm Valve Butyl Lined

Valve Type DIAPHRAGM VALVE
Operation Manual
Body WCB
Lining Butyl Lined
Shape STRAIGHT THROUGH TYPE
Request Technical Catalog

Product Overview

Straight Through Type Diaphragm offer exceptional durability, reliability and control. The clean design completely isolates line media from the mechanical components of the valve.

The Features & Benefits of diaphragm valve design：
Bubble-tight shutoff (Class VI)
Cavity free design
Easy/low maintenance
In-line serviceable (top entry)
No stem seal leakage
Standard Position indicator

Technical Parameters

The Features & Benefits of Butyl Lined： Acid resistance, chemical corrosion resistance, extremely low gas permeability, good abrasion resistance, and relatively good heat resistance.
Suitable media: sulfuric acid, hydrochloric acid, phosphoric acid, organic acids, chemical agents, slurries and particle-containing media, mineral slurry, lime slurry, and corrosive liquids containing solid particles.
Nominal Size: DN15-DN300
Face to Face: BS, DIN
Flange Drilling: ANSI#125/150, PN10/16, Table D/E, JIS
Pressure: Up to 16 Bar (Elastomer Diaphragm)；Up to 10 Bar (PTFE Diaphragm) Max pressure varies across size range
Testing Standards： EN12266-1 2002(BS6755 Part 1)

Why Choose Our Valves?

  • ISO Certified Process
  • Mechanical Lining Technology
  • 35-45 Day Delivery Cycle
Contact Engineering Team

For custom sizing and material options
