Product Specifications

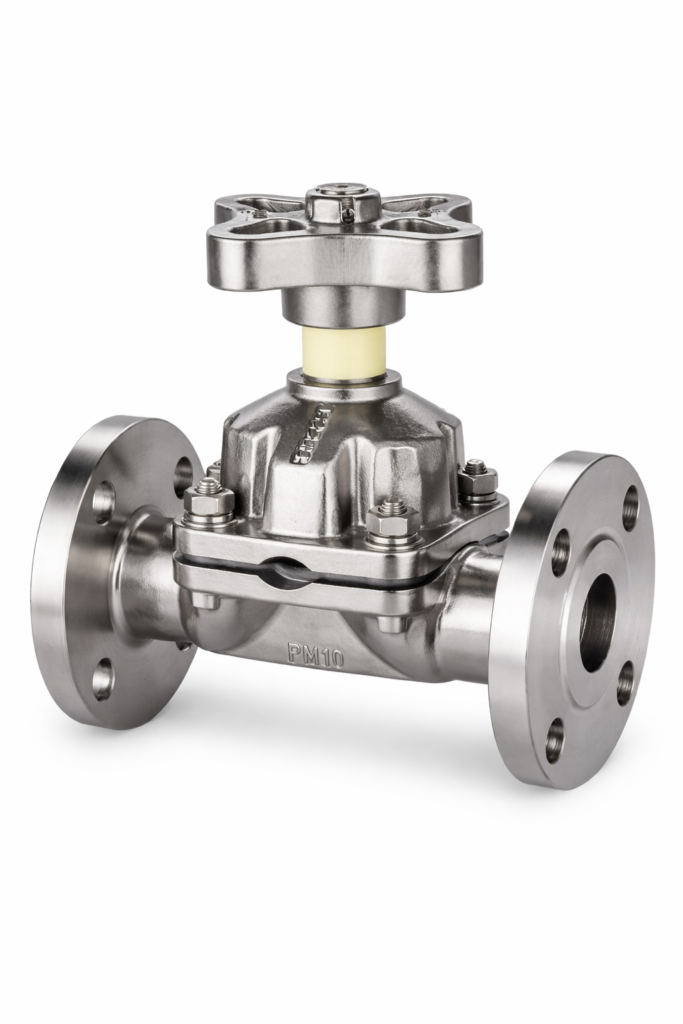

SS Manual Weir Type Diaphragm Valve Unlined

Valve Type DIAPHRAGM VALVE
Operation Manual
Body Stainless Steel
Lining Unlined
Shape Weir Type
Request Technical Catalog

Product Overview

Weir Type Diaphragm Valves offer exceptional durability, reliability and control. The clean design completely isolates line media from the mechanical components of the valve.

The Features & Benefits of diaphragm valve design：
Bubble-tight shutoff (Class VI)
Cavity free design
Easy/low maintenance
In-line serviceable (top entry)
No stem seal leakage
Standard Position indicator

Technical Parameters

Applications: Water and waste water,Organic sludge, Effluent treatment, Lime solutions, Gases (e.g. compressed air) Lubricating oil
Nominal Size: DN15-DN350
Face to Face: BS, DIN
Flange Drilling: ANSI#125/150, PN10/16, Table D/E, JIS
Pressure: Up to 16 Bar (Elastomer Diaphragm); Up to 10 Bar (PTFE Diaphragm) Max pressure varies across size range
Testing Standards： EN12266-1 2002(BS6755 Part 1)

Why Choose Our Valves?

  • ISO Certified Process
  • Mechanical Lining Technology
  • 35-45 Day Delivery Cycle
Contact Engineering Team

For custom sizing and material options
