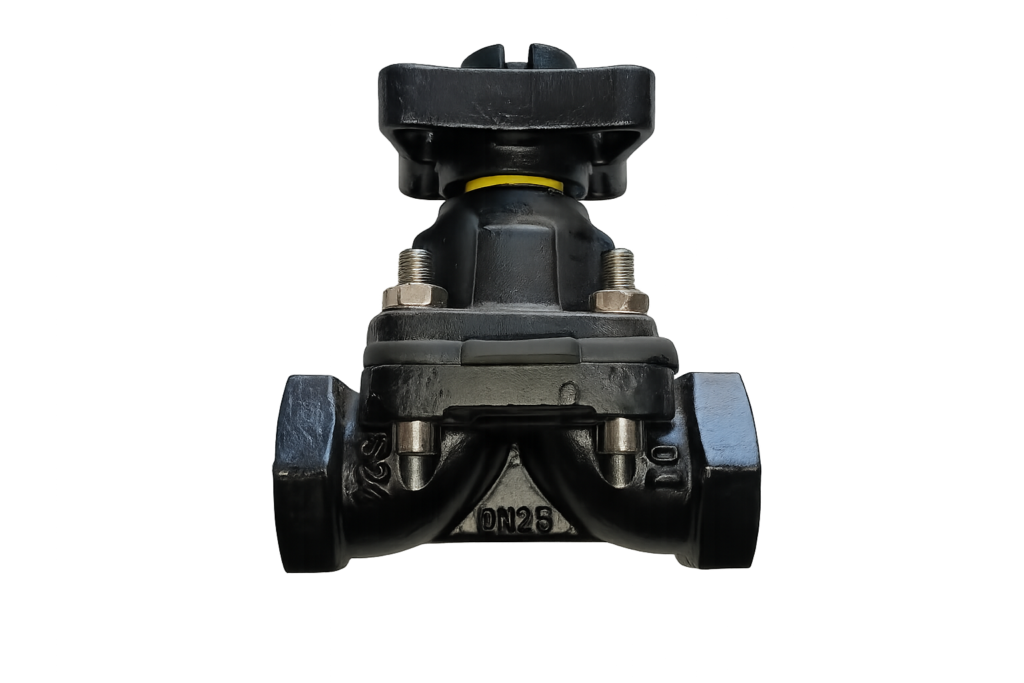

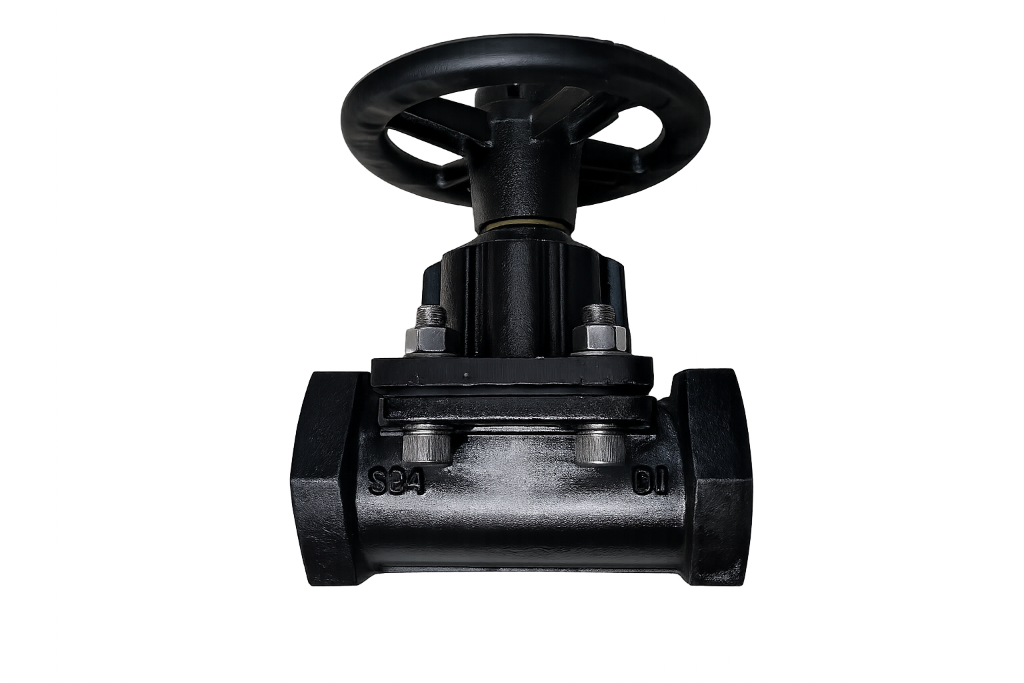

Screwed Manual Diaphragm Valve Unlined

Valve Type DIAPHRAGM VALVE

Operation Manual

Body DI/CI

Lining Unlined

Shape SCREWED TYPE

Request Technical Catalog

Product Overview

Screwed Manual Diaphragm Valves offer exceptional durability, reliability and control. The clean design completely isolates line media from the mechanical components of the valve.

The Features & Benefits of diaphragm valve design：
Bubble-tight shutoff (Class VI)
Cavity free design
Easy/low maintenance
In-line serviceable (top entry)
No stem seal leakage
Standard Position indicator

Technical Parameters

Applications: Water and waste water,Organic sludge, Effluent treatment, Lime solutions, Gases (e.g. compressed air) Lubricating oil

ST Type Nominal Size: DN25/40/50

WT Type Nominal Size: DN15-DN80

Face to Face: Manufacturer’s Standard

Flange Drilling: ANSI B2.1 NPT, AS1722.1 Part1 BSPP

Pressure: Up to 16 Bar (Elastomer Diaphragm); Up to 10 Bar (PTFE Diaphragm) Max pressure varies across size range

Testing Standards： EN12266-1 2002(BS6755 Part 1)

Why Choose Our Valves?

ISO Certified Process
Mechanical Lining Technology
35-45 Day Delivery Cycle

Contact Engineering Team

For custom sizing and material options
