Pneumatic UPVC Diaphragm Valve with Limit switch box Connection: True Union, Flange Working Pressure: 6bar Material: The sealing principle of plastic diaphragm valve is to rely on the downward movement of the operating mechanism pressure diaphragm or diaphragm combination.
Product Specifications

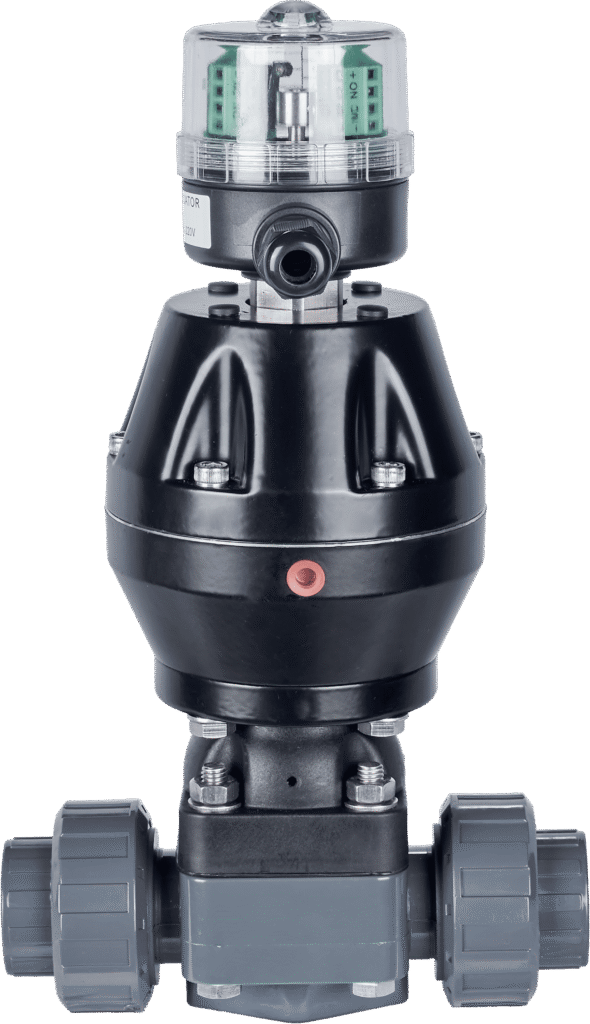

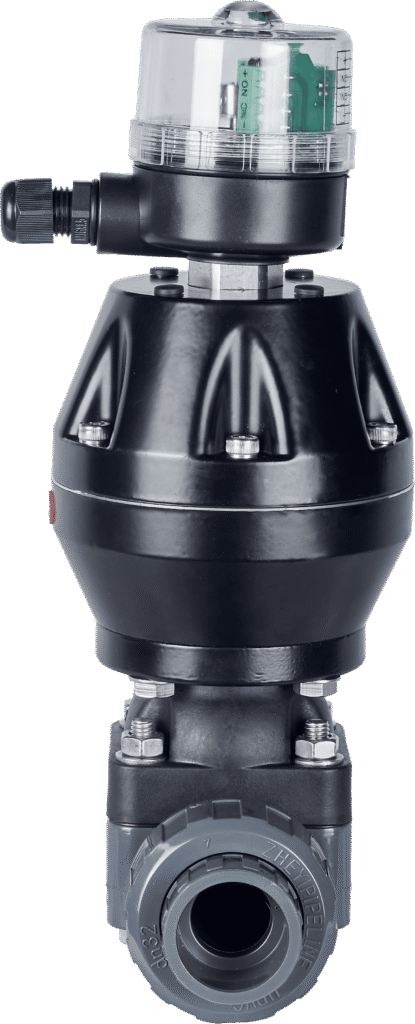

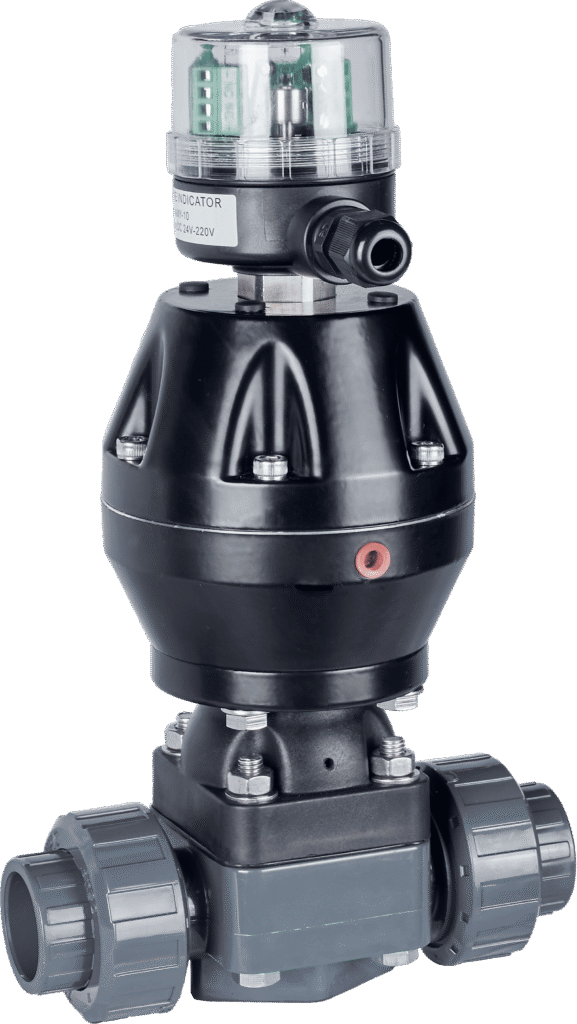

Pneumatic UPVC Diaphragm Valve With Limit Switch Box
Valve Type
DIAPHRAGM VALVE
Operation
Pneumatic with Limit switch box
Body
PVC-C
Shape
Weir Type
Product Overview
Technical Parameters
Connection：
Flange/True Union/Socket
Structure：
Weir Type
Air Supply:
6 bar
Body Material：
Plastic,UPVC/CPVC,PPH,etc
Diaphram Material ：
EPDM/PTFE+EPDM
Working Temperature：
-20 DEGREE C~80 DEGREE C/-20 DEGREE C~120DEGREE C
Size Available：
DN15-DN100
Actuator Material：
Aluminium Alloy
Actuator type：
Single acting(spring return,normally open and normally closed), Double acting
Actuator accessories：
Solenoid valve, limit switch box, air regulator, positioner, handwheel
Package：
Wooden Box with Bubble
Why Choose Our Valves?
- ISO Certified Process
- Mechanical Lining Technology
- 35-45 Day Delivery Cycle
Contact Engineering Team
For custom sizing and material options
