Product Specifications

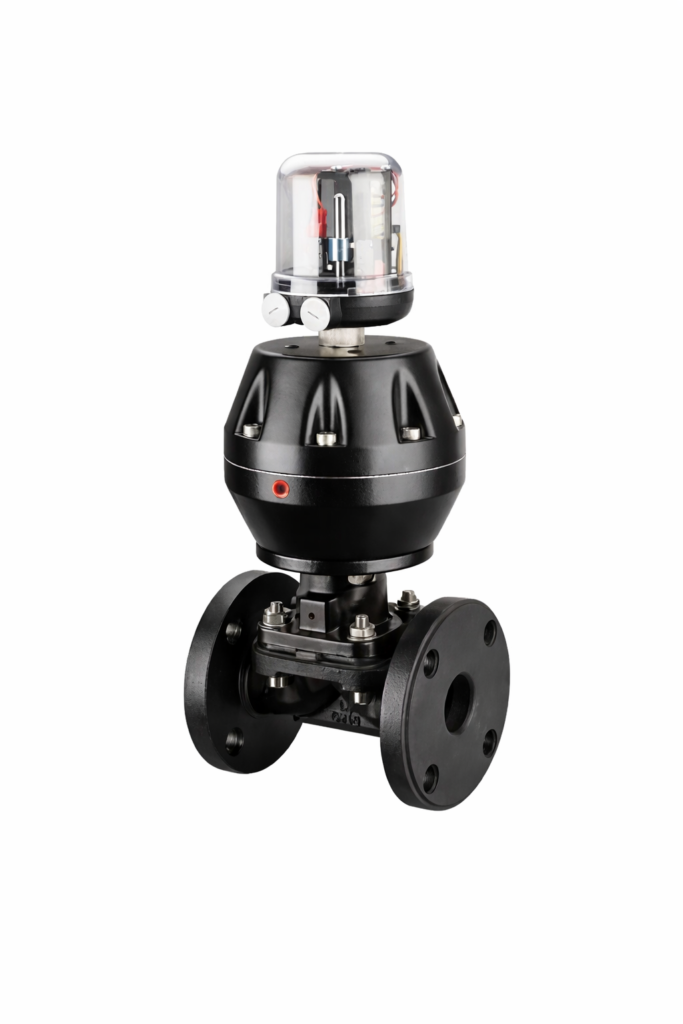

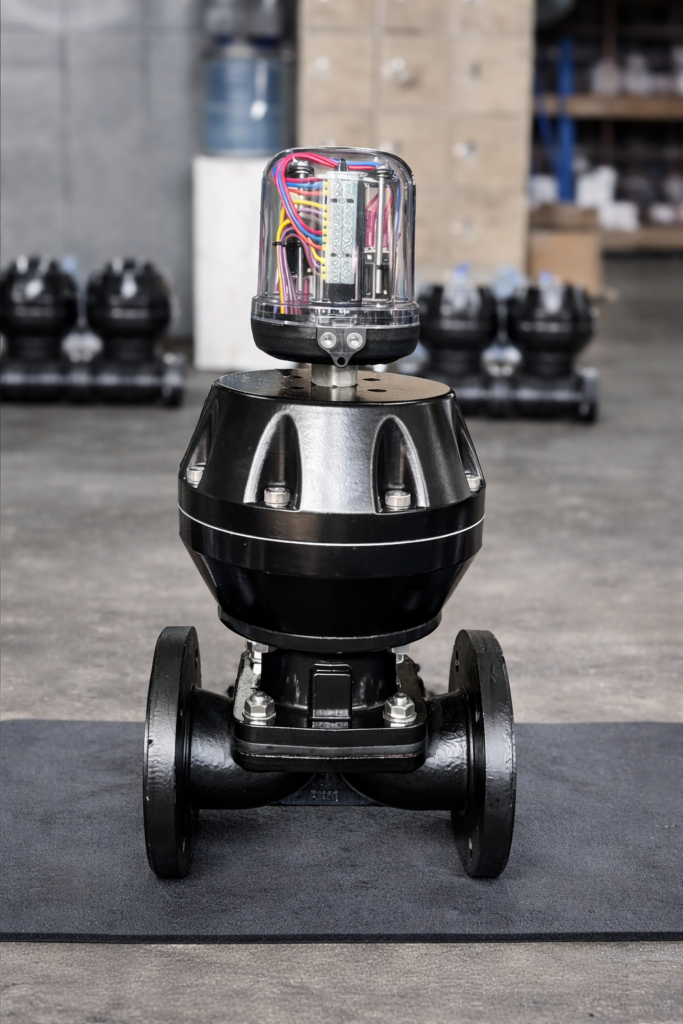

Pneumatic Diaphragm Valve With Position Indicator

Valve Type DIAPHRAGM VALVE
Operation Pneumatic with Position Indicator
Request Technical Catalog

Product Overview

Pneumatic Diaphragm Valve With Position Indicator offer exceptional durability, reliability and control. The clean design completely isolates line media from the mechanical components of the valve.

The Features & Benefits of diaphragm valve design：
Bubble-tight shutoff (Class VI)
Cavity free design
Easy/low maintenance
In-line serviceable (top entry)
No stem seal leakage
Standard Position indicator

Technical Parameters

FACE to FACE length： BS5156,DIN
Connection： Flange/Thread
Structure： Weir Type/Straight Through Type
Pressure: PN10/150LB
Air Supply： 6 bar
Body Material： Ductile Iron,Cast Iron,WCB,etc
Lining Material： EDPM Rubber,Butyl Rubber,Hard Rubber,unlined,PFA/FEP
Diaphram Material ： EPDM/PTFE+EPDM
Working Temperature： -20 DEGREE C~80 DEGREE C/-20 DEGREE C~120DEGREE C
Size Available： DN15-DN300
Actuator Material： Aluminium Alloy
Actuator type: Single acting(spring return,normally open and normally closed), Double acting
Actuator accessories： Solenoid valve, limit switch box, air regulator, positioner, handwheel
Package： Wooden Box with Bubble

Why Choose Our Valves?

  • ISO Certified Process
  • Mechanical Lining Technology
  • 35-45 Day Delivery Cycle
Contact Engineering Team

For custom sizing and material options
