Product Specifications

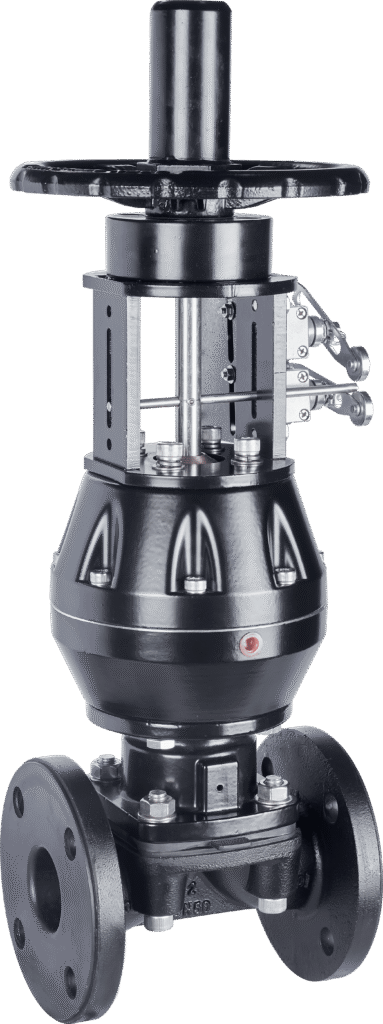

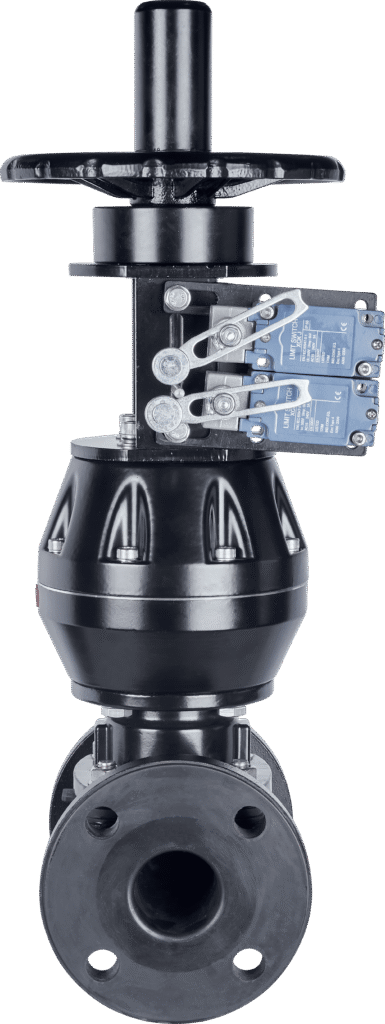

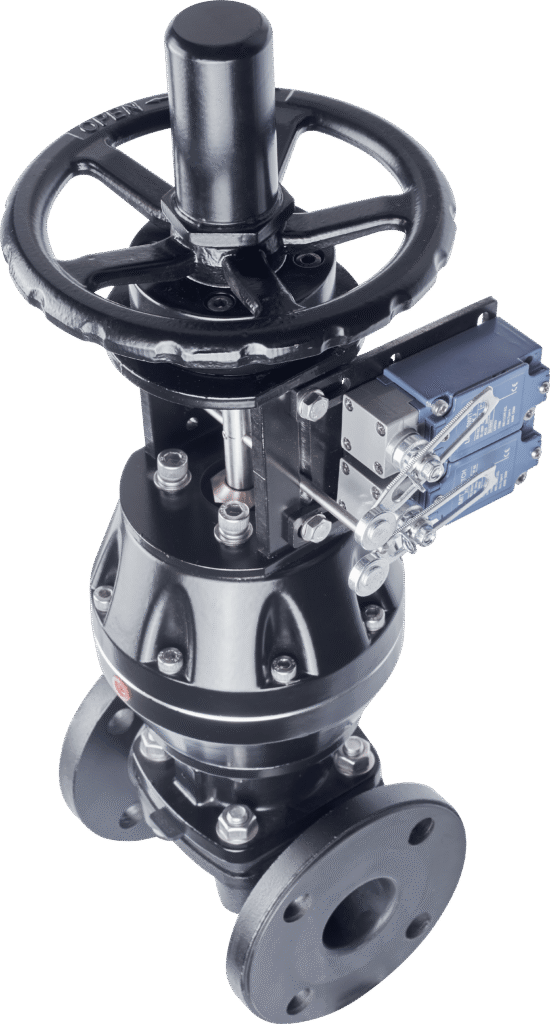

Pneumatic Diaphragm Valve With Handwheel

Valve Type DIAPHRAGM VALVE
Operation Pneumatic with Handwheel
Request Technical Catalog

Product Overview

Pneumatic Diaphragm Valve with Handwheel  equipped with handwheel can be used to control valve opening and closing in emergency situations.

This pneumatic diaphragm valve is equipped with a handwheel for manual operation during commissioning or air supply failure. It is widely used in oil, chemical, HVAC, water treatment, fire protection, and general industrial applications where flow control and leakage prevention are required.

Technical Parameters

Structure： Weri Type/Straight Through Type
Body Material： Ductile Iron,Cast Iron,WCB,etc
Lining Material： EDPM Rubber,Butyl Rubber,Hard Rubber,unlined,PFA/FEP
Diaphram Material EPDM/PTFE+EPDM
FACE to FACE length： BS5156,DIN
Working Temperature： -20 DEGREE C~80 DEGREE C/-20 DEGREE C~120DEGREE C
Size Available： DN15-DN300
Actuator Material： Aluminium
Actuator type： Single acting(spring return,normally open and normally closed), Double acting
Actuator accessories： Solenoid valve, limit switch box, air regulator, positioner, handwheel
Package： Wooden Box with Bubble

Why Choose Our Valves?

  • ISO Certified Process
  • Mechanical Lining Technology
  • 35-45 Day Delivery Cycle
Contact Engineering Team

For custom sizing and material options
