Product Specifications

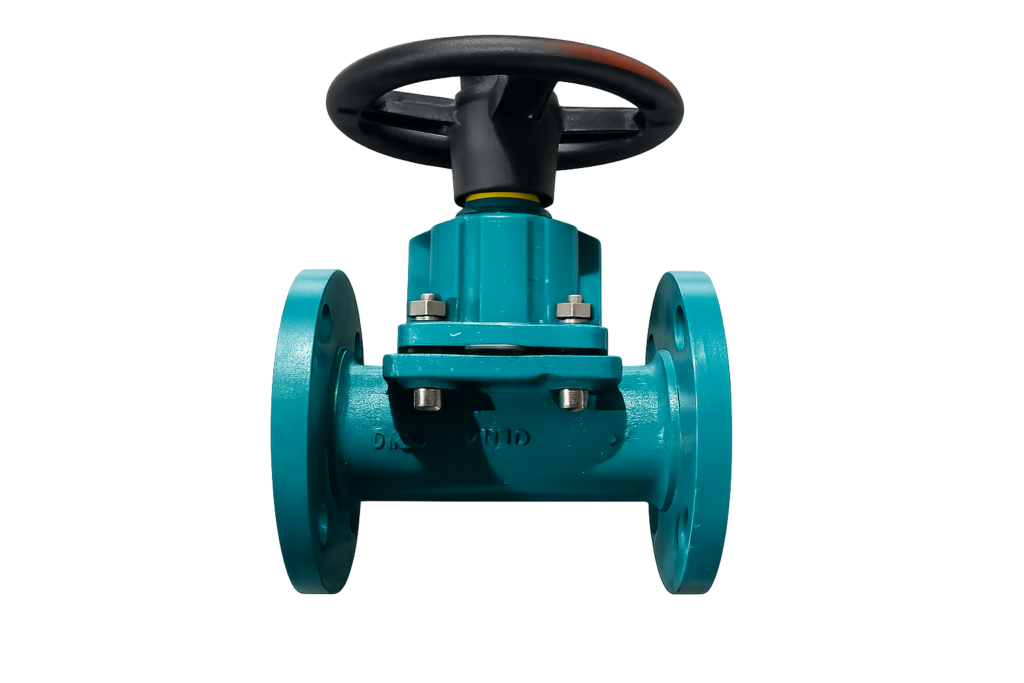

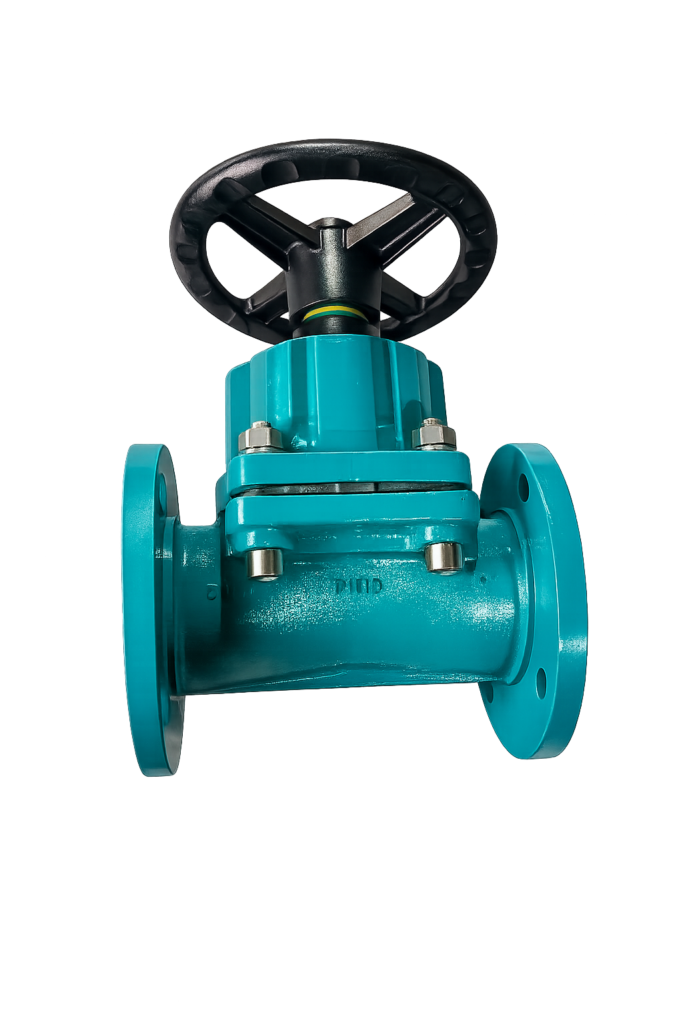

DI/CI Manual Weir Type Diaphragm Valve Unlined

Valve Type DIAPHRAGM VALVE
Operation Manual
Body DI/CI
Lining Unlined
Shape Weir Type
Request Technical Catalog

Product Overview

Weir Type Diaphragm Valves offer exceptional durability, reliability and control. The clean design completely isolates line media from the mechanical components of the valve.

The Features & Benefits of diaphragm valve design：
Bubble-tight shutoff (Class VI)
Cavity free design
Easy/low maintenance
In-line serviceable (top entry)
No stem seal leakage
Standard Position indicator

Technical Parameters

Suitable media: Water and wastewater, organic sludge, wastewater treatment, lime solutions, and lubricating oil.
Nominal Size: DN15-DN250
Face to Face: BS, DIN
Flange Drilling: ANSI#125/150, PN10/16, Table D/E, JIS
Pressure: Up to 16 Bar (Elastomer Diaphragm) *Max pressure varies across size range
Testing Standards： EN12266-1 2002(BS6755 Part 1)

Why Choose Our Valves?

  • ISO Certified Process
  • Mechanical Lining Technology
  • 35-45 Day Delivery Cycle
Contact Engineering Team

For custom sizing and material options
