Product Specifications

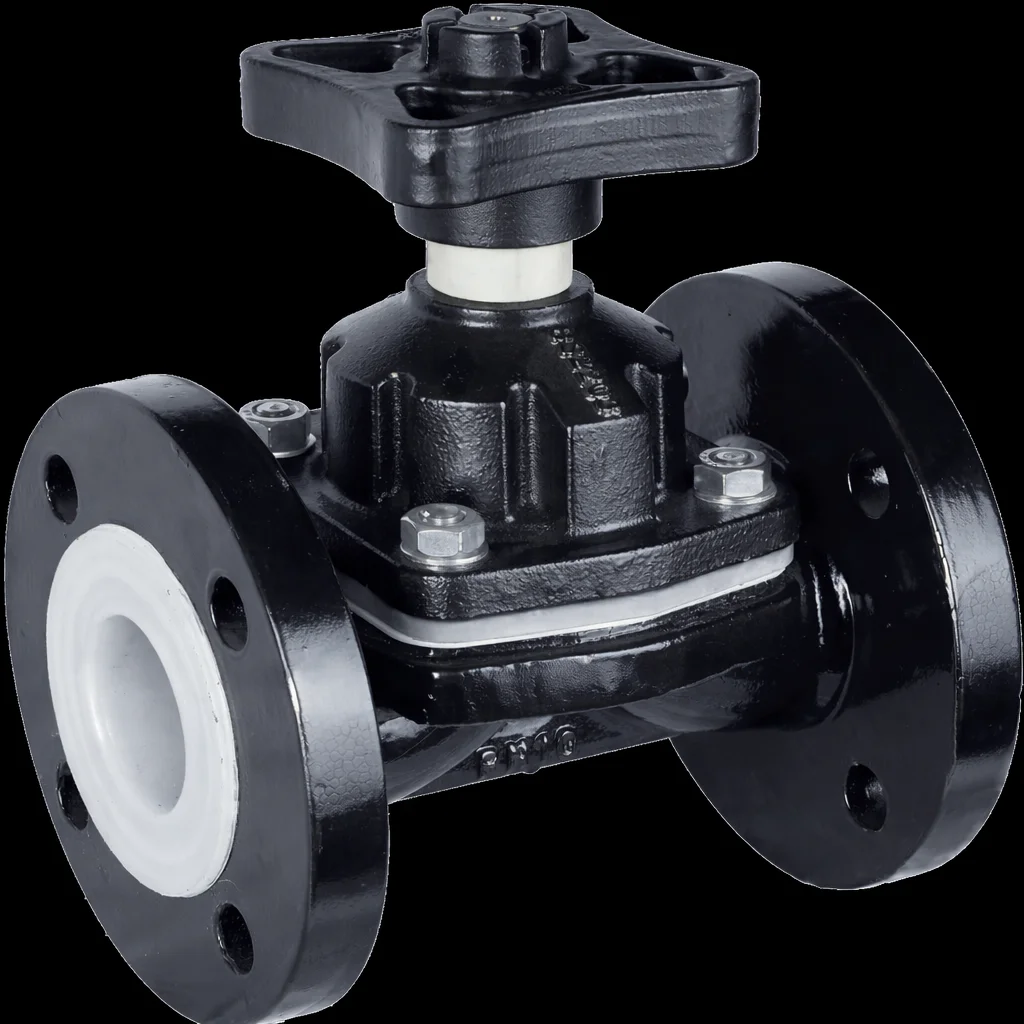

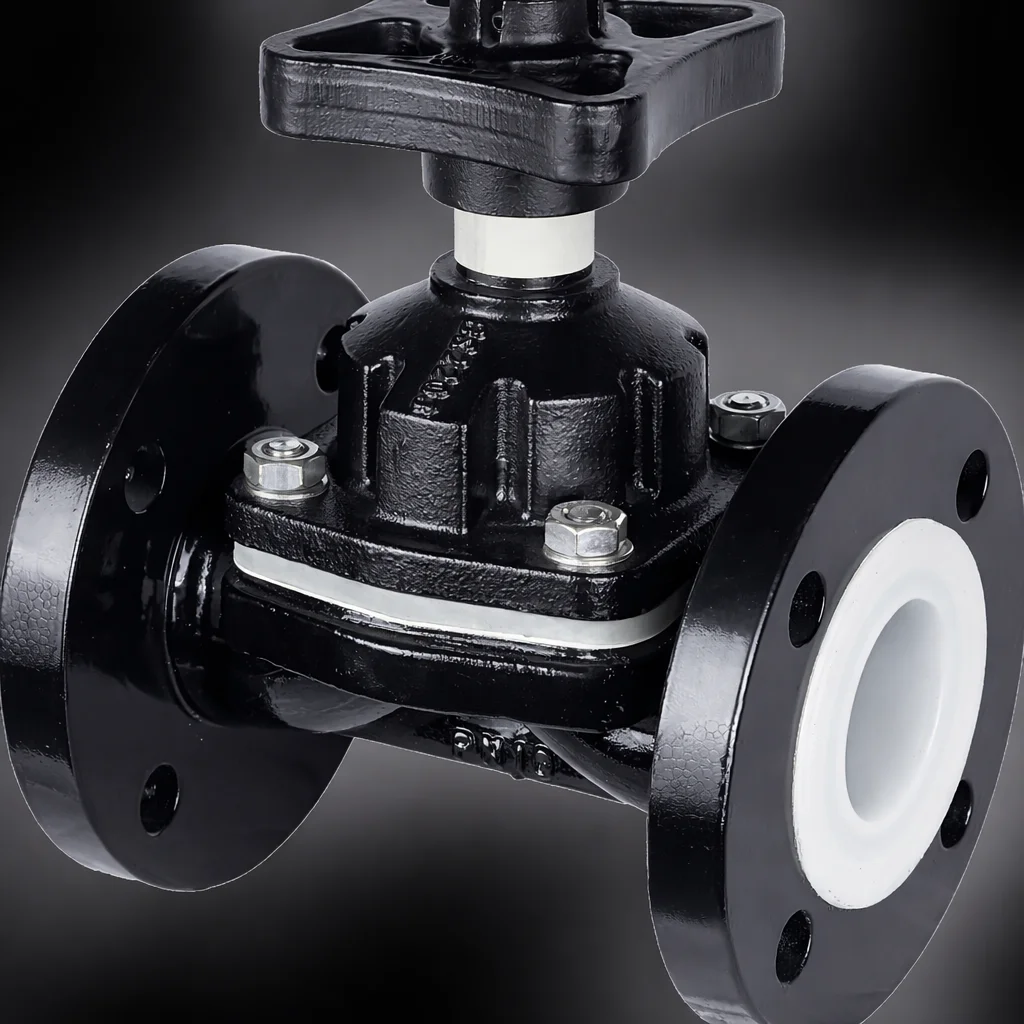

DI/CI Manual Weir Type Diaphragm Valve PTFE Lined

Valve Type DIAPHRAGM VALVE

Operation Manual

Body DI/CI

Lining PTFE Lined

Shape Weir Type

Request Technical Catalog

Product Overview

Weir Type Diaphragm Valves offer exceptional durability, reliability and control. The clean design completely isolates line media from the mechanical components of the valve.

The Features & Benefits of diaphragm valve design：
Bubble-tight shutoff (Class VI)
Cavity free design
Easy/low maintenance
In-line serviceable (top entry)
No stem seal leakage
Standard Position indicator

Technical Parameters

The Features & Benefits of PTFE Lined： Excellent chemical corrosion resistance, wide temperature resistance range, extremely smooth surface, excellent sealing performance, and outstanding chemical stability.

Suitable media: Strong acids, strong alkalis, organic solvents, and high-purity chemicals.

Nominal Size: DN15-DN250

Face to Face: BS, DIN

Flange Drilling: ANSI#125/150, PN10/16, Table D/E, JIS

Pressure: Up to 16 Bar (Elastomer Diaphragm) *Max pressure varies across size range

Testing Standards： EN12266-1 2002(BS6755 Part 1)
