Product Specifications

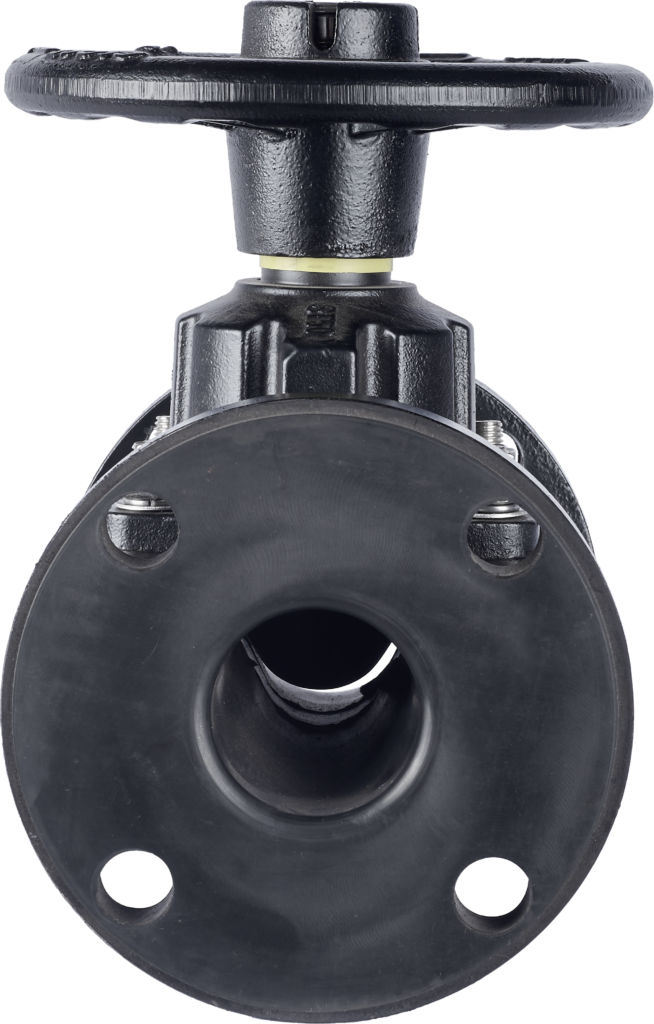

DI/CI Manual Weir Type Diaphragm Valve HR(Ebonite) Lined

Valve Type DIAPHRAGM VALVE

Operation Manual

Body DI/CI

Lining Hard Natural Rubber Lined

Shape Weir Type

Request Technical Catalog

Product Overview

Weir Type Diaphragm Valves offer exceptional durability, reliability and control. The clean design completely isolates line media from the mechanical components of the valve.

The Features & Benefits of diaphragm valve design：
Bubble-tight shutoff (Class VI)
Cavity free design
Easy/low maintenance
In-line serviceable (top entry)
No stem seal leakage
Standard Position indicator

Technical Parameters

The Features & Benefits of HR Lined： Excellent abrasion resistance, strong resistance to particle erosion, suitable for slurries with high solid content, and longer service life.

Suitable media: Salt water, dilute mineral acids, chlorinated water, deionized water, electroplating (stripping) solutions, and drinking water.

Nominal Size: DN15-DN350

Face to Face: BS, DIN

Flange Drilling: ANSI#125/150, PN10/16, Table D/E, JIS

Pressure: Up to 16 Bar (Elastomer Diaphragm) *Max pressure varies across size range

Testing Standards： EN12266-1 2002(BS6755 Part 1)

Why Choose Our Valves?

ISO Certified Process
Mechanical Lining Technology
35-45 Day Delivery Cycle

Contact Engineering Team

For custom sizing and material options
