Handling abrasive slurries or low-pressure fluids often leads to valve failure and poor control. This causes costly downtime and unreliable processes, forcing you to constantly seek better solutions.
Weir-type diaphragm valves[^1] are the ideal choice for low-pressure and slurry applications because of their unique design. The raised weir shortens the diaphragm's travel, enabling precise control at low pressures and creating a tight seal. This design also promotes a smooth flow path, preventing clogging from solids.
This simple yet effective design is the key to their performance, but the benefits don't stop there. As a manufacturer, I've seen firsthand how these valves solve problems that other types just can't handle. Let's dig deeper into the specific features that make them such a reliable workhorse in demanding industries. We will explore exactly how they achieve such durability and precision.
What Makes Weir-Type Diaphragm Valves So Durable and Precise?
Choosing the wrong valve leads to premature failure and poor flow control. This compromises your entire system's reliability, causing frustration and unexpected expenses for your business.
Their durability comes from the raised weir, or saddle, which supports the diaphragm and reduces mechanical stress, extending its life. This design also provides a short, linear stroke for excellent throttling capabilities, allowing for very precise and repeatable flow control.
The secret to both the long life and the fine control of a weir-type valve lies in its internal geometry. Unlike other valve designs, it's not just about opening and closing a path; it's about how that path is managed. I remember a client in the chemical processing industry who was replacing valves every six months due to diaphragm failure. The constant flexing in their old valves was causing them to wear out quickly. After we helped them switch to our weir-type valves, which support the diaphragm properly, their maintenance cycle extended to over two years. This is a perfect example of how the right design directly impacts operational costs and reliability.

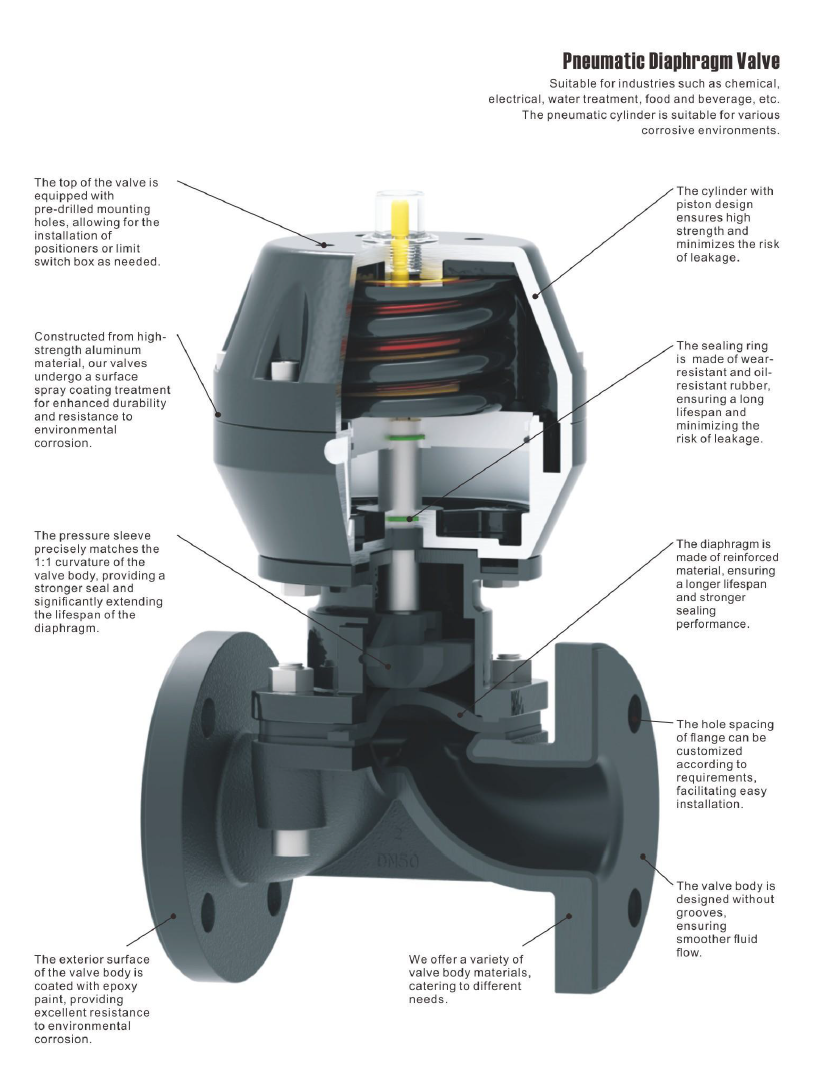

The Role of the Raised Weir
The "weir" is a raised lip or saddle inside the valve body. The diaphragm only has to travel a short distance before it presses firmly against this weir to shut off the flow. This design has two major benefits. First, it drastically reduces the amount of flexing and stretching the diaphragm endures with each cycle. Less stress means less material fatigue, which is why these diaphragms last so much longer. Second, the weir provides a solid surface that fully supports the diaphragm in the closed position, protecting it from the harsh effects of abrasive media or high-pressure spikes.
Achieving Pinpoint Flow Control
The short stroke required to close the valve also makes it excellent for throttling, or regulating, the flow. Because the movement is small and controlled, you can make very fine adjustments to the flow rate. The relationship between the valve's opening and the flow rate is much more linear and predictable compared to other valve types. This makes it a favorite in applications like chemical dosing, where adding just the right amount of a substance is critical to the entire process.
| Feature | Weir-Type Diaphragm Valve | Straight-Through Diaphragm Valve |
|---|---|---|
| Durability | Excellent (supported diaphragm) | Good (unsupported diaphragm) |
| Flow Control | Excellent (linear, precise) | Fair (less precise throttling) |
| Stroke Length | Short | Long |
| Best For | Clean fluids, slurries, control | Abrasive slurries, large solids |
How Do Weir Valves Excel in Low-Pressure and Slurry Systems?
Low-pressure systems often lack the force for a tight shut-off. At the same time, slurries can easily clog and erode standard valves, leading to constant system shutdowns.
The weir design requires very little force to create a positive seal, making it perfect for low-pressure applications. For slurries, the smooth, contoured flow path over the weir minimizes turbulence and prevents solid particles from settling and causing blockages.
These two capabilities seem opposite, but the weir valve handles them both with ease. We worked with a wastewater treatment plant that was constantly dealing with clogged valves in their sludge lines. The straight-through valves they were using would allow solids to build up, eventually blocking the pipe. We supplied them with our weir-type valves. The gentle "hump" of the weir kept the media flowing and prevented particles from settling. This simple change completely eliminated their clogging issue and saved them hours of maintenance each week.
Mastering Low-Pressure Sealing
In many valve designs, the system's own pressure helps push the valve shut to create a seal. But what happens when you don't have much pressure to work with? That's where weir valves shine. The diaphragm only has to move a very short distance to press against the weir. This means a small amount of force, whether from a handwheel or a pneumatic actuator, is enough to create a bubble-tight seal. It doesn't rely on line pressure. This makes it incredibly reliable for vacuum services, low-pressure dosing lines, and gravity-fed systems where other valves would likely leak.
Handling Abrasive Slurries with Ease
When you have a fluid filled with suspended solids, like in mining or flue gas desulfurization, you have a big challenge. The particles act like sandpaper, eroding the internals of a valve. The weir valve's design helps solve this. The flow path is smooth and contoured, guiding the slurry gently over the weir. This avoids the sharp turns and high-velocity impact zones that cause erosion in globe or ball valves. The diaphragm itself is also a resilient material, like rubber or PTFE, which can absorb the impact of particles far better than a metal seat. This combination of a gentle flow path and a resilient sealing surface makes it an incredibly effective and long-lasting choice for abrasive duties. Common applications include:
- Mining and mineral processing
- Power plant ash and slag handling
- Chemical slurry transport
- Wastewater and sludge treatment
Why is Their Compact Size and Sealing Ability So Important?
Engineers often face tight piping spaces in modern plants. At the same time, even a tiny particle leak can contaminate a process or create a safety hazard.
Their compact size comes from the short diaphragm stroke, which allows for a smaller body and actuator, making installation easy in crowded areas. The design provides a positive, bubble-tight seal against the weir, which effectively traps fine particles and prevents any leakage.
The benefits of a compact design and a perfect seal are huge. I have seen many projects where our weir-type valves were chosen simply because they were the only ones that could fit into the available space. For equipment manufacturers building complex skids, every inch counts. A smaller, lighter valve reduces the overall weight and cost of the final product. The sealing ability is just as critical. In industries like water treatment or pharmaceuticals, you cannot afford any contamination or leakage. The reliability of the weir valve's seal provides peace of mind.
Small Footprint, Big Performance
The vertical movement of the diaphragm is much smaller than the travel needed in a straight-through or globe valve. This directly translates to a shorter and more compact valve body. It also means you can use a smaller, less powerful, and less expensive actuator to operate it. This is a massive advantage for system designers. When you can use a smaller valve, you save on material costs, reduce the weight on your piping supports, and make maintenance access much easier. It’s a cascading series of benefits that all start with that simple, short-stroke design.
The Science of a Perfect Seal
The magic of the seal happens when the flexible diaphragm is pressed down onto the solid weir. This creates a large, wide sealing area, not just a thin line of contact like you see in many metal-seated valves. This wide surface is extremely effective at conforming to the weir and trapping any fine solid particles that might be in the fluid. It ensures what we call a Class VI, or bubble-tight, shutoff. This level of sealing is essential in applications where you cannot tolerate any leakage, such as:
- Dosing of hazardous chemicals
- Handling high-purity water
- Processes where cross-contamination must be avoided
- Gas lines requiring a positive shutoff
The resilience of the diaphragm material combined with the solid weir creates one of the most reliable and secure sealing mechanisms available in any valve.
Conclusion
Weir-type diaphragm valves[^1] offer unmatched durability, precision, and reliability for low-pressure and slurry applications. Their design provides a compact, leak-proof solution for the toughest industrial challenges.
