Worried about contamination in your food production line? A small leak can spoil an entire batch. Diaphragm valves[^1] provide a safe, clean, and reliable solution for perfect results.
Diaphragm valves[^1] are essential in the food industry because their hygienic design prevents contamination and ensures product consistency. They are ideal for controlling the flow of liquids, slurries, and powders[^2] in applications like dairy, beverages, and sauces, meeting strict food safety standards.
You see, the secret to their success in the food industry lies in a very simple, yet effective, design. The valve uses a flexible diaphragm to separate the food product from the rest of the valve's mechanics. This single feature solves so many problems that plague food and beverage manufacturers. It’s not just about stopping leaks; it’s about creating a completely clean and controllable environment for the product. Let's explore exactly how these valves handle different food production challenges and why they are a top choice for maintaining quality.
How Do Diaphragm Valves Ensure Precise Flow Control in Food Production?
Struggling to maintain consistent texture and taste in your products? Incorrect ingredient flow ruins batches. Diaphragm valves[^1] offer precise control, ensuring perfect product quality every single time.
Diaphragm valves[^1] ensure precise flow control[^3] through their unique mechanism. The flexible diaphragm can be adjusted to finely regulate the passage of fluids, which is critical for mixing ingredients, managing viscosity, or controlling fill volumes in beverage, dairy, and sauce production lines.

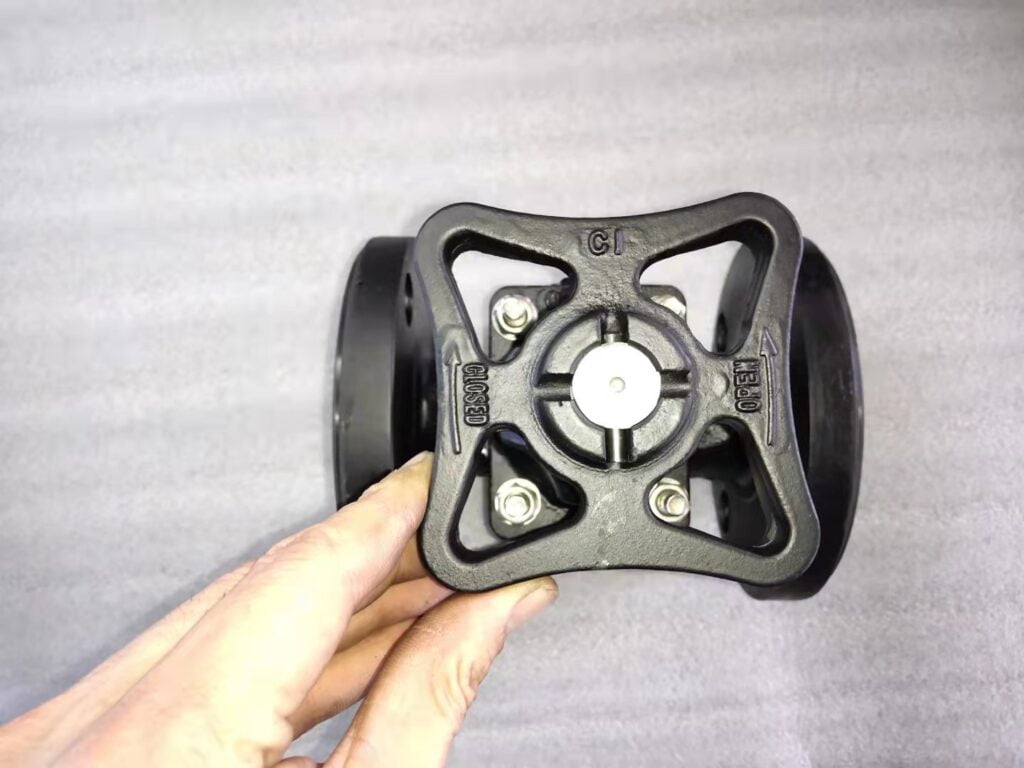

When we talk about precise control, it's about getting the same result batch after batch. In food production, this is everything. Diaphragm valves[^1] achieve this by allowing for very fine adjustments to the flow rate. The mechanism is simple: as you turn the handwheel or as the actuator moves, the diaphragm is pushed towards the valve seat. This gradually closes the flow path, allowing for throttling from fully open to fully closed. This is different from a ball valve, which is mostly for on/off service.
The Role in Ingredient Dosing
In processes like making soft drinks or mixing yogurt, you need to add precise amounts of syrups, flavors, or cultures. Diaphragm valves[^1] excel here. Their linear flow characteristic[^4] means a certain turn of the handle corresponds to a predictable change in flow. This makes them perfect for automated dosing systems where a pneumatic actuator can open the valve for an exact amount of time, delivering a perfect dose every time.
Managing Viscosity in Sauces and Dairy
Thick products like sauces, purees, or creams can be tricky. They don't flow like water. Diaphragm valves[^1] have a smooth, open flow path that minimizes turbulence and pressure drop. This helps maintain the product's texture and prevents it from being damaged. The fine control also allows you to manage the flow rate of these viscous fluids effectively, preventing blockages and ensuring a steady process.
| Feature | Diaphragm Valve | Ball Valve |
|---|---|---|
| Flow Control | Excellent (Throttling) | Poor (On/Off) |
| Dead Space | None | Yes (Cavity) |
| Viscous Fluids | Handles well | Prone to clogging |
| Hygienic Design | Superior | Inferior |
Why Are Diaphragm Valves Perfect for Hygienic and CIP Systems?
Worried about hygiene during line cleaning? Traditional valves have hidden spots for bacteria. Diaphragm valves[^1] have a smooth, crevice-free design, making them perfect for reliable Clean-in-Place (CIP) systems[^5].
Diaphragm valves[^1] are perfect for hygienic and CIP systems[^6] because their design completely isolates the process fluid from the valve's moving parts. This leaves no dead spaces or crevices where bacteria can grow, ensuring a thorough and effective clean every time.
I remember a client who produced fruit jams. They were constantly fighting clogs and contamination issues with their old ball valves. After a production run, cleaning was a nightmare. Product would get stuck in the valve's cavity, and even after a CIP cycle, they couldn't be 100% sure it was clean. They switched to our diaphragm valves, and the problem vanished. The smooth, pocketless interior meant the jam flowed through without getting stuck, and the cleaning fluids could flush the entire system effectively. This is a common story I hear from customers.
Eliminating Contamination Risks[^7]
The core of a diaphragm valve's hygienic advantage is its design. The only parts that touch the food product are the valve body lining and the diaphragm itself. There are no stems, packing, or hidden cavities that extend into the flow path. This "crevice-free" design is critical. Bacteria need a place to hide and multiply, and diaphragm valves simply don't give them one. When you run a CIP cycle with cleaning agents, the smooth surface ensures every bit of the valve is sanitized.
Handling High-Viscosity and Abrasive Media
Food products aren't always simple liquids. Think about tomato paste, fruit purees with seeds, or even slurries used in processing. These can be thick, sticky, and sometimes abrasive. The weir-style diaphragm valve design creates a streamlined path that helps lift solids and prevent them from settling and causing clogs. The robust diaphragm material can also handle the abrasive nature of some products, ensuring a long service life without the wear and tear that can create new crevices for bacteria to hide in.
How Do Diaphragm Valves Help Meet Strict Food Safety Regulations?
Afraid of failing a food safety audit? The regulations are complex and strict. Diaphragm valves[^1] are built with certified, food-grade materials to help you pass audits with confidence.
Diaphragm valves[^1] help meet food safety regulations[^8] by using FDA-approved materials[^9] for wetted parts, like PTFE or EPDM diaphragms and linings. Their crevice-free, easy-to-clean design prevents bacterial growth, ensuring the final product remains pure and uncontaminated, which is essential for compliance.
Meeting regulations like those from the FDA or EFSA is non-negotiable in the food industry. It all comes down to the materials that come into contact with the food. When we build diaphragm valves, especially for food-grade applications, every choice of material is deliberate and documented. The right valve isn't just one that works; it's one that comes with the peace of mind of full compliance. This focus on materials and design is why diaphragm valves are a go-to choice for any manufacturer who takes food safety seriously.
Choosing the Right Materials

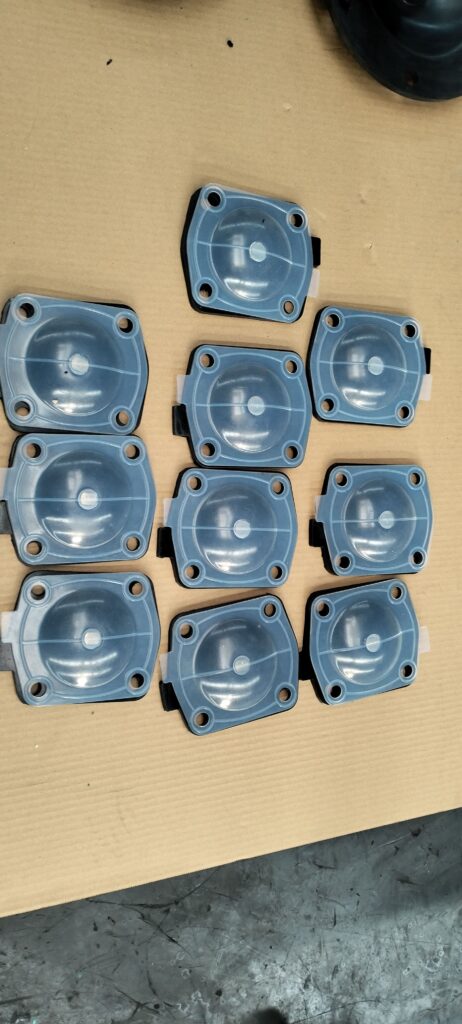

The "wetted parts" – the diaphragm and the body lining – are the most critical components. They must be made from materials that are certified as safe for food contact. These materials cannot leach harmful substances into the product or react with it in any way.
| Material | Key Properties for Food Industry | Common Use |
|---|---|---|
| PTFE | Excellent chemical resistance, non-stick, wide temperature range, FDA compliant. | High-purity applications, aggressive cleaning agents, sticky products. |
| EPDM | Good for water-based media and many chemicals, flexible, FDA compliant. | General food and beverage, dairy, CIP systems. |
The Importance of Body and Lining
For the most sensitive applications in the pharmaceutical or food industries, a stainless steel valve body is often the standard. However, it's not always necessary. The food product only touches the lining. We manufacture many valves with cast iron (CI) or ductile iron (DI) bodies and a high-purity plastic lining, like PFA or PTFE. These valves provide the same inert, hygienic, and non-stick internal surface as a solid stainless steel valve but at a much more competitive price point. This is a great solution for utility lines or many process applications where the external environment is not corrosive, but internal hygiene is paramount. It’s about choosing the smart, cost-effective solution without compromising safety.
Conclusion
In short, diaphragm valves are key to ensuring food safety and product consistency. They provide the hygienic, precise control needed for modern food processing, making them an invaluable investment.
