Struggling with valves that leak or wear out from harsh chemicals? This constant maintenance costs time and money. Weir-type diaphragm valves[^1] offer a reliable, long-lasting solution for tough applications.
Weir-type diaphragm valves[^1] provide superior sealing[^2] and a longer service life[^3] because their unique design shortens the diaphragm's travel, reducing stress and wear. This makes them ideal for corrosive fluids[^4], slurries[^5], and even vacuum conditions[^6], offering a durable and cost-effective flow control solution.
As a manufacturer, I've seen countless clients switch to weir-type diaphragm valves and never look back. Their design is simple but incredibly effective. The valve body has a raised ridge, or "weir," that the diaphragm presses against to shut off flow. This simple change from a flat-bottom valve has a huge impact on performance and durability. Let's explore why this design is so beneficial for demanding industrial environments.
What Are the Performance Advantages of Weir-Type Diaphragm Valves?
Tired of high maintenance costs and frequent valve failures? The constant downtime hurts your productivity. Weir-type diaphragm valves[^1] offer distinct performance benefits that ensure reliability and save you money.
The key advantages are a longer diaphragm life due to a shorter stroke, reliable sealing, and excellent corrosion resistance[^7]. This design allows for a wider range of materials, including PTFE, making them perfect for handling aggressive media and solids while keeping costs low.
When we design and manufacture these valves, our focus is on maximizing their inherent strengths. The weir isn't just a random bump; it's a carefully engineered feature that fundamentally improves how the valve works. This design choice leads to several performance benefits that our clients, from chemical plant managers to water treatment[^8] engineers, really value. It solves many common problems they face with other valve types, especially when dealing with difficult media. Let's break down these advantages in more detail.
Short Stroke, Longer Life
The most significant benefit of the weir design is the short stroke[^9]. The diaphragm only has to travel a short distance to press against the weir and stop the flow. This means the diaphragm experiences much less stress and strain during each open-and-close cycle. Over time, this drastically reduces wear and tear, leading to a much longer service life[^3] for the diaphragm, which is often the first part to fail in other designs. While this design does create slightly higher flow resistance compared to a straight-through valve, the trade-off is well worth it for the massive increase in reliability and lower maintenance costs.
Material Flexibility and Sealing
Because the diaphragm doesn't need to flex as much, we can use a wider variety of materials. This includes less flexible but highly durable materials like PTFE (Polytetrafluoroethylene). A PTFE diaphragm[^10] provides incredible resistance to almost all corrosive chemicals. The weir also creates a very reliable, tight seal[^11]. The diaphragm is compressed against the weir, ensuring a positive shut-off that prevents leaks. This simple, robust structure makes the valves relatively inexpensive to manufacture, which is a huge plus for projects with tight budgets but high sealing requirements.
Corrosion Resistance and Vacuum Suitability
The valve body itself can be protected with various linings. We specialize in casting iron and ductile iron bodies and then applying high-quality plastic linings (like PFA, PTFE) or rubber linings (like EPDM, NBR). This, combined with the diaphragm, completely isolates the fluid from the valve's metal parts. The result is a valve with outstanding resistance to corrosion and an ability to handle fluids with abrasive particles. Furthermore, these valves work well in vacuum conditions[^6], although for high-vacuum applications, the diaphragm may need special reinforcement.
| Feature | Advantage | Why It Matters for You |
|---|---|---|
| Short Stroke | Reduced stress and strain on the diaphragm | Longer service life, fewer replacements, less downtime |
| Weir Seal | Creates a tight, positive shut-off | Prevents costly and hazardous leaks |
| Material Options | Allows use of rigid materials like PTFE | Superior chemical resistance for aggressive media |
| Lined Body | Isolates media from metal components | Excellent corrosion and abrasion resistance |
| Vacuum Capable | Can be used in vacuum service[^12] | Versatile for specialized industrial processes |
Where Are Weir-Type Diaphragm Valves Most Commonly Used?
Choosing the wrong valve for your application can lead to contamination and failure. This puts your entire process at risk. Weir-type valves are designed for specific industries where purity and control are critical.
They are widely used in chemical, pharmaceutical, food, and water treatment[^8] industries. Their excellent sealing and resistance to corrosion and particles make them perfect for handling aggressive media, slurries[^5], and processes where contamination must be avoided, including vacuum applications.
Based on my experience supplying these valves globally, their unique set of advantages makes them a go-to solution in several key sectors. When a procurement manager from a chemical plant or a business owner in the water treatment[^8] industry calls us, they are usually looking for a valve that won't fail when exposed to harsh conditions. The weir-type design directly addresses these needs, making it a reliable workhorse. Let's look at the specific applications where these valves truly shine.
Chemical and Water Treatment Plants

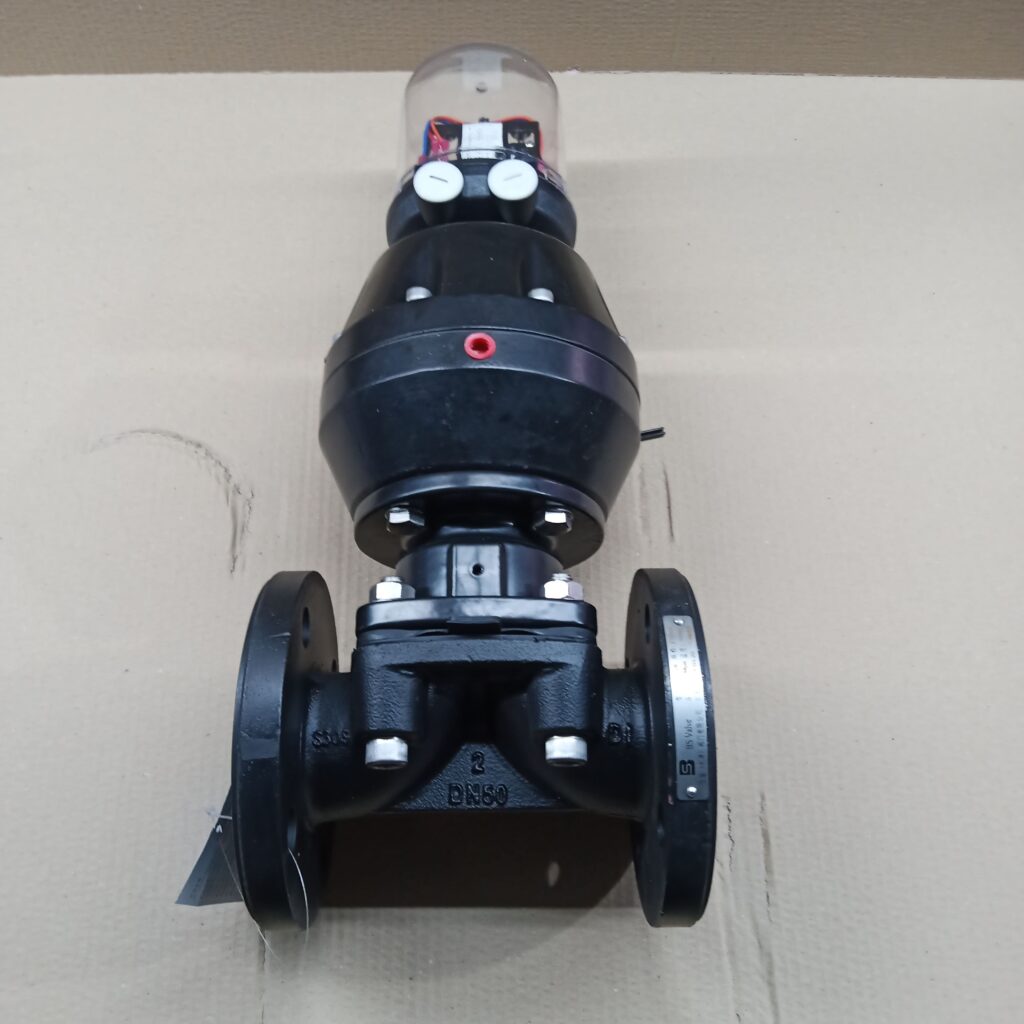

In the chemical industry[^13], weir-type diaphragm valves are essential for handling a wide range of corrosive substances like acids, alkalis, and solvents. Our cast iron and ductile iron valves, protected with robust rubber or plastic linings, provide a cost-effective and durable solution for these environments. Similarly, in wastewater treatment[^8] plants, they are used for dosing chemicals like coagulants, disinfectants, and pH adjusters. The leak-free seal prevents chemical waste, and the smooth flow path resists clogging from sludge and other solids. The ability to offer both manual and pneumatic actuators gives plant operators the flexibility they need for process control.
Power Plants and Mining
Power plants, especially those with flue gas desulfurization (FGD) systems, rely on these valves to handle abrasive and corrosive slurries[^5] like limestone and gypsum. The combination of a wear-resistant lining and the valve's ability to handle solids makes it a perfect fit. In the mining industry[^14], they are used to control the flow of ore slurries[^5] and other abrasive materials. The durability of the diaphragm and lining in these harsh conditions is a major reason why they are chosen over other valve types that would quickly wear out.
Pharmaceutical and Food Industries
While these industries often require stainless steel bodies, which is a different market segment, lined weir-type diaphragm valves still play a role. They are used in utility applications like process water (WFI) systems or in stages involving corrosive cleaning agents (CIP). The key benefit here is the prevention of contamination. The weir design, with its smooth contours and absence of dead space where fluid can get trapped, helps maintain the purity of the process fluid. For any of our clients looking to serve these markets, we can provide plastic-lined valves that meet the necessary corrosion resistance[^7] for non-product-contact applications.
Conclusion
In short, weir-type diaphragm valves offer reliable sealing and a long lifespan for corrosive and abrasive fluids, making them a smart choice for many demanding industrial applications.
