Struggling with valves that clog or restrict flow? This inefficiency slows down your processes and compromises shut-off reliability, costing you valuable time and money in maintenance and downtime.

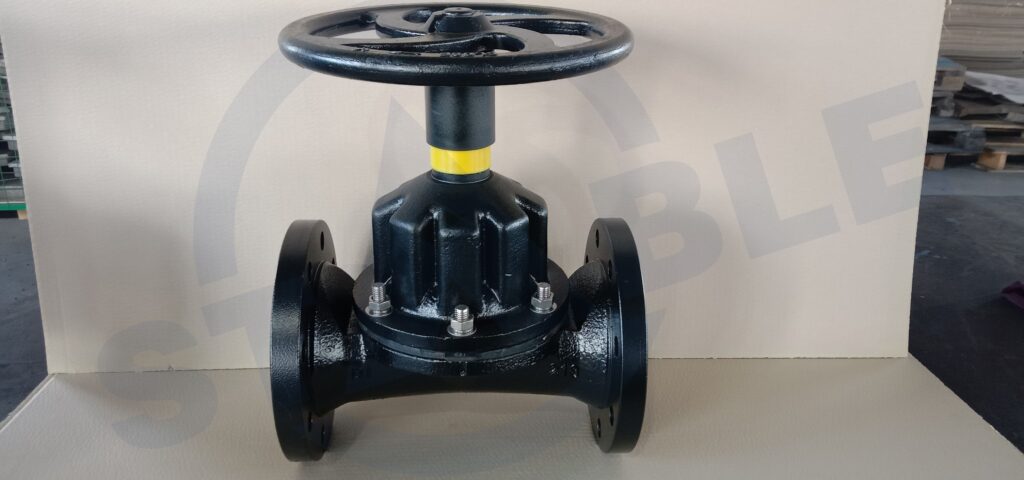

A straight-through diaphragm valve[^1] is a top choice because its linear flow path minimizes resistance, allowing for higher flow rates. Its flexible diaphragm provides a tight, leak-proof seal, even when dealing with fluids containing solid particles like sand or fibers, ensuring superior performance and reliability.
As a manufacturer, I've seen firsthand how the right valve design can transform an entire system's efficiency. The straight-through diaphragm valve[^1] is a perfect example of simple, effective engineering. But its benefits go far beyond just a clear passageway. Let's explore the specific performance advantages that make this valve a workhorse in so many demanding industries.
What are the Core Performance Advantages of Straight-Through Diaphragm Valves?
Choosing the wrong valve leads to performance issues like pressure drops and leaks. This can compromise your system's efficiency and safety, especially when handling corrosive or abrasive fluids.
The core advantages are low flow resistance, excellent shut-off, superior handling of corrosive and particle-laden media, and suitability for high-vacuum environments[^2]. These features combine to deliver reliable, efficient fluid control in the most challenging industrial conditions, which I've seen impress clients time and again.
From my years of experience in valve manufacturing, the performance of a straight-through diaphragm valve[^1] comes down to a few key design elements. Each one solves a specific problem that engineers and plant managers face every day.
Low Resistance, High Flow
The valve's defining feature is its nearly straight, unimpeded fluid channel. When the diaphragm lifts, the path is wide open, which is a major advantage for applications needing high flow rates. This design significantly reduces pressure drop compared to other valve types. However, this does mean the diaphragm has a longer way to travel, which requires it to be made from a highly flexible and durable material.
Superior Sealing and Control
When the valve closes, the diaphragm presses down firmly, creating a tight seal. What I find most impressive is its ability to provide a complete shut-off even when there are solids like sand or fibers in the pipeline. The soft diaphragm simply envelops the particles to seal around them. This makes it incredibly reliable for applications where absolute closure is critical.
Corrosion and Particle Resistance
The entire wetted area of the valve body can be lined with robust materials like plastic (PTFE, PFA) or rubber (EPDM, NBR). This isolates the metal body from corrosive or abrasive media, extending the valve's life. It's a key reason these valves perform so well in tough chemical and slurry applications[^3].
| Feature | Advantage | Key Consideration |
|---|---|---|
| Flow Path | Minimizes flow resistance for high volume. | Requires a highly flexible, long-stroke diaphragm. |
| Sealing | Provides tight shut-off, even with solids. | Ideal for critical isolation and slurry services. |
| Lining Options | Excellent corrosion and abrasion resistance. | The lining material must match the process medium. |
| Vacuum Service | Can be used in high-vacuum environments[^2]. | The bonnet may need adjustment to prevent collapse. |
Where are Straight-Through Diaphragm Valves Most Commonly Used?
Specifying the correct valve for an application is critical. A mismatch can lead to premature failure, process contamination, or even safety hazards, creating serious problems for any operation.
These valves are widely used in the chemical, pharmaceutical, food, and water treatment industries. They are especially valuable for handling corrosive media, slurries with particles, and in high-vacuum processes where their unique structure offers unmatched reliability and performance.
Based on the bulk orders we fulfill, I can tell you exactly where these valves make the biggest impact. Their unique combination of features makes them a go-to solution in several key sectors.
Chemical and Water Treatment
In chemical plants and wastewater facilities, fluids are often aggressive and full of particulates. Straight-through diaphragm valves are perfect here. The protective linings stand up to acids, alkalis, and other corrosive chemicals, while the design easily handles sludge and slurries without clogging or failing to seal. We often supply valves with EPDM or PTFE linings for these exact scenarios.
Pharmaceutical and Food Industries
While these industries often require stainless steel bodies, lined straight-through diaphragm valve[^1]s still find their place. They are used in utility lines like process water or in certain corrosive stages where preventing metal ion contamination is crucial. The smooth flow path and lack of dead space are also beneficial for maintaining system cleanliness.
High-Vacuum Systems
This is a more specialized but important application. In high-vacuum processes, some valves fail. However, a straight-through diaphragm valve[^1] can be adapted for this. By adjusting the bonnet, you can prevent the diaphragm from being pulled into the flow path by the vacuum, ensuring it operates reliably.
| Industry | Common Application | Key Benefit Provided |
|---|---|---|
| Chemical | Transferring corrosive acids and slurries. | Excellent corrosion resistance from robust linings. |
| Water Treatment | Handling sludge, dosing chemicals, controlling flow. | High tolerance for particles and reliable shut-off. |
| Pharma & Food | Process water and other non-critical fluid lines. | Smooth flow path and isolated mechanism. |
| Specialized | Industrial high-vacuum process control. | Unique ability to perform reliably under vacuum. |
Conclusion
In short, straight-through diaphragm valve[^1]s provide excellent flow, reliable sealing, and great versatility. They are a tough, dependable solution for controlling challenging industrial fluids in demanding applications.
