Are your manual diaphragm valves failing unexpectedly? Leaks and broken parts cause costly downtime. I will show you how to fix these issues quickly and keep your systems running.
Manual diaphragm valve troubleshooting involves identifying issues like ruptured diaphragms[^1], internal leaks[^2], or stuck handwheels. Solutions include replacing worn diaphragms, clearing foreign objects, tightening loose bolts to specified torque, and changing broken compressor pin[^3]s or stems to restore proper fluid control[^4].
You might think replacing the whole valve is the only option when things go wrong. But wait, before you throw away a perfectly good valve body[^5], read this guide to learn how to repair it.
Why Do Diaphragms Rupture and How Can You Fix Them?
Does your valve leak fluid everywhere? A ruptured diaphragm stops your entire process. I will help you find the cause and replace the broken part right away.
Diaphragm rupture happens due to rubber aging, high working pressure[^6], trapped foreign objects[^7], or opening the valve too high. You fix this by replacing the old diaphragm, clearing debris, checking system pressure, and keeping the opening height within the manufacturer's recommended limits.
Analyzing Diaphragm Failures
A ruptured diaphragm is a very common problem. I see this issue often in chemical plants and wastewater treatment[^8] facilities. The diaphragm is the heart of the valve. It isolates the fluid from the working parts. The valve fails completely when the diaphragm breaks.
You must look at four main causes. First, diaphragms age over time. Rubber materials like EPDM or NBR lose their flexibility. Second, high working pressure[^6] damages the material. You must make sure your fluid pressure matches the manual diaphragm valve manufacturer's recommendations. Third, foreign objects[^7] get trapped between the seat and the diaphragm. These hard pieces cut the rubber or plastic lining. Finally, opening the valve too much stretches the diaphragm past its physical limit.
Troubleshooting Steps
You need to take specific steps to solve this problem. Use this table to guide your repair process.
| Problem Cause | Inspection Method | Solution |
|---|---|---|
| Material Aging | Check for cracks or stiff rubber. | Replace the diaphragm with a new one. |
| High Pressure | Read the system pressure gauge. | Lower the pressure or install a high-pressure valve. |
| Foreign Objects | Open the valve and look inside. | Clean out the dirt and debris. |
| Over-opening | Measure the stem travel distance. | Do not exceed the recommended opening height. |
We supply custom diaphragm valves with high-quality PTFE and EPDM linings. Our mechanical lining technology makes the internal surface very smooth. This prevents dirt buildup and reduces rupture risks. You should always keep spare diaphragms in your warehouse.
Why Does Fluid Flow When the Valve Is Closed?
Do you see fluid moving after you close the valve? Internal leaks waste expensive chemicals and cause safety risks. I will show you how to stop this internal flow.
Fluid flows when the valve is closed because foreign objects[^7] block the seal or scratches damage the diaphragm and valve seat. You must open the valve, remove any trapped dirt, and replace the scratched diaphragm or valve seat to restore a tight seal.
Understanding Internal Leakage
Internal leakage is a very frustrating problem. You turn the handwheel all the way down. But the fluid still moves. I remember a time when a customer lost gallons of expensive chemicals because of a tiny scratch inside the valve. The manual diaphragm valve stops flow by pressing the diaphragm tightly against the valve body[^5] weir or seat. Fluid will slip through if this seal is not perfect.
Foreign objects are the biggest enemy here. Small rocks, metal shavings, or hard scale from the pipes can get stuck. These objects stop the diaphragm from touching the seat when you close the valve. Sometimes, these hard objects scratch the plastic lining or rubber lining. They can also scratch the diaphragm itself.
How to Fix Internal Leaks
You must inspect the inside of the valve carefully. I recommend using the following checklist.
| Defect Type | What to Look For | How to Fix It |
|---|---|---|
| Trapped Dirt | Debris sitting on the valve seat. | Flush the pipeline and clean the valve body[^5]. |
| Scratched Diaphragm | Cuts or lines on the rubber surface. | Replace the diaphragm with a new unit. |
| Damaged Seat | Gouges in the cast iron or lining. | Replace the valve body[^5] if the lining is ruined. |
Our cast iron and ductile iron valve bodies use a shell molding casting process. This gives them fewer casting defects. A smooth internal surface helps prevent dirt from getting stuck in the first place.
Why Can't the Manual Diaphragm Valve Open Fully?
Is your valve stuck halfway? A valve that will not open fully restricts your system flow. I will explain why this happens and how you can fix it.
A manual diaphragm valve cannot open fully when the compressor pin[^3] breaks or thick dirt clogs the inside of the valve body[^5]. You solve this by opening the valve housing, clearing out the heavy sludge, and replacing the broken compressor pin[^3] with a new one.
Identifying Restricted Movement
Flow control requires full valve movement. You lose process efficiency when a manual diaphragm valve does not open all the way. I often see this in wastewater treatment[^8] plants where thick sludge moves through the pipes. The valve operation relies on the handwheel lifting the valve stem. The stem lifts the compressor. The compressor pulls the diaphragm up. The valve stays partially closed if any part of this chain fails.
The compressor pin[^3] connects the stem to the compressor. The stem moves up if this pin breaks. But the compressor stays down. The diaphragm cannot lift fully. Another common issue is heavy dirt buildup. Thick fluids or slurries can leave solid deposits inside the valve body[^5]. These deposits block the diaphragm from moving up.
Repairing the Opening Mechanism
You need to take the valve apart to fix this problem. Look at the table below for guidance.
| Issue | Symptoms | Required Action |
|---|---|---|
| Broken Pin | Handwheel turns easily but flow is low. | Disassemble the bonnet and replace the compressor pin[^3]. |
| Dirt Buildup | Handwheel feels very tight and hard to turn. | Open the valve and scrape out the hardened dirt. |
We supply manual diaphragm valves with strong internal parts. Our robust design handles ore slurry very well if you use our valves in mining or metallurgy. You should always check the compressor pin[^3] during your annual maintenance schedule.
Why Does the Handwheel Turn But the Valve Does Not Work?
Does your handwheel spin freely without changing the flow? A disconnected handwheel means you have zero control over your pipeline. I will help you reconnect the internal parts.
The handwheel turns without operating the valve because the valve stem is broken or the compressor pin[^3] has snapped. You must take off the valve bonnet to inspect the parts. Replace the broken valve stem or the broken compressor pin[^3] to fix the valve completely.
Diagnosing a Freely Spinning Handwheel
A spinning handwheel is a clear sign of mechanical failure. You rotate the handle. But nothing happens inside the pipe. I once visited a paper mill where an operator forced a stuck handwheel and broke the stem. Manual diaphragm valves operate by applying torque through the handwheel. This torque moves the threaded valve stem up or down.
The handwheel disconnects from the rest of the valve when the stem breaks. The handwheel turns. But the stem does not move. The stem moves if the compressor pin[^3] breaks. But it does not pull or push the diaphragm. Both problems lead to a complete loss of fluid control[^4].
Steps for Mechanical Repair
You must replace the broken metal parts. Use this table to understand the repair process.
| Broken Component | Mechanical Result | Repair Procedure |
|---|---|---|
| Valve Stem | Threads strip or metal snaps in half. | Remove the bonnet, take out the old stem, and install a new one. |
| Compressor Pin | Stem separates from the compressor piece. | Push out the broken pin pieces and insert a new steel pin. |
Our factory uses all-new molds to make our valve parts. This gives our parts better dimensional accuracy. Better accuracy means the stem and pin fit perfectly. This reduces the stress on the metal and prevents these parts from breaking during normal use.
Why Does Liquid Leak Between the Bonnet and Valve Body?
Is fluid dripping down the outside of your valve? External leaks damage equipment and create slippery floors. I will guide you through fixing this messy problem safely.
Liquid leaks between the bonnet and valve body[^5] because the connecting bolts are loose or the internal seals are worn out. You can stop the leak by tightening the bolts to the specified torque value or by taking the valve apart to replace the worn seals.
Stopping External Bonnet Leaks
External leaks are dangerous and messy. You must fix them immediately. The bonnet is the top part of the valve. It holds the handwheel and stem. It bolts directly to the cast iron or ductile iron valve body[^5]. The diaphragm itself usually acts as the seal between the body and the bonnet. Liquid escapes into the environment if this connection fails.
Loose bolts are the most common cause. Pipeline vibrations can loosen these bolts over time. The clamping force drops when the bolts get loose. The pressurized fluid pushes past the seal. Worn seals or a crushed diaphragm edge also cause this problem. The rubber loses its shape over time and cannot hold the pressure.
Correcting the Seal Connection
You must restore the clamping force. Here is how you do it.
| Cause of Leak | Checking Method | Repair Action |
|---|---|---|
| Loose Bolts | Touch the bolts with a wrench. | Tighten the bolts evenly in a cross pattern to the correct torque. |
| Worn Seals | Look for flat or cracked rubber edges. | Unbolt the bonnet and replace the seal or diaphragm. |
We manufacture OEM diaphragm valves[^9] for global brands. Our factory strictly controls the assembly process. We make sure every bolt is tightened correctly before shipping. You must always follow the manual diaphragm valve manufacturer's torque instructions if you do this maintenance yourself.
Why Does the Valve Leak at the Pipe Connection?
Are drops of liquid forming where the valve meets the pipe? Flange leaks waste product and cause corrosion. I will explain how to secure your pipe connections properly.
The valve leaks at the pipe connection due to loose flange bolts, worn flange gaskets, or damaged sealing faces. You must tighten the connection bolts to the correct torque. If the leak continues, you need to replace the worn gaskets or worn seals immediately.
Securing the Flange Joints
A leak at the pipe connection is a system installation issue. I deal with this problem frequently when clients install new pipelines. Manual diaphragm valves usually connect to pipes with flanges. We provide flanges drilled to standard sizes like PN, ANSI 150, TABLE D, and GB. The connection relies on a gasket. This gasket sits between the valve flange and the pipe flange.
The gasket does not compress enough if the connection bolts are loose. Fluid under pressure will find its way out. The gasket becomes hard and flat when it gets old. A hard gasket cannot fill the tiny gaps between the metal flanges. Sometimes, the flange face itself gets scratched or worn. This also ruins the seal.
Flange Leak Repair Guide
You must check the bolts and gaskets. Follow this table for quick repairs.
| Leak Source | Visual Inspection | Fix Required |
|---|---|---|
| Loose Bolts | Nuts turn easily by hand. | Use a torque wrench to tighten bolts securely. |
| Worn Gasket | Gasket looks thin, dry, or cracked. | Remove the old gasket and put in a new one. |
| Damaged Flange | Scratches on the valve flange face. | Use a sealant or replace the valve if damage is deep. |

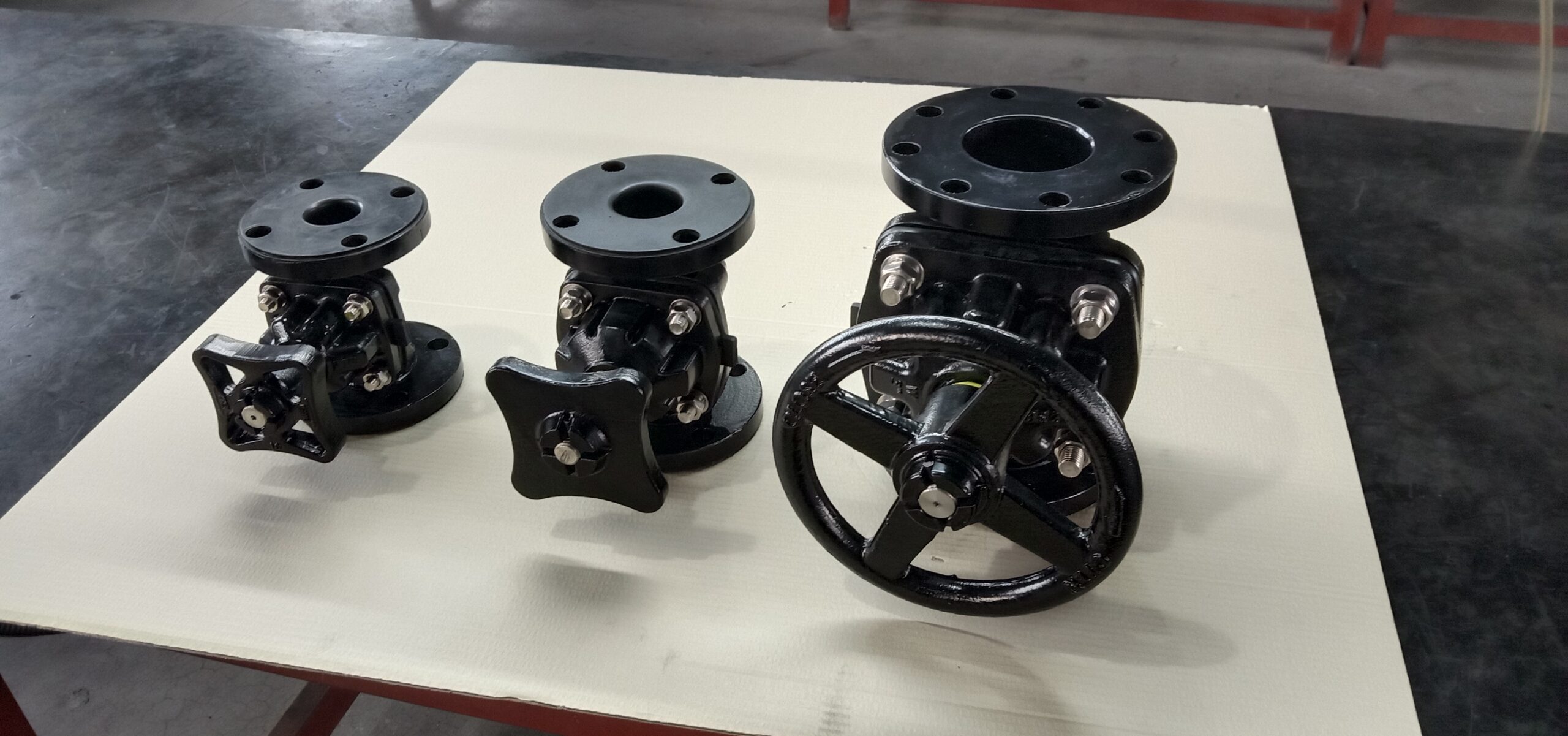

Our high-quality diaphragm valves have smooth and flat flange faces. This design aligns with international aesthetics and ensures a perfect seal. You must always use the correct gasket material for your specific chemical fluid.
How Do Manual Diaphragm Valves Work and Why Choose Them?
Do you want a simple and reliable way to control fluids? Choosing the right valve saves money. I will explain how these valves work and why they are great.
A manual diaphragm valve operates by rotating a handwheel to apply torque. Turning clockwise pushes the diaphragm down to stop flow. Turning counter-clockwise lifts the diaphragm to start flow. They are cheaper than automatic valves, simple, compact, easy to clean, leak-free, and support bi-directional fluid flow.
Understanding the Operating Principle
Manual diaphragm valves are very popular in industrial fluid control. I always recommend them for low to medium pressure applications. The operating principle is very simple. The operator turns the handwheel. This action moves the stem and compressor. You rotate the handwheel counter-clockwise when you want to start the fluid flow. The stem moves up. The diaphragm lifts away from the valve body[^5]. Fluid flows through the pipe easily.
You rotate the handwheel clockwise when you want to stop the flow. The compressor pushes the diaphragm down. The diaphragm presses tightly against the internal weir or seat. This completely isolates the fluid from the valve's working parts.
Valve Types and Applications
Manual diaphragm valve manufacturers produce many types of valves. They make straight-through valves, weir-type valves, plastic valves, sanitary valves, and high-purity valves. Look at the table below for common applications.
| Industry | Valve Type Used | Main Benefit |
|---|---|---|
| Chemical Processing | PTFE lined weir valve. | Excellent corrosion resistance against strong acids. |
| Water Treatment | EPDM rubber lined valve. | Reliable leak-free control for water and chemicals. |
| Mining | Straight-through valve. | Resists abras |
