Struggling with valve clogs or poor flow control[^1]? Choosing the wrong valve leads to costly downtime and maintenance headaches. Let's find the right fit for your system.
The two main types of diaphragm valves are weir-type and straight-through. Weir-type valves use a raised saddle for precise control of clean fluids, while straight-through valves[^2] have an open path ideal for slurries and viscous media.
I've been in the valve manufacturing business for years, and one of the first questions I always ask a new client is about their specific application. The fluid, the pressure, the need for control—it all matters. Choosing between a weir-type and a straight-through diaphragm valve is one of the most fundamental decisions you'll make. Get it right, and your system runs smoothly for years. Get it wrong, and you're looking at constant problems. So, let's break down the details of each type to make sure you have the information you need to make the best choice for your project.
When Should You Choose a Weir-Type Diaphragm Valve?
Need precise flow control[^3] without worrying about leaks or contamination? Standard valves can fail with corrosive media or under pressure. Weir-type diaphragm valves offer a robust and reliable solution.
Choose a weir-type diaphragm valve for applications needing precise flow control[^3] (throttling), especially with high pressure or vacuum. They excel with gases, clean liquids, and corrosive chemicals[^4] but are not ideal for slurries.
Let's dive deeper into what makes the weir-type so popular. I remember working with a chemical plant manager who was having issues with dosing accuracy. His old valves just weren't precise enough, leading to wasted chemicals and inconsistent batches. We switched him to our weir-type diaphragm valves, and the problem was solved almost overnight. The key is in the design itself.
The Anatomy of a Weir-Type Valve
The defining feature of this valve is the "weir," which is a raised lip or saddle molded into the valve body. The diaphragm presses down onto this weir to create a tight seal and stop the flow. Because the diaphragm only has to travel a short distance to close, it experiences much less stress compared to other designs. This allows us to use thicker, more durable diaphragm materials, which is why these valves perform so well in high-pressure and vacuum systems. The reduced stress also means a longer service life for the diaphragm, which is a huge plus for maintenance teams.
Precision Control and Cleanliness
This design is fantastic for throttling, which means regulating the flow rate. The valve provides excellent control even at very low flow rates. Some designs even feature a two-stage closing mechanism, where the center of the diaphragm moves first for fine adjustments, followed by the outer edges for full closure. Another major benefit is that weir-type valves[^5] are often self-draining when installed correctly. The weir's shape helps prevent fluid from pooling inside the valve, which is critical in industries like food processing or pharmaceuticals where cleanliness is non-negotiable.
| Feature | Benefit | Ideal Application |
|---|---|---|
| Raised Weir/Saddle | Creates a tight seal with a short diaphragm stroke. | High-pressure & vacuum systems |
| Reduced Diaphragm Stress | Allows for thicker, more durable diaphragm materials. | Systems requiring long service life |
| Excellent Throttling | Provides precise control over the flow rate. | Chemical dosing, water treatment |
| Self-Draining Design | Prevents fluid accumulation and contamination. | Sanitary applications, clean liquids |
However, that raised weir is also its main limitation. It creates an obstruction in the flow path, making it unsuitable for fluids with suspended solids, slurries, or very thick media. These materials can build up on the weir, preventing the valve from closing properly and reducing overall performance.
Is a Straight-Through Diaphragm Valve a Better Choice for Your System?
Are thick slurries[^6] or sludge constantly clogging your pipes? These blockages stop production, create a mess, and require frequent, frustrating cleanouts. A straight-through valve keeps things flowing smoothly.
A straight-through diaphragm valve is the better choice for handling viscous fluids, slurries, sludge, and other semi-solid materials. Its unobstructed flow path[^7] minimizes clogging and pressure drop, but its diaphragm may wear faster.
If the weir-type valve is the precision tool, the straight-through valve is the heavy-duty workhorse. I once visited a wastewater treatment plant where they were constantly dealing with clogged lines in their sludge processing unit. The valves they were using just couldn't handle the thick, abrasive material. We replaced them with our straight-through, rubber-lined diaphragm valves. The open-bore design immediately eliminated the clogging issue, and their maintenance calls for that part of the plant dropped significantly. This valve is designed specifically for the tough stuff.
Unobstructed Flow for Tough Media

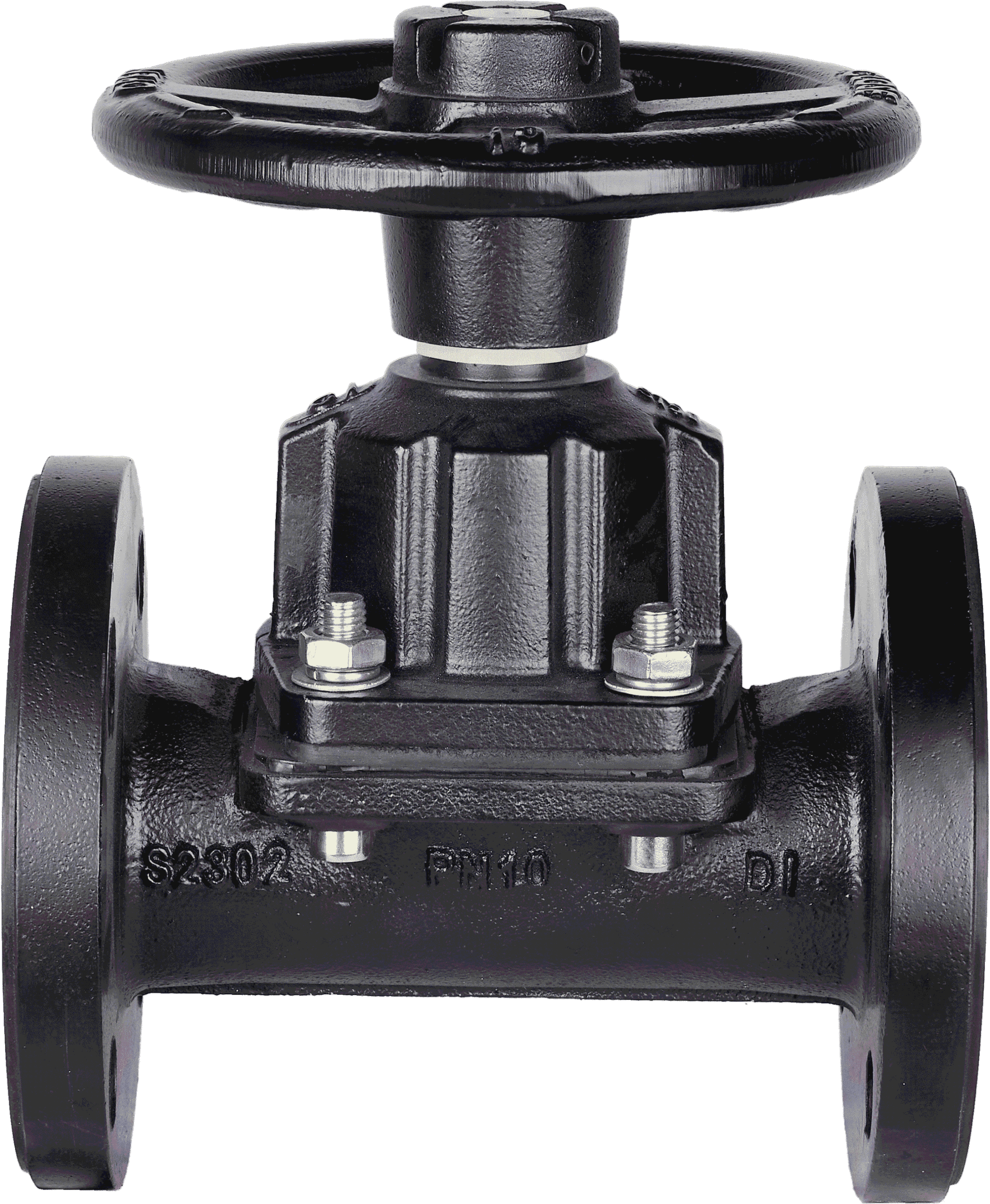

Also known as a full-bore valve, the straight-through design has a flat-bottomed body. This creates a completely open and unobstructed flow path[^7], similar to a ball valve when fully open. To close, the diaphragm travels a longer distance to press against the flat bottom of the valve body, cutting off the flow. This design is perfect for media that would otherwise clog a weir-type valve. Think of mineral slurries in mining, sludge in wastewater treatment, or thick chemicals. The smooth path minimizes turbulence and pressure drop, keeping everything moving efficiently.
Design Considerations and Applications
Because the diaphragm has to stretch further, it needs to be made from a more flexible material. This flexibility means it can wear out more quickly than a weir-type diaphragm, especially in high-cycle applications. Therefore, you should plan for more frequent diaphragm replacements as part of your maintenance schedule[^8]. One unique advantage is its ability to handle bi-directional flow[^9], meaning fluid can move in either direction without any issues. This makes it a versatile choice for certain piping configurations. It’s most often used in simple on/off applications where the main goal is to start or stop flow with minimal obstruction, rather than for precise throttling.
| Feature | Benefit | Ideal Application |
|---|---|---|
| Flat-Bottom Body | Provides an unobstructed, full-bore flow path. | Slurries, sludge, viscous media |
| Minimal Clogging | Smooth interior prevents solids from accumulating. | Wastewater treatment, mining |
| Low Pressure Drop | Maximizes flow efficiency in the system. | On/off applications |
| Bi-Directional Flow | Fluid can flow in either direction. | Reversible pumping systems |
While it's the champion for tough media, it's not the best for flow control. The long diaphragm travel makes precise throttling difficult. For those applications, the weir-type remains the superior choice.
Conclusion
In short, weir-type valves[^5] offer precise control for clean fluids and gases, while straight-through designs excel at handling tough slurries and viscous media. Choosing correctly ensures system efficiency.
