Handling aggressive chemicals is tough. The wrong valve material fails, causing leaks and costly downtime. This is where a reliable diaphragm becomes critical for safety and operational continuity.
Yes, PTFE is a top choice for diaphragms in highly corrosive media. Its unique carbon-fluorine bond structure makes it extremely resistant to almost all acids, alkalis, and solvents, ensuring dependable performance in harsh chemical applications.
I've been in the valve manufacturing business for years, and one material consistently comes up when clients face aggressive chemicals: PTFE. It's the industry's go-to problem solver. But just saying it's good isn't enough. It's important to understand why it works so well and where its limits are. Let's break down its performance so you can see if it's the right fit for your needs.
Why Is PTFE So Resistant to Chemicals?
Choosing the right material for aggressive chemicals can feel like a gamble. A wrong choice leads to rapid degradation, leaks, and potential safety hazards in your facility.
PTFE's incredible chemical resistance comes from its strong carbon-fluorine bonds. This molecular structure makes it inert to nearly all industrial chemicals, including strong acids, bases, and solvents, making it a safe bet for chemical processing.
When we talk about chemical stability, PTFE is in a class of its own. The secret is in its chemistry. The bonds between carbon and fluorine atoms are incredibly strong and stable. This high bond energy means that it takes a huge amount of energy to break them, which most chemicals simply don't have. As a result, the material remains non-reactive, or "inert," when exposed to even the most aggressive substances. Over my years of supplying valves, I've seen PTFE diaphragms perform flawlessly in applications where other materials would fail in days. This makes it an essential material for ensuring safety and purity in critical processes.
Common Chemicals Handled by PTFE
| Chemical Type | Examples | Application Suitability |
|---|---|---|
| Strong Acids | Sulfuric Acid, Hydrochloric Acid, Nitric Acid | Excellent |
| Strong Alkalis | Sodium Hydroxide, Potassium Hydroxide | Excellent |
| Organic Solvents | Toluene, Acetone, Alcohols | Excellent |
| Chlorides | Sodium Chloride, Ferric Chloride | Excellent |
Can PTFE Diaphragms Handle High Temperatures?
High-temperature chemical processes can destroy many materials. A diaphragm failure at elevated temperatures is not just an inconvenience; it's a serious safety risk that can lead to hazardous spills.
Yes, PTFE diaphragms perform exceptionally well at high temperatures. They maintain their chemical stability and structural integrity in hot chemical reaction systems, providing a reliable sealing solution where other materials would fail under thermal stress.
In many industrial settings, heat is just as big a challenge as corrosion. We often get requests from chemical plants and power plants that need valves for hot processes. While many rubber materials start to break down or lose their properties above 100°C (212°F), standard PTFE can comfortably operate at much higher temperatures, often up to 200°C (392°F) or more. This ability to withstand heat without losing its chemical resistance is a powerful combination. It means you can use a PTFE diaphragm in a system that involves, for example, hot acidic solutions or steam cleaning cycles, without worrying about material degradation. This dual resistance to both heat and chemicals is what makes PTFE such a valuable and versatile material in demanding industrial applications.
What Are the Limitations of Pure PTFE Diaphragms?
PTFE sounds perfect, but every material has a weakness. Using a pure PTFE diaphragm in the wrong application can lead to poor sealing, which defeats the purpose of a valve.
The main limitation of PTFE is its lack of elasticity. Because it's a rigid plastic, a pure PTFE diaphragm can struggle to create a perfect seal, especially in low-pressure systems or with frequent opening and closing.

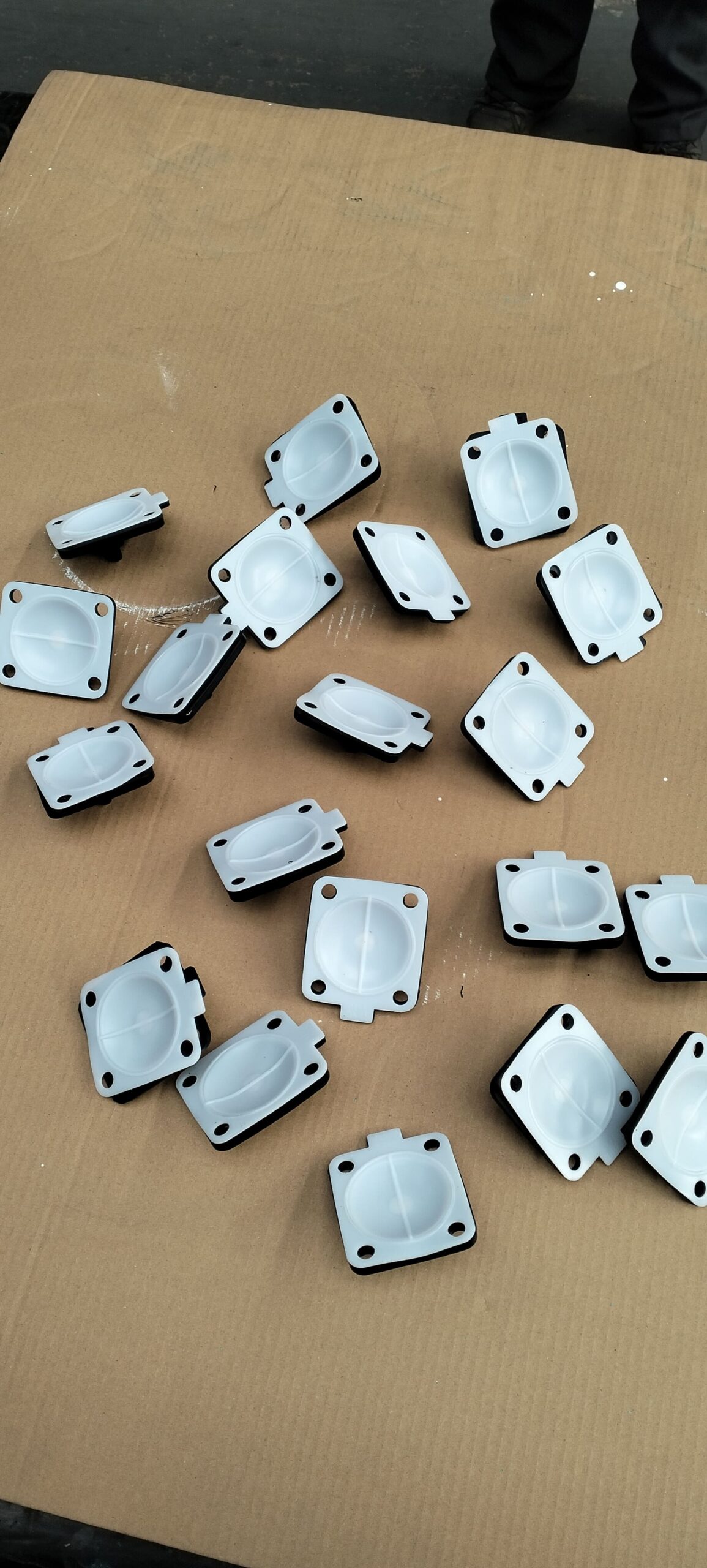

I remember a client who was having trouble with leaks in a low-pressure dosing system. They were using a solid, pure PTFE diaphragm. The problem wasn't the chemical resistance; it was the mechanics. PTFE is a plastic, not a rubber. It doesn't have the natural "springiness" to press down and create a tight seal every time, especially under low force. This is a well-known challenge, and the solution is elegant: the composite diaphragm. We manufacture these by bonding a thin, wetted layer of PTFE to a flexible rubber backing, like EPDM. This design gives you the best of both worlds. The PTFE side faces the corrosive media, providing ultimate chemical protection. The rubber side provides the flexibility and elasticity needed for a bubble-tight seal, cycle after cycle. This composite structure is now the standard for high-performance diaphragm valves.
Pure PTFE vs. Composite Diaphragm
| Feature | Pure PTFE Diaphragm | Composite (PTFE + Rubber) |
|---|---|---|
| Chemical Resistance | Excellent | Excellent |
| Flexibility & Sealing | Poor / Moderate | Excellent |
| Durability (Cycles) | Moderate | High |
| Best Use Case | Static sealing, moderate pressure | Dynamic sealing, frequent cycling |
Where Are PTFE Diaphragms Most Commonly Used?
Knowing a material is good isn't enough for making a decision. You need to know if it's the right choice for your specific application and operational conditions.
PTFE diaphragms are essential in industries handling aggressive fluids. They are typically used in strong acid transfer lines, chemical dosing systems, organic solvent pipelines, and fine chemical processing where purity and corrosion resistance are critical.
Based on the thousands of valves we've supplied, PTFE diaphragms are the heroes in several key areas. They are not a one-size-fits-all solution, but for certain jobs, nothing else compares.
Strong Acid and Alkali Transfer Systems
In chemical plants, moving concentrated sulfuric acid, hydrochloric acid, or sodium hydroxide is a daily task. These chemicals will eat through metal and many plastics. A PTFE-lined diaphragm valve provides a safe and long-lasting barrier, preventing leaks and protecting the valve's core components.
High-Purity and Fine Chemical Processing
In industries like pharmaceuticals or specialty chemicals, you can't have the valve material leaching into the product. Because PTFE is so inert, it doesn't react with or contaminate the media. This ensures the purity of the final product, which is often the most important requirement.
Organic Solvent Pipelines
Many types of rubber will swell, soften, or degrade when exposed to organic solvents. PTFE, however, is unaffected. We regularly supply PTFE diaphragm valves for applications involving solvents, where they provide reliable shut-off and control without the material breaking down over time.
Conclusion
PTFE is a top-tier choice for corrosive and hot applications. For the best performance, a composite design with a rubber backing ensures both chemical resistance and a perfect, reliable seal.
