Struggling with valve failures in corrosive lines[^1]? A wrong diaphragm material[^2] can cause dangerous leaks and costly downtime. Let's compare PTFE, EPDM, and FKM to find your perfect match.
For corrosive service, select PTFE for extreme chemical resistance[^3], EPDM for water-based media[^4] and cost-effectiveness, and FKM for high temperatures and oily substances[^5]. The right choice depends on your specific chemical, temperature, and pressure conditions[^6] to ensure a reliable seal and long valve life.
I've seen firsthand what happens when the wrong material is chosen. A client once used a standard rubber diaphragm for a concentrated acid line, and it disintegrated in a week. That experience taught me that the details matter. Let's break down each material so you don't make the same mistake. It's crucial to look closer at what makes each material unique.
What makes PTFE the top choice for harsh chemicals?
Facing aggressive chemicals that eat through your valve diaphragms? Constant replacements and leak worries are a real problem. PTFE's superior chemical resistance[^7] offers the ultimate peace of mind.
PTFE is the top choice because of its incredible chemical inertness. It can withstand nearly all strong acids, alkalis, and organic solvents without degrading. This makes it the most reliable material for the most corrosive and high-purity applications, ensuring system integrity and safety.
When we talk about PTFE, we're talking about the champion of chemical resistance. Its molecular structure is extremely stable, which is just a technical way of saying it doesn't react with much. This makes it almost completely inert. We use it for the toughest jobs, like handling strong acids, aggressive solvents, or high-purity chemicals where contamination is not an option.

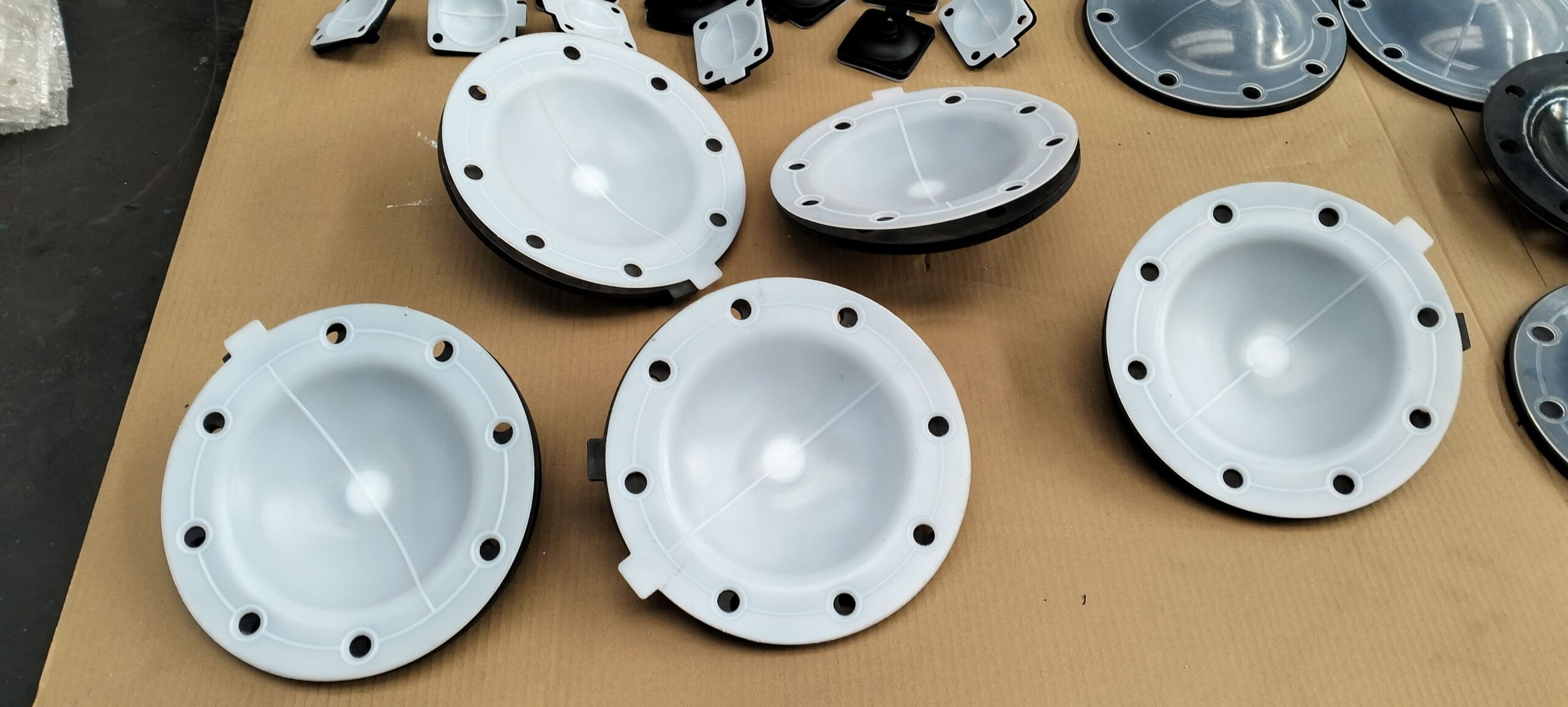

However, PTFE isn't perfect. Its main weakness is its poor elasticity. It's a stiff material, so it doesn't create a tight seal on its own. To solve this, we always use it with a rubber backing, usually EPDM. The PTFE layer faces the corrosive media, and the rubber layer provides the flexibility needed to seal the valve properly. This two-piece design gives you the best of both worlds, but it does increase the cost.
Key Characteristics of PTFE
| Feature | Description |
|---|---|
| Chemical Resistance | Excellent. Resists almost all chemicals. |
| Temperature Range | Good. Suitable for high-temperature applications. |
| Elasticity | Poor. Requires a rubber backing for sealing. |
| Cost | High. The most expensive option of the three. |
When is EPDM the most cost-effective diaphragm material?
Need a durable diaphragm for water or dilute chemicals without the high cost? Overspending on materials you don't need hurts your budget. EPDM offers reliable performance at a great price.
EPDM is most cost-effective for applications involving water, steam, dilute acids, and alkalis. Its excellent elasticity and good resistance in these common media make it a reliable, long-lasting choice for wastewater treatment, power plants, and general industrial use without the premium price of specialty polymers.
I often call EPDM the workhorse of diaphragm materials. It's not designed for the most extreme chemicals, but it handles a huge range of common industrial applications incredibly well. Its main strength is its fantastic elasticity. It can compress to create a tight seal and then return to its original shape over and over again. This makes it very durable in systems with frequent opening and closing.
We see EPDM used everywhere in water treatment plants, power plant cooling systems, and general chemical dosing systems. It's perfect for media like raw water, wastewater, slurries, and dilute acids or bases. The key thing to remember is its limitation: EPDM does not like oils, fats, or hydrocarbon solvents. Exposure to these substances will cause the rubber to swell and soften, leading to a quick failure of the seal. It also has limited resistance to strong oxidizing agents. But for its intended applications, its balance of performance and price is unmatched.
EPDM Suitability Check
| Media Type | Suitability | Reason |
|---|---|---|
| Water & Steam | Excellent | Great elasticity and water resistance. |
| Dilute Acids/Bases | Good | Resists moderate chemical attack. |
| Oils & Solvents | Poor | Swells and degrades on contact. |
| Strong Oxidizers | Limited | Can be attacked and hardened over time. |
Why choose FKM for high-temperature and oily applications?
Are hot oils or solvents causing your rubber diaphragms to fail? These failures mean constant downtime and safety risks. FKM is engineered to withstand high heat and aggressive chemicals.
Choose FKM for its exceptional resistance to high temperatures and a broad range of chemicals, especially oils, fuels, and solvents. Unlike EPDM, it won't swell or degrade in these conditions, ensuring a reliable seal in demanding applications like petrochemical processing and mining.
FKM, which many people know by the brand name Viton™, is a specialty rubber for tough jobs that EPDM can't handle. Its two standout features are its excellent performance at high temperatures and its resistance to oils and fuels. Where an EPDM diaphragm would swell up and fall apart, an FKM diaphragm remains stable and maintains its seal. This makes it essential in industries like mining, where abrasive slurries often contain oils, or in chemical plants dealing with hydrocarbon-based solvents.
Like PTFE, FKM is a premium material, and its cost is higher than EPDM. It also has a specific weakness: it doesn't perform well in the presence of strong alkalis. But if your process involves heat and oils, investing in FKM is a smart choice. Using the wrong material, like EPDM, in an oily application is a common mistake I see. The diaphragm swells, the valve starts leaking, and the line has to be shut down. Choosing FKM from the start prevents these costly failures.
Quick Selection Guide[^8]
| Factor | PTFE | EPDM | FKM |
|---|---|---|---|
| Best For | Extreme Chemicals | Water, General Use | High Heat & Oils |
| Temperature | High | Moderate | High |
| Oil Resistance | Excellent | Poor | Excellent |
| Cost | High | Low | High |
Conclusion
Choosing the right diaphragm[^9] is simple. Use PTFE for harsh chemicals, EPDM for water-based systems, and FKM for high-heat and oily media. This ensures safety and long valve life.
