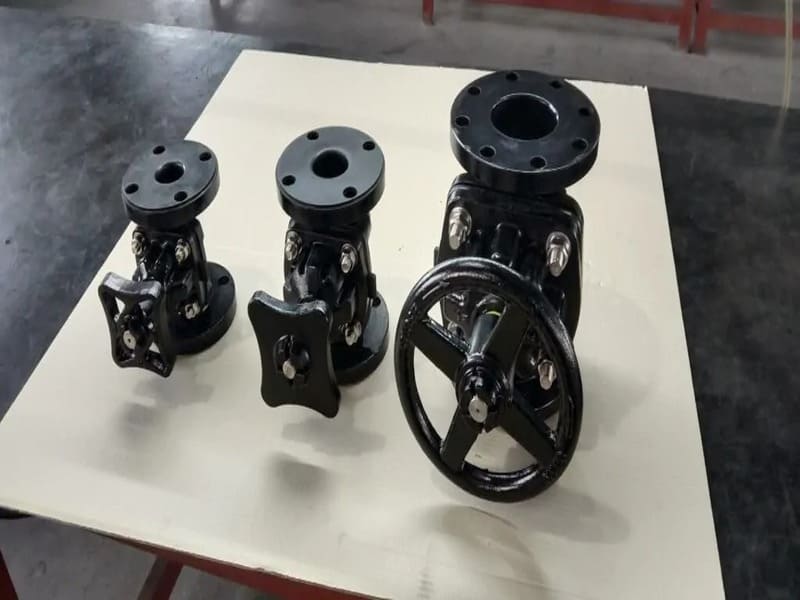

Your process has stopped because a valve failed. You are losing time and money. This guide will help you quickly find and fix the most common diaphragm valve problems.
The most common issues with rubber-lined diaphragm valves[^1] include a ruptured diaphragm[^2], failure to operate, or leaks. Troubleshooting involves checking for wear, ensuring correct operating pressure and torque, and inspecting mechanical parts like the stem and gaskets for damage.
When a valve goes down, the pressure is on to get it working again. I've spent years helping clients diagnose these issues, and I've found that most problems come down to a few key areas. Understanding these common failure points is the first step to becoming an expert at troubleshooting. Let's walk through the problems you're most likely to see and how to solve them, so you can get your system back online fast.
Why Did My Diaphragm Rupture?
A torn diaphragm brings your operation to a halt. This failure can cause serious leaks and contaminate your process. Let's look at the reasons this happens and the solutions.

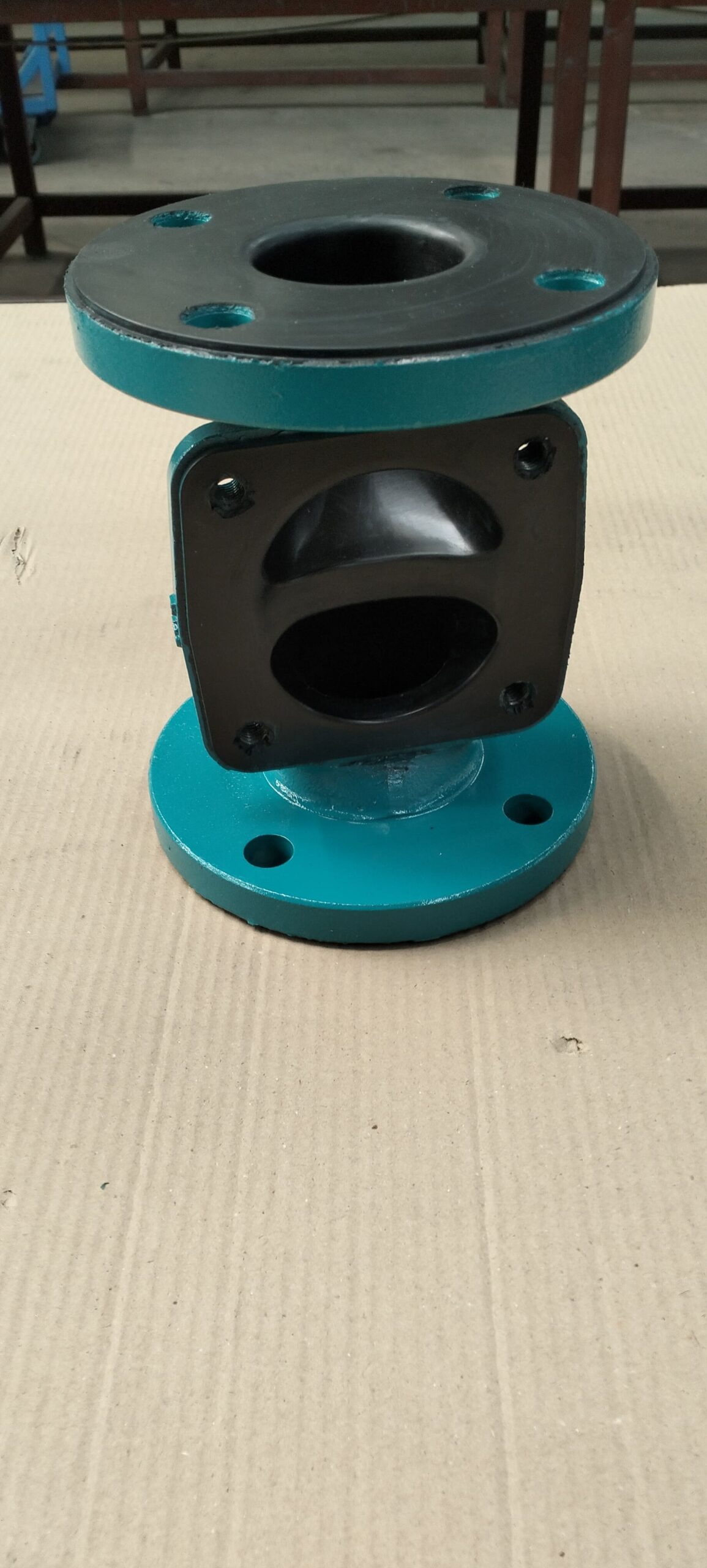

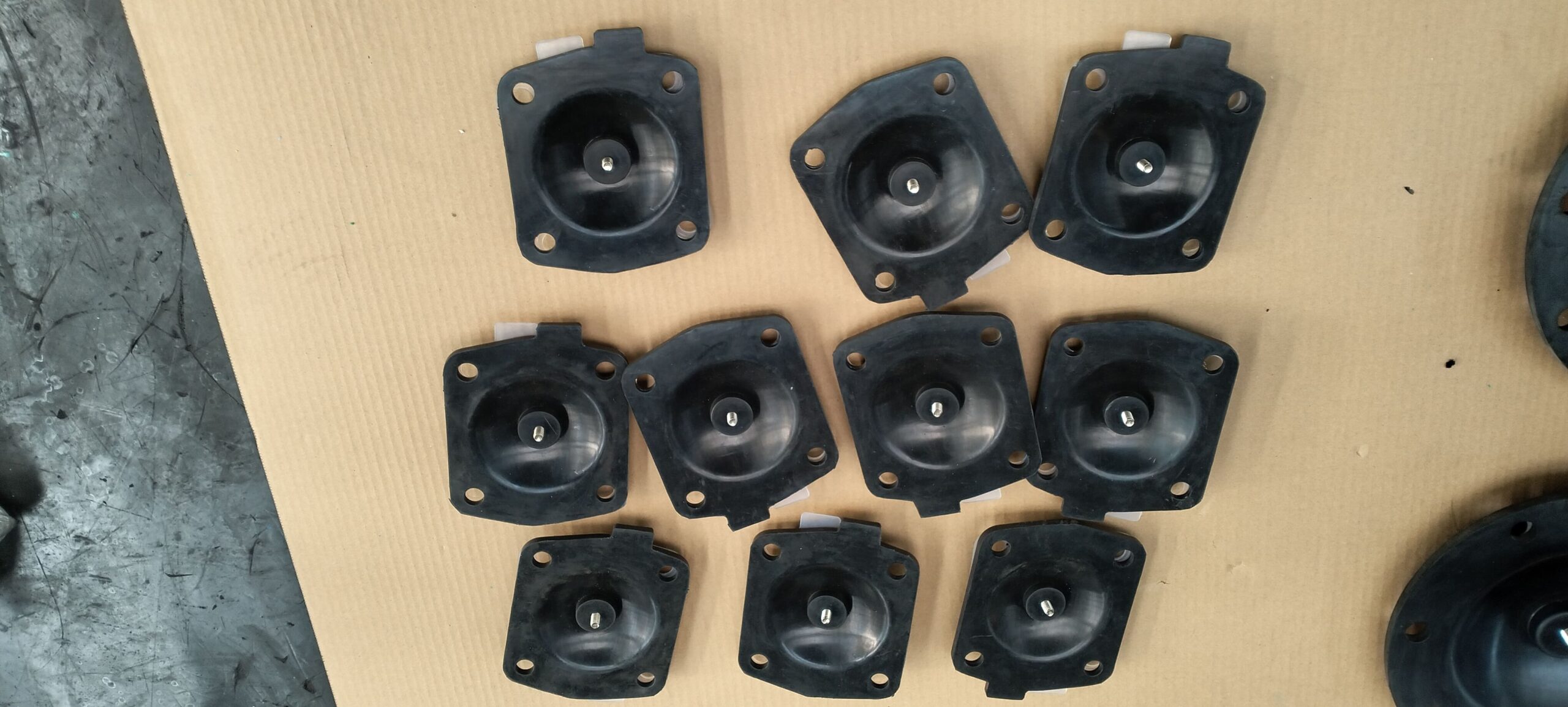

A diaphragm usually ruptures because the rubber is worn out, the operating pressure is too high, or a foreign object is trapped between the diaphragm and the valve seat. Over-opening the valve can also stretch and tear the material.
A diaphragm is the heart of the valve, but it's also the part that takes the most stress. I once visited a chemical plant where they were replacing diaphragms every few months. They thought it was a quality issue, but it turned out to be a simple operational error. Let's break down the main causes so you can avoid similar headaches.
Common Causes of Diaphragm Failure
The diaphragm is a flexible, moving part. It is designed to withstand a lot, but it has its limits. Understanding these limits is key to extending its life.
| Problem | Cause | Solution |
|---|---|---|
| Material Wear | The rubber has reached the end of its service life from repeated flexing and chemical exposure. | Replace the diaphragm. This is part of normal maintenance. |
| High Pressure | The system pressure exceeds the manufacturer's recommended limit for the valve. | Check and adjust the operating pressure to stay within the recommended range. Also, make sure you do not exceed the closing pressure mark when operating the valve. |
| Trapped Objects | Debris or solid particles in the fluid get stuck between the diaphragm and the valve seat. | Open the valve according to the manufacturer's instructions. Carefully remove the foreign object. |
| Over-Opening | The opening height is set too high, stretching the diaphragm beyond its elastic limit. | Adjust the opening height to ensure it does not exceed the recommended maximum. |
Why Won't My Valve Operate At All?
You turn the handwheel, but nothing happens. A stuck valve can completely shut down a production line. Let's figure out what's causing this mechanical failure and get it fixed.

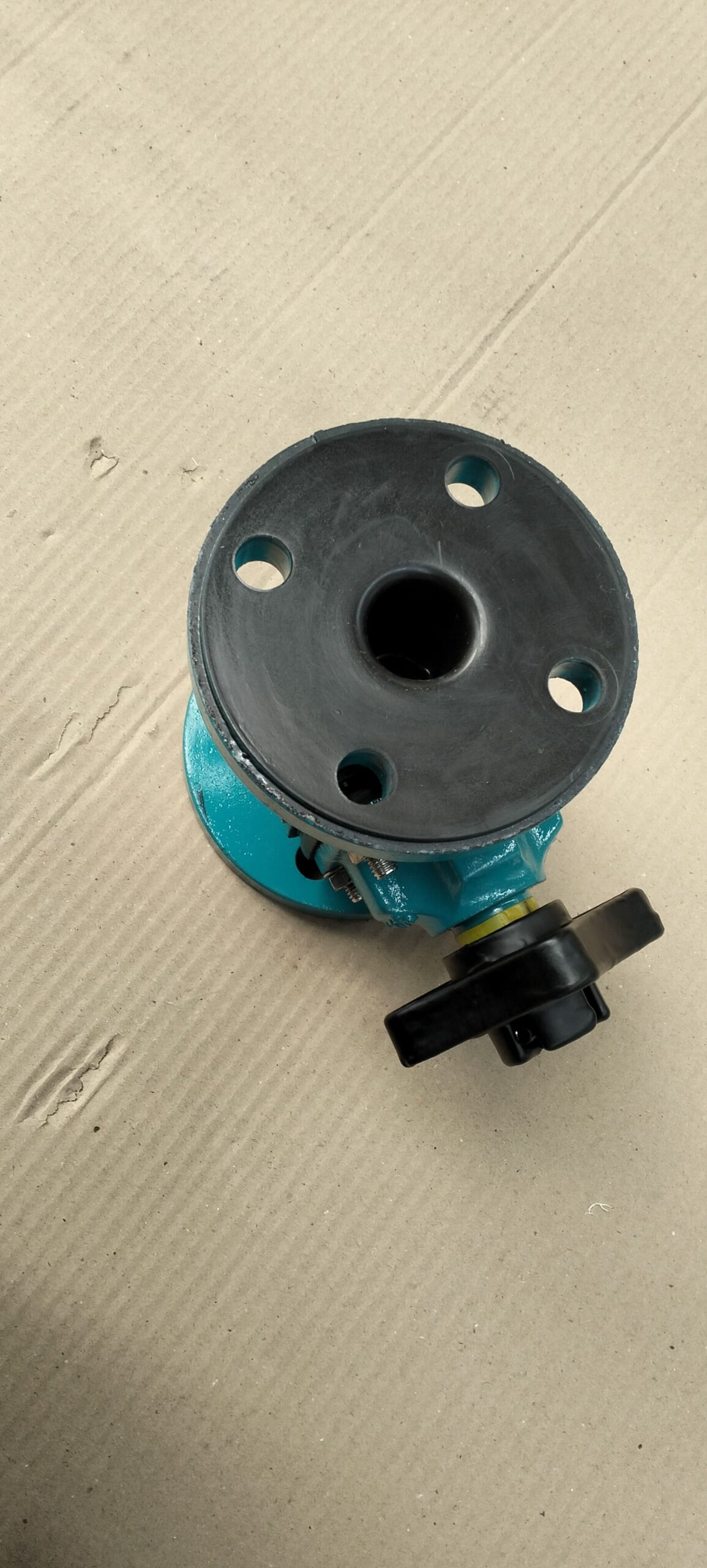

A valve that won't operate is typically caused by a mechanical issue. The most common reasons are a separated disc and diaphragm, a broken stem[^3], or damaged stem threads. These problems require inspection and replacement of the broken part.
When a valve seizes up, it feels like a major problem. But often, it's just one component that has failed. I remember a client who called in a panic because a critical valve was stuck open. We walked them through a quick inspection and found the stem threads were stripped. A simple stem replacement had them running again in under an hour. These mechanical failures are usually straightforward once you know what to look for.
Diagnosing Mechanical Failures
These problems are inside the valve's actuator or bonnet assembly. You will need to take it apart to confirm the issue.
| Problem | Cause | Solution |
|---|---|---|
| Disc & Diaphragm Separation | The compressor (disc) has detached from the diaphragm, often due to excessive force or over-opening the valve. | Avoid over-opening the valve. You will need to repair or, more commonly, replace the entire diaphragm assembly. |
| Broken Stem | The stem has snapped, usually from metal fatigue or applying too much force (torque) to a stuck valve. | Replace the broken stem. Investigate why it broke to prevent it from happening again. |
| Damaged Stem Threads | The threads on the stem or in the handwheel bushing are worn down or stripped. | Replace the stem. When reassembling, make sure the threads are clean and properly aligned to avoid cross-threading. |
Why Is My Valve Leaking or Not Closing Properly?
You've closed the valve, but fluid is still getting through. A leak is not just inefficient; it can be a safety hazard. Let's examine why your valve isn't creating a tight seal.
A valve that fails to close completely or leaks at the pipe connection is often due to low operating torque, loose flange bolts, or a worn-out gasket. These issues prevent a proper seal from being formed.
A perfect seal is the entire point of a valve. When it fails to close, it's frustrating. Sometimes the fix is surprisingly simple. We once worked with a wastewater treatment plant that had a persistent leak. They were about to replace the entire valve. During a final check, we found the flange bolts were just slightly loose. We torqued them to the manufacturer's spec, and the leak stopped immediately. Always check the simple things first.
How to Achieve a Perfect Seal
Ensuring a tight shut-off involves both the valve's operation and its connection to the pipeline.
| Problem | Cause | Solution |
|---|---|---|
| Valve Won't Close | The operating torque applied is too low to fully press the diaphragm against the valve seat. | Ensure you are applying the correct amount of torque as recommended by the manufacturer to achieve a bubble-tight seal. |
| Leak at Pipe Connection | The bolts connecting the valve body to the pipe flange have become loose, often due to vibration. | Tighten the bolts to the recommended torque specification. It is good practice to tighten them in a star or crisscross pattern for even pressure. |
| Worn Gasket | The gasket between the valve flange and the pipe flange has degraded over time. | Replace the worn gasket. Gaskets are consumable parts and should be checked during regular maintenance. |
Conclusion
Troubleshooting your rubber-lined diaphragm valve is usually simple. Check for diaphragm wear, inspect for mechanical faults, and ensure proper torque and sealing to solve most common problems quickly.
