Using a diaphragm valve[^1] the wrong way can cause leaks and early failure. This leads to expensive downtime and safety risks. But understanding a few key rules ensures reliability.
To operate a diaphragm valve[^1] correctly, ensure it's installed in the proper flow direction[^2]. Adjust it slowly, perform regular inspections[^3] for wear, and always use it within its specified temperature and pressure limits[^4]. This simple care extends the valve's life and prevents costly failures.
I've seen many clients make simple mistakes that cost them a lot of money. It's frustrating because these issues are easy to avoid. In my years of manufacturing these valves, I've learned that a little knowledge goes a long way. Let's break down the essential rules so you can get the most out of your valves and protect your investment. These guidelines are crucial whether you're a distributor explaining them to your customers or a plant manager ensuring your lines run smoothly.
What Are the Four Essential Rules for Operating Diaphragm Valves?
A small operational error can ruin an expensive diaphragm valve[^1]. This can shut down your entire production line unexpectedly. Following four simple rules prevents most common failures.
The four essential rules are: install according to the flow direction[^2] arrow, operate the handwheel[^5] slowly and evenly, regularly inspect the diaphragm for wear and tear[^6], and strictly adhere to the valve's temperature and pressure ratings. These steps are crucial for safe and efficient operation.
These rules might seem basic, but they are the foundation of a reliable system. Overlooking even one of them can lead to problems. I remember a new client who installed a whole batch of valves backward. The diaphragms failed in weeks because the reverse flow put stress on them in ways they weren't designed for. It was a simple mistake, but it cost them dearly in replacement parts and downtime. That's why I always stress these four points. They are not just recommendations; they are requirements for long-term performance. Let's look at each one more closely.

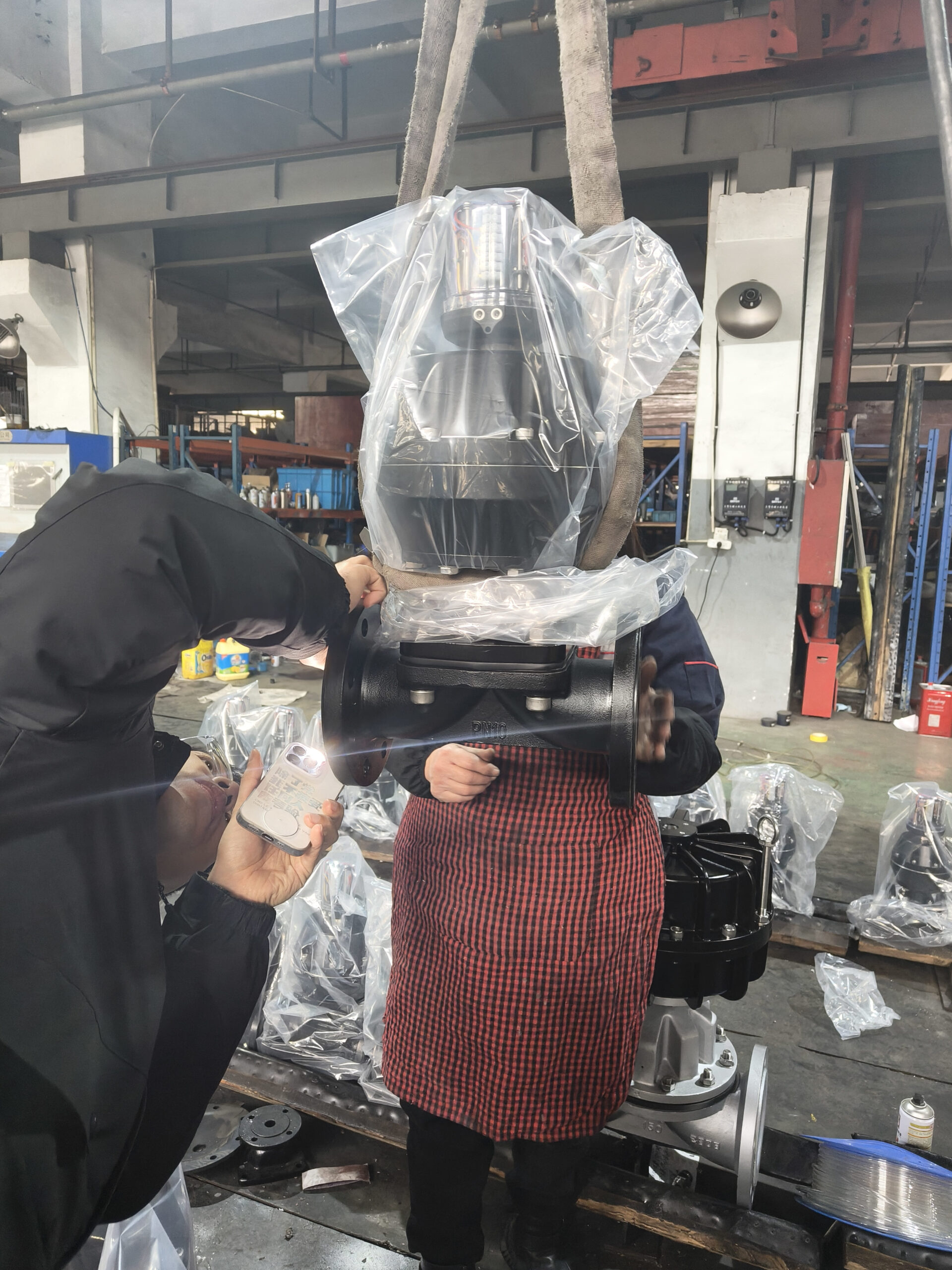

Correct Installation
The first step is always installation. Every diaphragm valve[^1] body has an arrow cast into it. This arrow shows the correct direction of media flow. You must install the valve so your fluid flows in the direction of this arrow. Installing it backward can cause turbulence and put uneven pressure on the diaphragm, drastically shortening its life.
Gentle Operation
When you adjust the valve, turn the handwheel[^5] slowly and smoothly. Quick, jerky movements can create a pressure shock inside the valve. This uneven force can cause tiny cracks to form in the diaphragm, which will grow over time and lead to failure. A gentle hand ensures the diaphragm seats properly and operates without unnecessary stress.

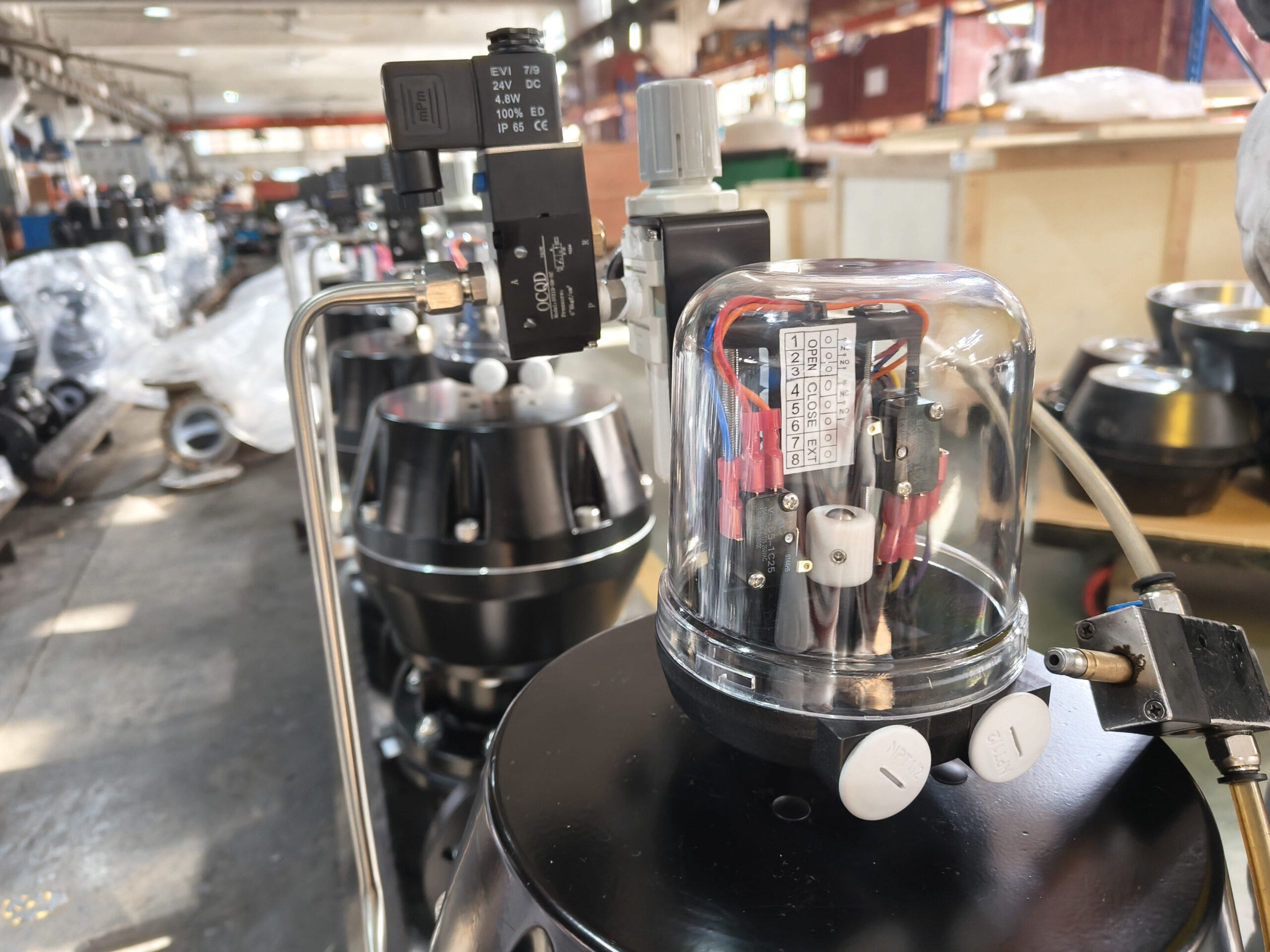

Proactive Maintenance
The diaphragm is the only moving part in contact with the media, and it will eventually wear out. You need to check it regularly. Look for signs of aging, like discoloration, stiffness, or small cracks. If you see any deformation or notice even a minor leak, you must replace the diaphragm immediately. A scheduled inspection program is much cheaper than an emergency shutdown.
Respecting Limits
Every valve is designed for a specific temperature and pressure range. Never operate the valve outside these limits. High temperatures can soften the diaphragm material, while excess pressure can cause it to rupture. This can lead to a dangerous leak of corrosive or hazardous media. Always check the valve's technical data sheet and make sure it matches your system's conditions.
| Rule | Why It's Important | Consequence of Ignoring |
|---|---|---|
| Flow Direction | Ensures diaphragm is supported correctly. | Premature diaphragm failure, reduced performance. |
| Slow Operation | Prevents uneven stress and pressure shock. | Cracks and tears in the diaphragm. |
| Regular Checks | Catches wear before it becomes a failure. | Unexpected leaks and process downtime. |
| Stay in Limits | Guarantees safe and reliable operation. | Diaphragm failure, media leakage, safety hazards[^7]. |

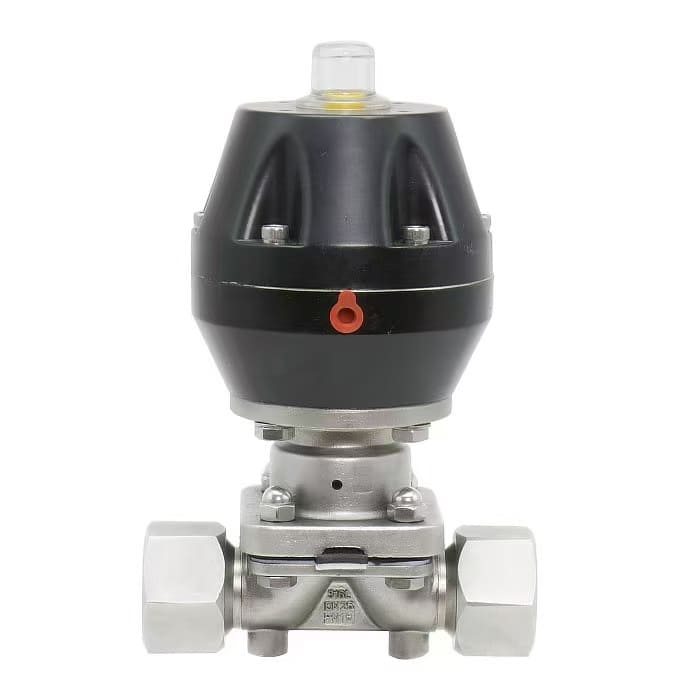

Where Do Diaphragm Valves Perform Best?
Choosing the wrong valve for a corrosive or high-purity fluid can be a disaster. It can lead to dangerous leaks, system contamination, and product spoilage. Diaphragm valves excel in these tough environments.
Diaphragm valves are ideal for applications requiring high purity or excellent corrosion resistance. They are top performers in industries like chemical processing[^8], water treatment[^9], power generation[^10], and pharmaceuticals[^11], where they handle aggressive or sensitive media without contamination or internal corrosion.
The core strength of a diaphragm valve[^1] is its design. The diaphragm acts as a barrier. It completely isolates the fluid from the valve's stem, bonnet, and other internal parts. This has two huge benefits. First, the fluid never touches the operating mechanism, so there's no risk of contamination from lubricants or metal particles. Second, the corrosive media never touches the metal components, preventing the valve itself from being eaten away. This simple, effective design makes it a problem-solver in many industries. We supply many valves to chemical plants, and this isolation feature is exactly why they trust our cast iron and ductile iron body valves even in very corrosive lines.
High-Purity Industries
In sectors like pharmaceuticals[^11], food and beverage, and electronics, preventing contamination is the top priority. The product must remain pure. Diaphragm valves are perfect here because their design ensures the media only touches the valve body lining and the diaphragm itself. There are no hidden crevices or dead spots where bacteria can grow. This makes them easy to clean and sterilize. For example, they are used in process water systems (WFI) and Clean-in-Place (CIP)[^12] setups.
Corrosive & Abrasive Environments
In chemical plants, wastewater treatment[^9] facilities, and power plants, the challenge is different. Here, the fluids are often harsh acids, alkalis, or abrasive slurries[^13]. A standard valve would corrode or clog quickly. Our diaphragm valve[^1]s, with their robust rubber or plastic linings (like EPDM, PTFE, PFA), provide a shield against chemical attack and wear from slurries. The smooth, open flow path of a weir-type diaphragm valve[^1] also helps prevent clogging when handling media with high solids content, like in mining or flue gas desulfurization systems.
| Industry | Common Application | Key Advantage |
|---|---|---|
| Chemical & Petrochemical | Acid and alkali transfer, dosing | Excellent corrosion resistance, leak-free design. |
| Water Treatment | Chemical dosing, sludge control | Handles corrosive chemicals and slurries. |
| Power Plants (FGD) | Limestone and gypsum slurry lines | Resists abrasion and corrosion, prevents clogging. |
| Pharmaceutical & Food | High-purity water, process fluids | Prevents media contamination, easy to clean. |
| Mining & Metallurgy | Ore slurry transport, pickling lines | Superior wear and corrosion resistance. |
Why Do Our Diaphragm Valves Stand Out in These Applications?
Not all diaphragm valve[^1]s are made equal. I've seen it myself. A poor-quality valve can fail quickly, even if it's used in the right application, which costs you time and money. Our manufacturing process ensures superior performance and longevity.
Our diaphragm valve[^1]s stand out due to our advanced manufacturing. We use resin-coated sand casting for flawless valve bodies and mechanically applied linings[^14] for a seamless, smooth finish. This results in greater durability, better performance, and a visually superior product for your brand.
When we started, we looked at what other manufacturers were doing. We saw a lot of valves with rough surfaces, casting imperfections, and poorly applied linings. For B2B clients who are building their own brand, appearance and quality are everything. A procurement manager can tell the quality of a product just by looking at it. So, we decided to invest in better processes from the very beginning. We use all-new molds to ensure a perfect shape, and our focus on details like the lining and casting process makes a visible and functional difference. It’s about building a product that not only works well but also represents the quality of your brand.

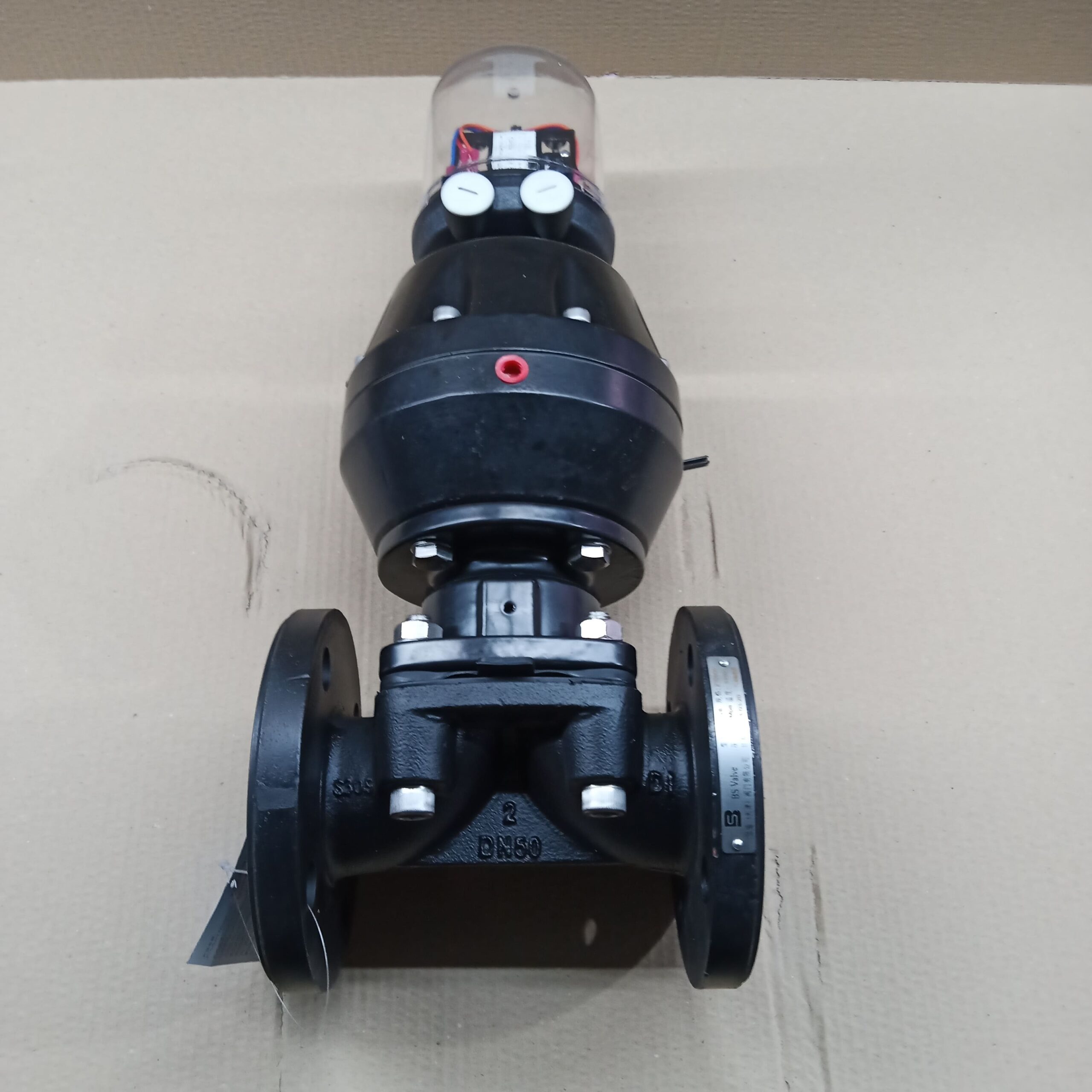

Superior Casting Process
The foundation of any great valve is the body. We use a resin-coated sand casting process for our CI and DI valve bodies. This method produces a much smoother surface finish and far fewer imperfections like sand holes or porosity compared to traditional green sand casting. A flawless body is stronger and provides a better surface for the lining to adhere to, which means greater reliability in the long run.
Advanced Lining Technology
The lining is the valve's first line of defense against corrosion and abrasion. Many manufacturers use a simple manual application method. We use a mechanically applied lining process. This ensures the lining is completely seamless, has a uniform thickness, and is visually perfect. A smooth, seamless lining improves flow characteristics and eliminates potential weak spots where corrosive media could attack the valve body.
A Focus on Aesthetics
We believe a high-performance product should also look the part. Our designs align with international aesthetics. When you or your customers see our valves, the quality is immediately apparent. From the clean casting to the smooth lining and quality finish, it’s a product you can be proud to put your name on.
| Feature | Our Method | Conventional Method | Benefit to You |
|---|---|---|---|
| Casting | Resin-Coated Sand | Green Sand | Flawless, stronger body with no defects. |
| Lining | Mechanically Applied | Manual Application | Seamless, smoother, more reliable protection. |
| Molds | All-New Molds | Older, Worn Molds | Perfect appearance, brand-enhancing quality. |
| Design | International Aesthetics | Basic/Industrial | A professional look that inspires confidence. |
Conclusion
Understanding how to operate diaphragm valve[^1]s and where to use them is key. Following these simple rules ensures your system runs safely and efficiently for a long time.
