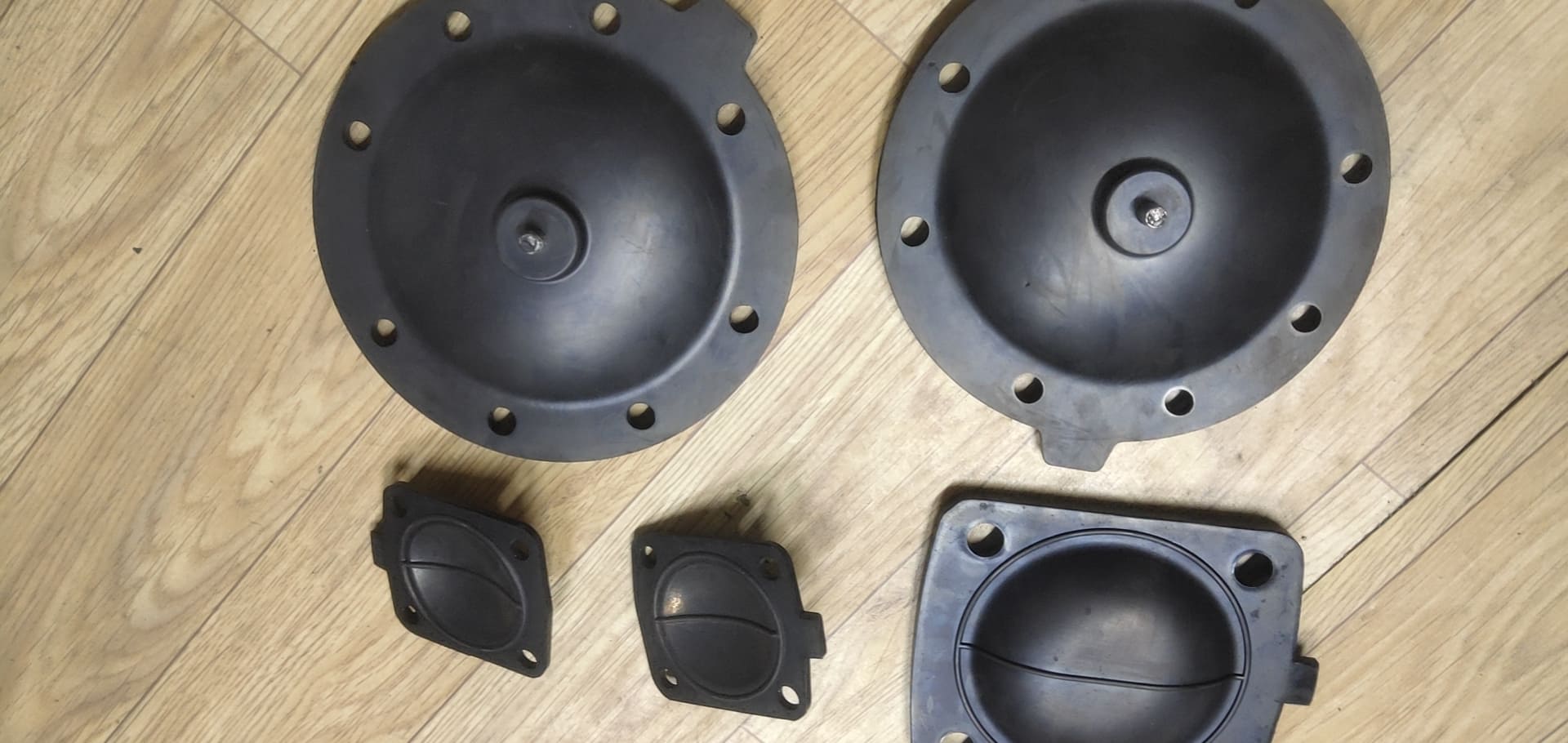

How Do You Choose the Right Diaphragm Material for Industrial Valve Applications?

Choosing the wrong diaphragm can lead to valve failure and costly downtime. This uncertainty can halt your operations. Let's ensure you select the perfect material every time.

To choose the right diaphragm material, you must evaluate chemical compatibility, temperature range, and application needs. EPDM[^1] is great for water-based systems, while PTFE[^2] excels with corrosive chemicals[^3] and high temperatures, ensuring optimal performance and reliability[^4] for your diaphragm valve.

Selecting the right material is a critical step that I've seen many clients struggle with. A poor choice can lead to leaks, contamination, and even complete system shutdown. But it doesn't have to be so complicated. By breaking down the decision into a few key factors, you can confidently make the right choice for your specific needs. Let's look at the first major factor you need to consider.

How Does Chemical Compatibility Affect Your Diaphragm Choice?

A chemical mismatch can corrode your diaphragm, causing dangerous leaks and production stops. The financial and safety risks are huge. Let's match your medium to the right material.

Chemical compatibility is vital. It ensures the diaphragm material doesn't degrade when exposed to your process media. EPDM[^1] works well with water and weak chemicals, while PTFE[^2] is essential for harsh solvents and acids, guaranteeing valve integrity and preventing system failure.

I remember a client who had recurring valve failures in their chemical dosing line. They were using a standard EPDM[^1] diaphragm to handle a highly acidic solution, and the valves were failing every few weeks. The problem was a simple mismatch. EPDM[^1] is a fantastic, versatile material, but it's not designed to withstand aggressive acids. The acid was literally eating away at the diaphragm material, causing it to become brittle and crack. The solution was straightforward once we identified the root cause. We switched them to a valve with a PTFE[^2] diaphragm. PTFE[^2] is almost completely chemically inert, meaning it doesn't react with the vast majority of industrial chemicals. The new valves have been running for over a year with no issues. This is why checking compatibility is the first and most important step.

Key Considerations for Chemical Media

When you're evaluating materials, don't just guess. You need to be precise.

Always refer to a detailed chemical resistance chart and consider not just the primary chemical, but also any trace elements or potential reactions in your process fluid. This diligence upfront prevents very expensive problems later on.

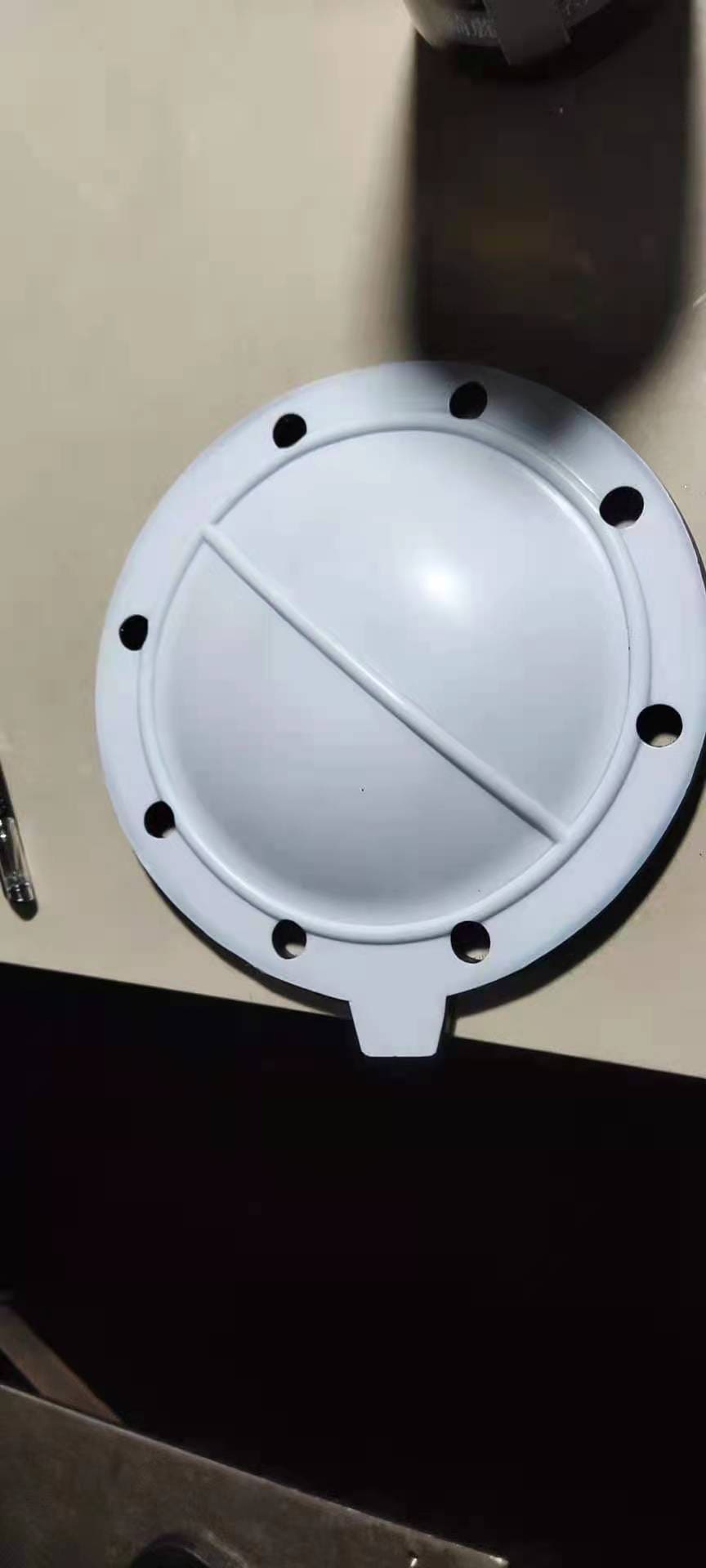

Why is the Operating Temperature Range So Important for Diaphragm Materials?

Extreme temperatures can make a diaphragm brittle or too soft, leading to seal failure. This risk can shut down your entire line. Let's find a material that can handle the heat.

The temperature range directly impacts a diaphragm's performance and lifespan. You need a material that stays stable within your system's operating temperatures. EPDM[^1] is great for moderate heat and steam, while PTFE[^2] excels at both extreme high and low temperatures, preventing failure.

A few years ago, a client at a power plant was having issues in their flue gas desulfurization (FGD) system. The diaphragms in their valves were becoming stiff and cracking prematurely, even though the chemical compatibility seemed correct. After a quick chat, I learned the system experienced frequent temperature spikes that went beyond the diaphragm's rated limit. The material they were using wasn't designed for that thermal stress, causing it to lose its flexibility and fail. We recommended they switch to a diaphragm made from a high-grade EPDM^5[^1], which is specifically formulated for higher temperatures and steam applications. For applications with even wider temperature swings or extreme cold, PTFE[^2] is often the best choice as it maintains its properties from very low to very high temperatures.

Matching Material to Thermal Stress

Temperature affects materials in two main ways: high heat can cause them to soften and degrade, while extreme cold can make them brittle and prone to cracking.

Also, consider thermal cycling—the process of repeated heating and cooling. This can fatigue a material much faster than a constant temperature. If your application involves frequent temperature swings, you need a material like PTFE[^2] that can handle the constant expansion and contraction without breaking down.

How Do You Balance Cost and Maintenance When Choosing a Diaphragm?

Choosing the cheapest option seems smart, but frequent replacement costs and downtime add up. This hidden expense eats into your profits. Let's look at the total cost of ownership.

Balancing cost and maintenance is crucial for long-term value. EPDM[^1] offers a lower upfront cost and is great for general-purpose use. PTFE[^2] costs more initially but its superior durability and resistance reduce maintenance and downtime, often making it cheaper over the valve's life.

I once worked with a small business owner who insisted on the lowest-cost EPDM[^1] diaphragms for all his applications. He wanted to save money on the initial purchase. I understood his position, but I also knew he was running some fairly corrosive chemicals[^3]. As expected, he called me a few months later. He was replacing the diaphragms in his chemical line every two or three months. The cost of the replacement parts, the labor to install them, and most importantly, the lost production during the downtime was adding up fast. I sat down with him and we calculated the total cost of ownership. We found that switching to a PTFE[^2] diaphragm, while costing three times more upfront, would pay for itself in less than a year by completely eliminating those frequent replacements. It's a classic case of "pay now or pay more later."

Calculating Total Cost of Ownership (TCO)

The cheapest part isn't always the most economical solution. Think about the long-term picture.

This doesn't mean PTFE[^2] is always better. For a simple water treatment line at ambient temperature, a standard EPDM[^1] diaphragm is the perfect, most cost-effective choice. The key is to match the material's capability—and its cost—to the demands of the specific application.

Does Your Application Require Regulatory Compliance for the Diaphragm?

Using a non-compliant material in a regulated industry can lead to failed audits and product recalls. The legal and financial consequences are severe. Let's ensure your valves meet all standards.

In industries like food and pharma, compliance is non-negotiable. Materials must meet strict safety standards like FDA or USP Class VI to prevent contamination. Both EPDM[^1] and PTFE[^2] are available in compliant grades, ensuring the integrity of your sensitive processes.

We supply several large distributors who serve the pharmaceutical and food processing industries. For them, the certificate of compliance is just as important as the physical diaphragm itself. I had a potential client who wanted to use our standard industrial-grade valves in a food production line. I had to explain that while the valve would work mechanically, the materials were not certified for food contact. Using them could lead to contamination and a failed health inspection. There is absolutely no room for error in these applications. We instead provided them with valves fitted with FDA-compliant EPDM[^1] diaphragms, complete with full traceability and the necessary certification documents. This gives our clients the peace of mind that they are meeting all legal and safety requirements.

Key Certifications to Look For

If you operate in a regulated industry, you need to know these acronyms.

• FDA (Food and Drug Administration): This is a common requirement in the United States for any material that will come into direct contact with food, beverages, or pharmaceuticals. The material must be made from substances deemed safe for such contact.
• USP Class VI (United States Pharmacopeia): This is one of the most stringent tests for plastics and elastomers. It involves implanting the material in a living subject to test for biological reactivity. It's a must-have for many high-purity pharmaceutical and medical applications.
• 3-A Sanitary Standards: These standards are specific to equipment used in the dairy and food industry, focusing on hygienic design and cleanability to prevent bacterial growth.

When sourcing valves for these applications, don't just ask if the material is "compliant." Ask for the actual certificate for the specific batch you are purchasing. This documentation is your proof of compliance.

Conclusion

By carefully considering chemical compatibility[^6], temperature, cost, and compliance, you can confidently select the perfect diaphragm material. This ensures your valve's long life, safety, and optimal performance.
