Struggling with valve leaks or difficult operation? These issues can halt production and cause safety risks. I'll show you how to quickly diagnose and solve common problems.

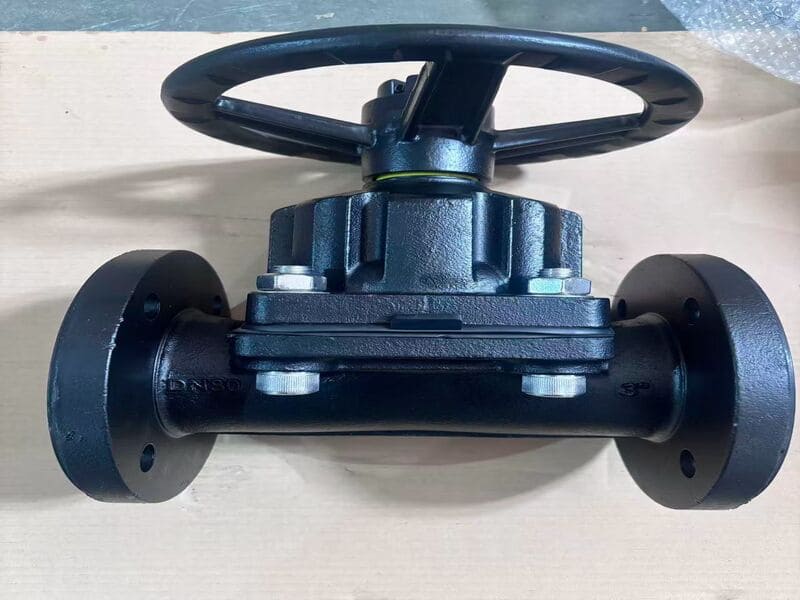

To troubleshoot a straight-through diaphragm valve[^1], first identify the problem: leaks (stem, body, connection), diaphragm rupture[^2], or difficult operation. Common solutions include replacing the diaphragm or gaskets, tightening bolts, removing blockages, and operating within recommended pressure and opening limits[^3].
I've spent years manufacturing and supplying diaphragm valves, and I've seen every issue you can imagine. A simple problem can seem overwhelming if you don't know where to look. But most of the time, the fix is straightforward once you identify the root cause. This guide will walk you through the most common problems we see in the field. By understanding why something is failing, you can apply the right solution and get your system back online fast. Let's dive into the specifics and get your valves working perfectly again.
Why Is Your Diaphragm Valve Leaking and How Can You Stop It?
Seeing drips from your valve? A leak means lost product, potential hazards, and system inefficiency. Don't ignore it. Let's pinpoint the source and fix it for good.
Leaks often come from three places: the stem, the valve body, or the pipe connections. A leaking stem usually means a failed diaphragm. A body leak signals valve damage. Connection leaks are often due to worn gaskets or loose bolts.
When a customer calls me about a leaking valve, the first thing I ask is, "Where exactly is it leaking from?" The location of the leak is the biggest clue to solving the problem. A quick visual inspection is your best first step. Once you know the source, you can apply a targeted solution instead of guessing. I remember a client whose entire chemical dosing line was down because of a tiny drip. They thought the valve was a total loss, but it turned out to be a single loose flange bolt. A quick check with a torque wrench saved them thousands in replacement costs and downtime. Let's break down how to handle each type of leak.
Solving Leaks at the Source
The table below outlines the most common leak locations and how to fix them. Always remember to isolate the valve and depressurize the line before starting any maintenance work. Safety first.
| Leak Location | Potential Cause | How We Recommend Fixing It |
|---|---|---|
| Around the Stem | Damaged Diaphragm | This is the most common cause. The diaphragm is the primary seal. You will need to isolate the valve, remove the bonnet, and replace the diaphragm with a new one. |
| From the Valve Body | Cracked or Damaged Body | This is a serious issue, often from impact, freezing, or extreme over-pressurization. A repair is not a safe option. The entire valve must be replaced to ensure system integrity. |
| At the Pipe Connection | 1. Worn Gasket | Gaskets degrade over time from chemical exposure and pressure. Isolate the valve, unbolt the flanges, replace the old gasket, and re-tighten the bolts in a star pattern for even pressure. |
| 2. Loose Bolts/Nuts | System vibrations can loosen flange bolts. Check the torque on all bolts and tighten them to the manufacturer's specified value. Be careful not to over-tighten, as this can damage the flanges or gasket. | |
| 3. Excessive Fluid Pressure | If the system pressure exceeds the valve's rating, it can force leaks at the weakest point. Verify your operating pressure is within the recommended range for the valve and its components. |
What Causes a Diaphragm to Rupture and How Can You Prevent It?
A ruptured diaphragm brings your process to a sudden stop. This failure can contaminate your media and even damage other equipment. Let's understand why it happens to prevent it.
Diaphragm rupture is mainly caused by over-pressurization, excessive opening, foreign object blockage, or simple aging. Prevention involves operating within specified limits, ensuring the line is clear of debris, and following a regular maintenance schedule.
The diaphragm is the heart of the valve. It's also the component that does the most work, flexing with every cycle. While our diaphragms are built to last, they are not invincible. Understanding the reasons for failure is the best way to maximize their service life. We often see clients extend the life of their valves by 50% just by implementing a simple inspection and replacement schedule. It’s a small investment in maintenance that prevents big headaches from unexpected failures. A ruptured diaphragm isn't just an inconvenience; in a chemical plant, it can be a serious safety incident. Let's look at the main culprits and how to avoid them.
The Four Main Culprits of Diaphragm Failure
Here are the top reasons we see for diaphragm failure in the field:
-
Exceeding Operating Limits: Every diaphragm has a maximum operating pressure and a recommended opening height. Pushing the valve past these limits stretches the material beyond its elastic point. This causes micro-tears that grow over time, leading to a full rupture. It's like over-inflating a tire; eventually, it will fail. Always check the valve's spec sheet and operate within its designated range.
-
Foreign Object Blockage: Straight-through valves are excellent for slurries, but a sharp object like a piece of metal, a rock, or solidified material can get trapped inside. When the valve closes, this object can be pressed into the diaphragm, causing a puncture. We recommend installing a strainer upstream of the valve in applications with a high risk of solid debris.
-
Diaphragm Aging: Diaphragms are consumable parts. The material, whether it's EPDM rubber or PTFE plastic, degrades over time due to chemical exposure, temperature, and mechanical stress. As a manufacturer, we recommend a proactive replacement schedule based on your application's severity to replace the diaphragm before it fails.
-
Improper Installation or Maintenance: Using the wrong tools or failing to clean the valve internals during diaphragm replacement can cause damage. A small nick or crease during installation can become a major failure point down the road.
Is Your Straight-Through Valve Hard to Turn or Operate?
A valve that's stiff or stuck is frustrating and can be a safety hazard. It might indicate a bigger problem. Don't force it with a wrench. Let's find out why.
Difficulty operating a manual valve is usually caused by a damaged or bent stem, or by dirt and grime building up in the bonnet assembly. For automated valves, check the actuator's power supply and mechanical linkage first.
When a valve is hard to operate, the first instinct for many is to grab a bigger wrench. This is the worst thing you can do. It can bend the stem, strip the threads, or break the handwheel, turning a small problem into a big one. The resistance is a signal that something is wrong. I once visited a site where they were about to replace a large, expensive pneumatic valve because it wouldn't open. I asked them to check the air line first. It turned out a different valve upstream was closed, cutting off the air supply. Always check the simple things before assuming the valve itself is broken.
Troubleshooting a Stiff Manual Valve
For a handwheel-operated valve, the problem is almost always mechanical and located in the bonnet.
-
Damaged Valve Stem: The stem connects the handwheel to the diaphragm. If it gets bent from an impact or from someone using a "cheater bar" to force it, it will bind inside the bonnet. You'll feel grinding or see the stem wobble as you turn it. The only solution here is to disassemble the bonnet assembly and replace the bent stem.
-
Debris in the Bonnet: This is very common in dusty or dirty environments like mining operations or chemical plants. Grit and process residue can work their way into the threads between the stem and the bonnet. This creates friction, making the handwheel extremely difficult to turn. The fix is to disassemble the bonnet, thoroughly clean all the threaded components with a wire brush, and apply the correct lubricant before reassembly. This simple cleaning can make a valve feel brand new again.
When an Automated Valve Won't Respond
If you have a pneumatic or electric actuated valve that isn't working, start your troubleshooting outside the valve.
- Check the Power Source: For a pneumatic valve, is the air pressure correct? Is the air line free of moisture or blockages? For an electric valve, is it receiving the correct voltage?
- Check the Signal: Is the control signal (e.g., 4-20mA or a digital signal) reaching the positioner or actuator?
- Inspect the Linkage: Is the mechanical linkage between the actuator and the valve stem secure and aligned?
If all of these external factors are correct, then you can begin to investigate the internal valve components as described above for a manual valve.
Conclusion
By correctly identifying the problem—be it leaks, diaphragm failure, or tough operation—you can apply the right fix. Regular maintenance is the key to reliable, long-lasting valve performance.
[^1]: Understanding the design and function of straight-through diaphragm valves can help you diagnose and fix issues more effectively. [^2]: Preventing diaphragm rupture is crucial for maintaining system integrity and avoiding costly downtime. [^3]: Operating within recommended limits prevents damage and prolongs the life of your valves.
