You need to choose a valve. The wrong choice causes leaks and stops your system. I will show you how to pick the right valve for your exact needs.
Diaphragm valves[^1] use a flexible barrier to control flow. They are perfect for corrosive, slurry, and dirty fluids. Gate valves use a solid metal gate. They work best for on-off control in clean water lines. Your choice depends entirely on your fluid type and system demands.
Many buyers waste money on the wrong valves. I see this happen all the time. Let me explain the real differences so you can avoid these costly mistakes.
What Are the Basics of Diaphragm Valves and Gate Valves?
Valve types confuse many buyers. Picking the wrong design ruins your pipelines. I will break down the basic designs of both valves so you can understand them clearly.
A diaphragm valve presses a flexible rubber sheet against the valve body to stop flow. This isolates the fluid from moving parts. A gate valve lifts and lowers a solid metal plate. It provides a straight path for clean fluids when fully open.
I remember a client from Australia. He ordered standard valves for a dirty water line. The dirt ruined the valves in two months. He lost a lot of money. I told him to look at the basic designs.
Understanding Diaphragm Valve Designs
Diaphragm valves[^1] have two main shapes. We make weir types and straight types. The weir type has a small bump inside. It is great for clean or slightly dirty fluids. The straight type has a flat bottom. It is perfect for heavy dirt, powders, or sludge. The flexible diaphragm creates a physical wall. The fluid never touches the metal stem.
Understanding Gate Valve Designs
Gate valves work differently. They use a flat metal gate. You lift the gate to open the valve. You drop the gate to close it. Gate valves only do two things well. They open fully or close fully. You must not use them to adjust the flow rate. If you leave a gate valve half-open, the fluid shakes the metal gate. The shaking ruins the metal parts very fast.
Quick Comparison Table
| Feature | Diaphragm Valve | Gate Valve |
|---|---|---|
| Flow Control | Good for on/off and some flow control[^2] | Only for full on or full off |
| Moving Parts | Isolated from the fluid | Exposed to the fluid |
| Best Fluid Type | Corrosive, dirty, slurries | Clean water, clean oils |
How Do Diaphragm Valves and Gate Valves Seal Differently?
A bad seal causes dangerous leaks. Leaking chemicals hurt workers and damage equipment. I will explain how each valve seals so you can prevent leaks in your factory.
Diaphragm valves[^1] press a soft rubber sheet against the valve body. This creates a tight, flexible seal. Gate valves[^3] push a hard metal gate against metal seats. This metal-to-metal seal works well only if the fluid is completely clean and the valve is fully closed.
I visited a chemical plant last year. Acid leaked from their valves. The metal seals failed. I showed them how our rubber linings[^4] solve this problem.
The Flexible Seal of Diaphragm Valves
Diaphragm valves[^1] use a direct sealing method. The soft rubber or plastic diaphragm pushes down. It fits perfectly into the shape of the valve body. This flexible seal stops the fluid completely. The fluid never reaches the top part of the valve. The stem stays clean and dry. This design stops leaks perfectly. We use this design a lot in chemical dosing and wastewater treatment[^5].
The Hard Seal of Gate Valves
Gate valves use a very different sealing method. The metal gate slides down between two metal seats. The tight fit stops the water. This works great for clean water. But dirt causes big problems here. If a small rock gets stuck under the metal gate, the valve cannot close. The fluid will leak. Frequent opening and closing also scratch the metal seats.
Sealing Differences Table
| Sealing Feature | Diaphragm Valve | Gate Valve |
|---|---|---|
| Seal Material | Soft rubber or plastic | Hard metal |
| Dirt Handling | Seals around small dirt particles | Fails if dirt gets trapped |
| Leak Path | Very few leak paths | Multiple leak paths near the stem |
Which Valve Is Better for Water, Wastewater, and Chemical Applications?
Choosing valves for harsh chemicals is very hard. The wrong material melts or rusts fast. I will guide you to the right valve for your specific industry application.
Diaphragm valves[^1] are the best choice for wastewater and harsh chemicals. The rubber linings[^4] resist strong acids and stop solid waste. Gate valves are better for main clean water pipes. You should use gate valves only when the fluid is clean and flows steadily.
A distributor in Europe asked me for help. He sold standard valves to a wastewater plant. The valves failed in a week. I told him why.
Valves for Water and Wastewater Treatment
Wastewater plants are tough places. The water carries dirt, human waste, and strong chemicals. Diaphragm valves[^1] handle this easily. We put rubber linings[^4] inside the cast iron bodies. The rubber stops the chemicals from eating the metal. The valves open and close reliably every single day. Gate valves belong in different places. You put gate valves on the big, main clean water pipes. You open them once and leave them alone for months.
Valves for Chemical and Corrosive Fluids
Chemical plants pump strong acids and bad solvents. These fluids eat metal fast. They destroy normal valve stems. Diaphragm valves[^1] solve this. The thick rubber or plastic lining hides all the metal. The fluid only touches the safe plastic. We use materials like PTFE[^6] or EPDM[^7]. Gate valves fail quickly in chemical plants[^8]. The acid eats the moving metal parts. You can only use gate valves for chemicals if you buy very expensive, special metal alloys.
Industry Application Table
| Industry | Best Valve Choice | Why It Works Best |
|---|---|---|
| Wastewater Treatment | Diaphragm Valve | Handles dirty water and frequent use |
| Clean Water Supply | Gate Valve | Low cost for big, clean pipes |
| Chemical Plants | Diaphragm Valve | Plastic linings stop acid damage entirely |
Can These Valves Handle Slurries and Solid Fluids Effectively?
Thick slurries block normal valves. Blocked pipes shut down your whole factory. I will show you how to keep your thick, dirty fluids moving without any stops.
Straight-through diaphragm valves handle slurries perfectly. The flat bottom lets mud and rocks pass through easily. The soft rubber seals tightly around small stones. Standard gate valves fail in slurries. Dirt builds up at the bottom, and the metal gate cannot close properly.
I worked with a mining company last year. They pumped thick rock mud. Their old valves jammed every day. We fixed their problem fast.
How Diaphragm Valves Handle Slurries
Slurries are mixes of liquid and solid pieces. Mining mud and power plant ash are good examples. Normal valves trap this mud. Straight-through diaphragm valves are different. They have a completely clear path. The mud flows straight through like a simple pipe. If a small rock stays in the valve, the soft rubber diaphragm simply wraps around it. The valve still closes tightly. This design stops blockages and reduces wear.
Why Standard Gate Valves Fail with Slurries
Standard gate valves have a groove at the bottom. The metal gate drops into this groove to seal. When you pump slurry, mud and dirt fill this groove quickly. When you try to close the valve, the gate hits the dirt. The valve stays slightly open. High-speed fluid then rushes through the small gap. This fast fluid cuts the metal gate like a knife. This ruins the valve. You need special knife gate valves for slurries, not standard gate valves.
Slurry Handling Table
| Feature | Diaphragm Valve (Straight) | Standard Gate Valve |
|---|---|---|
| Bottom Design | Flat and clear | Has a deep groove |
| Dirt Reaction | Soft rubber wraps around dirt | Dirt blocks the metal gate |
| Wear Resistance | High (rubber absorbs impacts) | Low (metal gets cut by fast dirt) |
Why Choose Our Diaphragm Valves for Your Projects?
Bad suppliers send weak valves late. This ruins your project timeline and budget. I will explain why our factory gives you strong, reliable valves on time.
We are a professional OEM manufacturer of high-quality diaphragm valves. We offer Cast Iron and Ductile Iron bodies with mechanical linings. Our shell molding casting provides smooth surfaces. We deliver large orders fast. One full container takes only 35 to 45 days.
An importer from South America visited our factory. He was tired of bad quality from other places. He saw our production line and placed a big order immediately.
Our Manufacturing Strengths

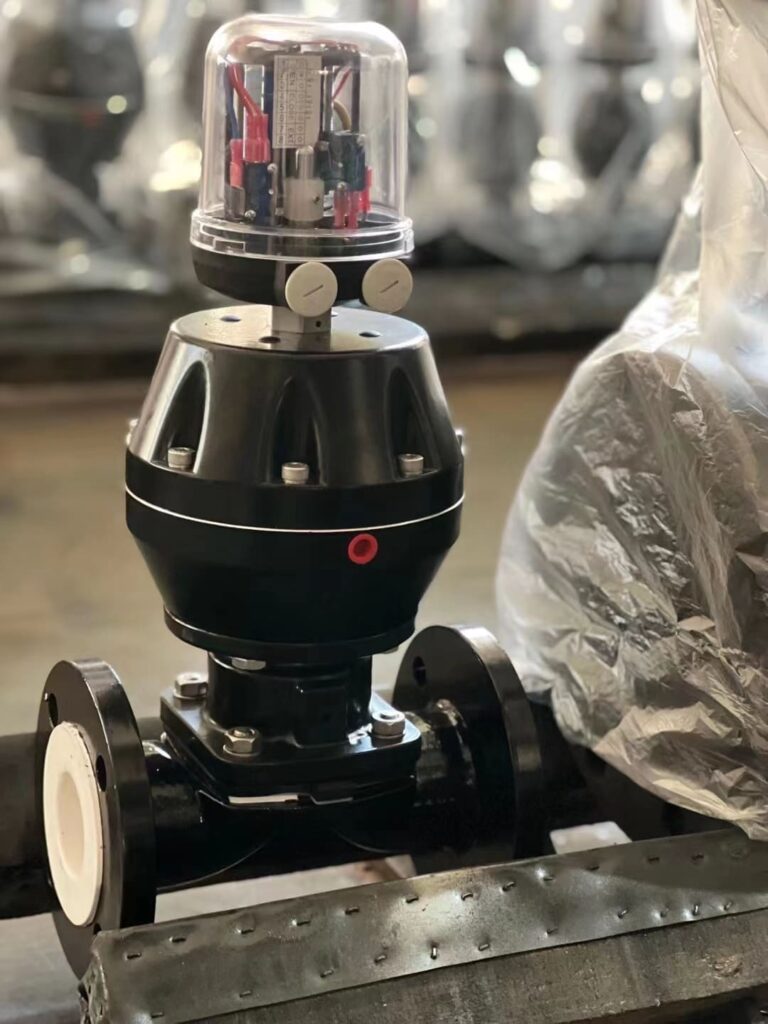

We only focus on the B2B market. We make manual and pneumatic diaphragm valves. We use Cast Iron and Ductile Iron. We line them with plastics like PFA and PTFE[^6]. We also use rubbers like EPDM[^7] and NBR. We use shell molding casting. This makes our valve bodies look beautiful and work perfectly. Our mechanical lining technology makes the inside very smooth. This stops dirt from sticking. We use brand new molds. Our sizes are always exact.
Fast Delivery and OEM Services
We know time is money for you. We finish one full container in 35 to 45 days. This is much faster than many suppliers in India. We do everything for you. We design the valve, make the mold, cast the body, and test the final product. We support wholesale supply and private-label branding. If you want to build your own brand, we are your best partner.
Our Advantage Table
| Advantage Area | What We Offer You |
|---|---|
| Casting Quality | Shell molding for smooth, strong bodies |
| Lining Options | Many plastics and rubbers available |
| Delivery Speed | 35 to 45 days for a full container |
| Business Model | OEM, ODM, wholesale, private label |
What Are the Most Frequently Asked Questions About These Valves?
Unanswered questions cause bad buying decisions. Bad decisions waste your company's money. I will answer the most common questions to help you buy the right valve safely.
The main difference is the sealing method. Diaphragm valves[^1] use a soft barrier for dirty or corrosive fluids[^9]. Gate valves use metal plates for clean water. Diaphragm valves[^1] handle slurries well. Gate valves[^3] should never control flow rates. Diaphragm valves[^1] cost less to maintain in harsh conditions.
I get emails every day from buyers all over the world. They ask similar questions. I want to share these answers with you right now.
Flow Control and Slurry Questions
Many people ask if gate valves can control flow. The answer is always no. You must only use gate valves for full on or full off. If you need flow control[^2], use a diaphragm valve. People also ask about slurries. Straight-through diaphragm valves are amazing for slurries. They let solids pass easily without any blocks.
Maintenance and Hygiene Questions
Buyers ask about maintenance costs. In harsh chemical or dirty water lines, diaphragm valves save you money. You only need to change the cheap rubber diaphragm. The metal body stays safe. Gate valves cost more to fix when chemicals eat the metal. People also ask why food and medicine plants use diaphragm valves. They use them because the smooth inside has no hidden spots. Bacteria cannot hide. The valves are very easy to wash and clean.
FAQ Summary Table
| Common Question | Clear Answer |
|---|---|
| Can gate valves control flow? | No. Only use them fully open or fully closed. |
| Do diaphragm valves handle mud? | Yes. Straight types handle mud perfectly. |
| Which valve is easier to clean? | Diaphragm valves[^1] are much easier to clean completely. |
Conclusion
Diaphragm valves[^1] are perfect for harsh chemicals and slurries. Gate valves work best for clean water isolation. Choose the right valve to save money and keep your pipelines safe.
