Struggling with diaphragm failures[^1] in hot or oily applications? This leads to costly downtime and safety hazards. Understanding FKM diaphragms[^2] is the key to ensuring your valves perform reliably.
FKM diaphragms[^2] excel in high-temperature and oil-containing media due to their superior chemical stability[^3]. They maintain integrity where materials like EPDM would fail, making them ideal for petrochemical and certain solvent applications. However, they are not suitable for strong alkaline environments[^4].
So, you know FKM is a top performer for heat and oil. But what does that really mean for your day-to-day operations and the longevity of your equipment? It's not just about avoiding a complete failure; it's about maintaining efficiency and safety over the long term. Let's break down exactly where FKM shines and, just as importantly, where you need to be cautious about using it.

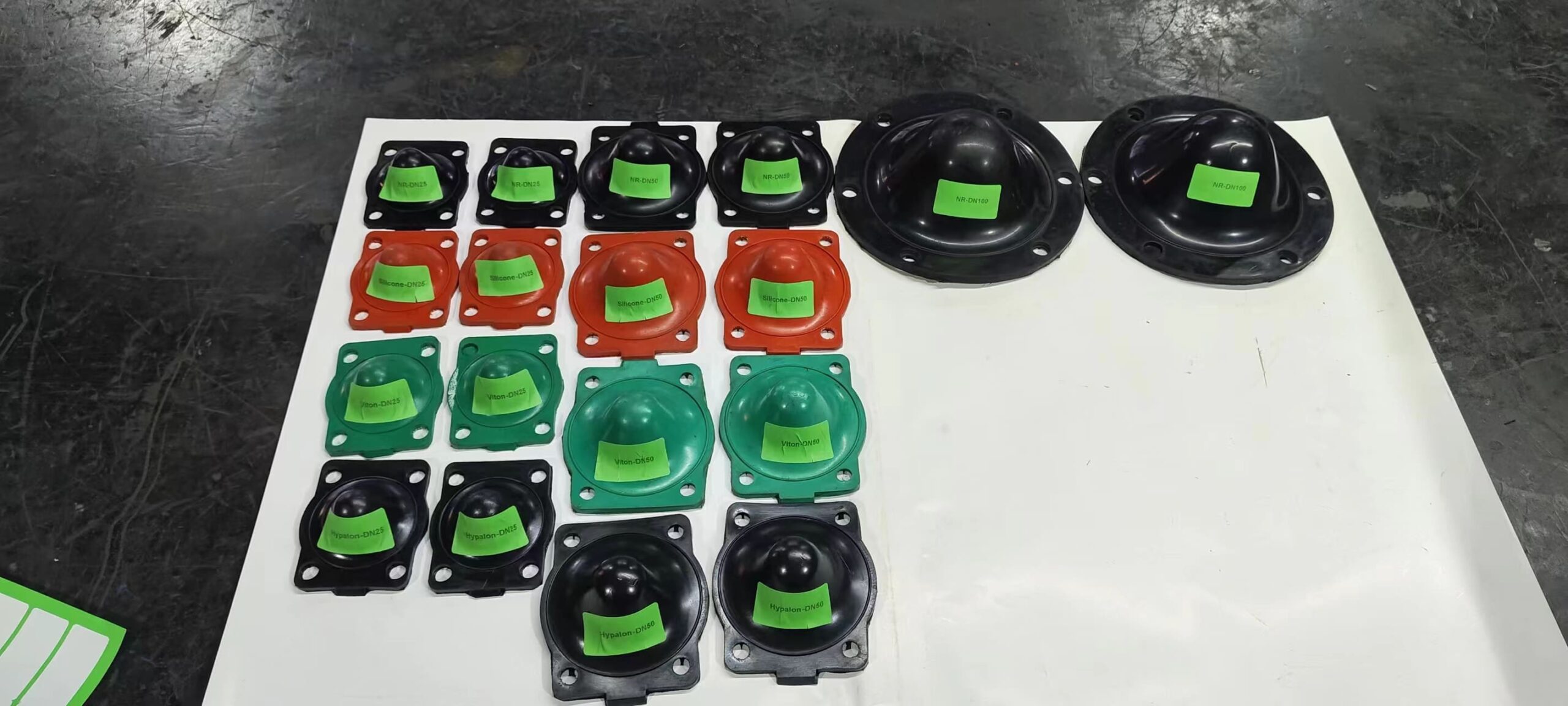

How does FKM handle high temperatures better than other elastomers?
Are your standard diaphragms degrading and becoming brittle under intense heat? This causes unexpected leaks and brings your production to a halt. FKM's unique chemical structure provides the thermal stability[^5] you need.
FKM, a fluoroelastomer, contains carbon-fluorine bonds[^6] that are incredibly strong. This structure allows it to resist thermal degradation at continuous temperatures up to 200°C (392°F). This far exceeds the limits of EPDM or NBR, ensuring a reliable seal under extreme heat.
When we talk about high-temperature performance, it's about more than just a material not melting. It's about maintaining its core mechanical properties. An elastomer needs to stay flexible and strong to create a tight seal. FKM does this exceptionally well. I remember a client who ran a chemical processing plant. They were using EPDM diaphragms for a hot process line and had to replace them every few weeks. The constant heat was making the EPDM hard and brittle, causing leaks. After we helped them switch to our valves with FKM diaphragms[^2], the service life extended to over a year. This simple change saved them a huge amount in maintenance costs and downtime.
Key Performance Metrics at High Temperatures
- Tensile Strength: FKM retains its strength, so it doesn't tear under pressure, even when hot.
- Elasticity: It remains flexible, allowing it to seal perfectly against the valve weir time after time.
- Compression Set: It resists permanent deformation, meaning it springs back into shape after being compressed, preventing leaks.
Here is a simple comparison:
| Elastomer | Typical Max. Continuous Temperature | Notes |
|---|---|---|
| FKM | 200°C (392°F) | Excellent for heat, oils, and chemicals |
| EPDM | 150°C (302°F) | Good for water and steam, poor with oils |
| NBR | 100°C (212°F) | Good for oils, but lower heat resistance |
This shows why, for any application pushing past 150°C, FKM becomes the clear and necessary choice.
Why is FKM the right choice for oil-based chemical media?
Do you find that oil and solvents make your standard rubber diaphragms swell up and weaken? This compromises the seal integrity and can lead to dangerous leaks of flammable or hazardous fluids.
FKM diaphragms[^2] are highly resistant to swelling and chemical attack from oils, fuels, and many non-polar solvents. Their chemical makeup prevents these fluids from breaking down the material, ensuring a long-lasting, reliable seal in petrochemical, fuel handling, and solvent-based processes.
The science behind this is quite simple. Many common elastomers like EPDM have a chemical structure that readily absorbs oils and hydrocarbon-based fluids. This absorption causes the material to swell, soften, and lose its ability to seal. FKM, on the other hand, is a non-polar fluoroelastomer. This means it does not attract or absorb non-polar liquids like oil and fuel. It effectively repels them, maintaining its original size, shape, and strength.
We worked with a distributor whose customer was having constant trouble with valves in a fuel blending facility[^7]. Their NBR diaphragms were failing all the time. While NBR is known for oil resistance, the specific additives and high temperatures in their process were too much for it. We supplied them with our diaphragm valves equipped with FKM diaphragms[^2]. The problem completely disappeared. It's a classic case of matching the material to the media.
Common Applications for FKM
- Petrochemical Processing: Handling crude oil derivatives, fuels, and hydrocarbon solvents.
- Fuel Transfer Lines: In systems for gasoline, diesel, and jet fuel.
- Automotive and Aerospace: For fuel and hydraulic fluid systems.
- Chemical Manufacturing: In processes involving certain organic solvents.
Here’s a quick compatibility guide:
| Media Type | FKM Compatibility | EPDM Compatibility |
|---|---|---|
| Mineral Oils & Greases | Excellent | Poor |
| Gasoline & Fuels | Excellent | Poor |
| Aromatic Hydrocarbons | Excellent | Poor |
| Water & Steam | Good | Excellent |
For any application involving oils, fuels, or similar hydrocarbons, FKM is almost always my first recommendation for reliable, long-term performance.
When should you avoid using an FKM diaphragm?
You might think FKM is a perfect, indestructible solution for every tough job. But using it in the wrong chemical environment can cause it to fail even faster than a standard rubber.
Avoid using FKM diaphragms[^2] in applications with strong alkaline solutions, steam, ketones[^8] (like acetone), and certain organic acids. These chemicals aggressively attack the fluoroelastomer's chemical bonds, causing it to lose its sealing properties and fail prematurely. Always verify chemical compatibility[^9] first.
No single material is a silver bullet for every application. This is something I always stress to my clients. FKM's strength comes from its carbon-fluorine bonds[^6], but certain chemicals can break these bonds down. Strong bases, like sodium hydroxide (caustic soda), can chemically attack the FKM polymer in a process called dehydrofluorination[^10]. This makes the diaphragm brittle and causes it to crack and leak. Similarly, polar solvents like ketones[^8] and certain esters can cause significant swelling and degradation, destroying the material's integrity.
I remember an inquiry for a valve to handle a hot caustic solution. The customer initially requested FKM because of the high temperature. I had to explain that while FKM could handle the heat, the caustic chemical would destroy it in a matter of days. It was a critical safety issue. We recommended a PTFE-lined diaphragm valve[^11] instead, which offers near-universal chemical resistance. This was the correct and safe choice for their process. It’s our job as a supplier to ensure you get the right product for the job, not just the one you ask for.
Do Not Use FKM With:
- Strong Bases: Sodium Hydroxide, Potassium Hydroxide
- Steam and Hot Water: EPDM is a much better choice here.
- Ketones: Acetone, Methyl Ethyl Ketone (MEK)
- Amines: Ammonia and other amine compounds.
- Low Molecular Weight Esters: Methyl Acetate
Always consult a chemical compatibility chart chart or, even better, talk to us. We can help you select the perfect material for your specific media, temperature, and pressure requirements.
Conclusion
FKM is an excellent choice for high-heat and oily media, offering unmatched reliability. However, it fails in strong alkalis and with steam. Always match your diaphragm to the application for safe performance.
